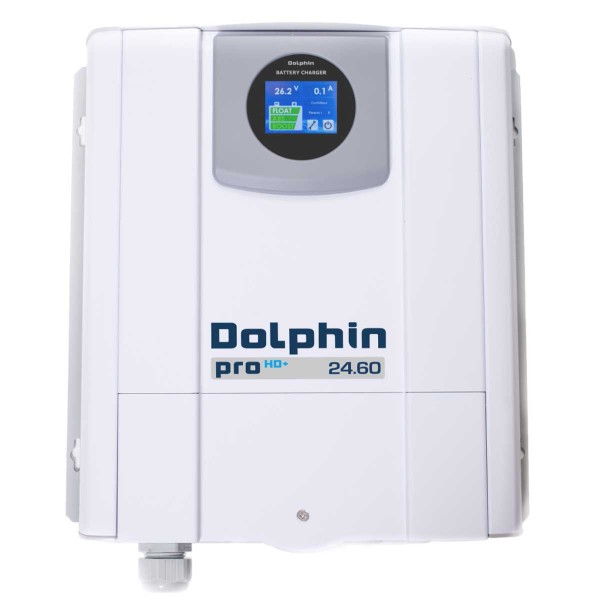

Pro HD+ battery charger
Ref.
399175
1 reviews
The Dolphin Pro HD+ 24V-60A - 115/230V battery charger is designed for use as DC chargers and/or power supplies for professional marine applications, commercial vessels, offshore platforms and other harsh industrial applications.
Read more Features
€1,199.92
Public price
€1,375.00
399175
Data sheet
- Amperage
- 40A, 60A, 100A
- Number of outputs
- 3

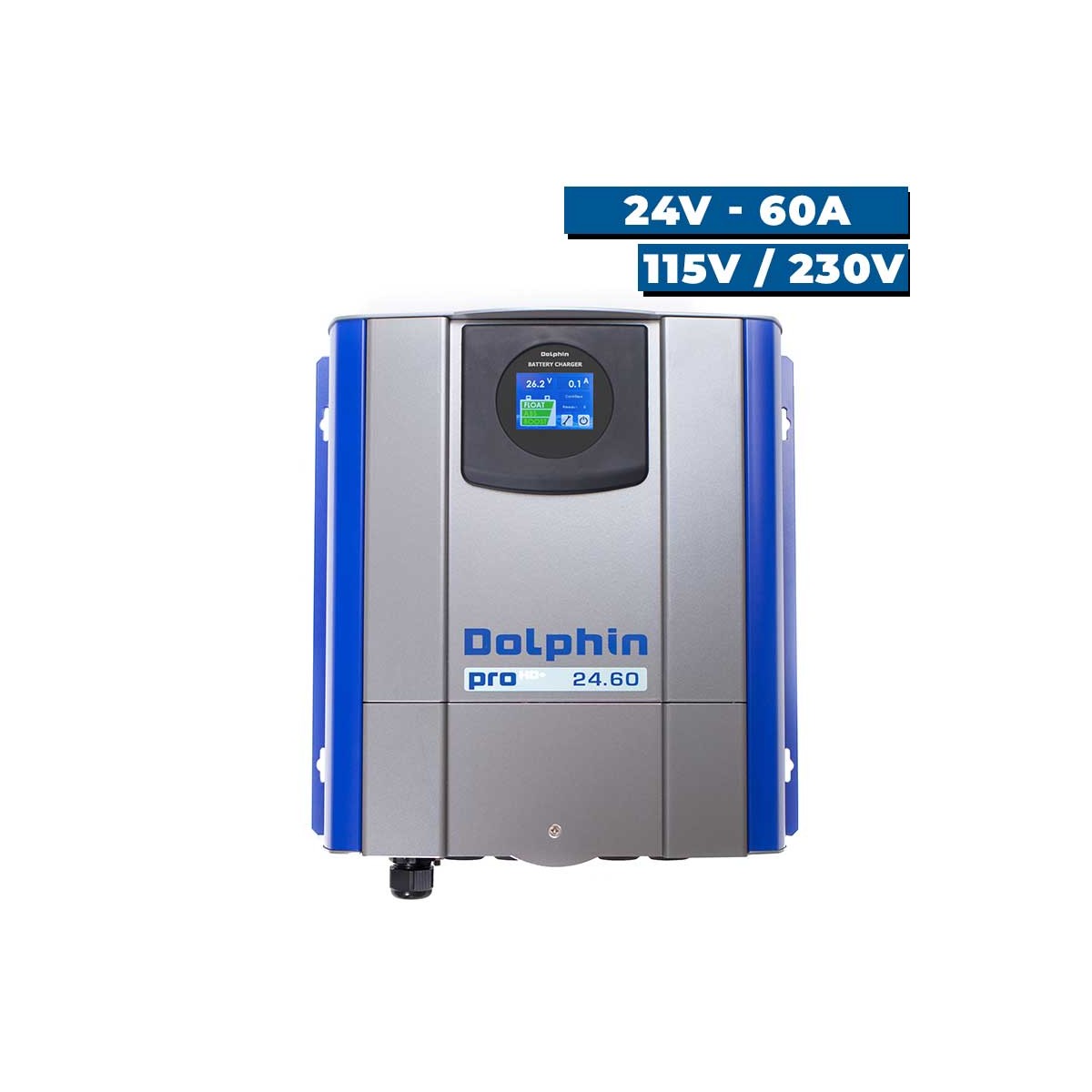

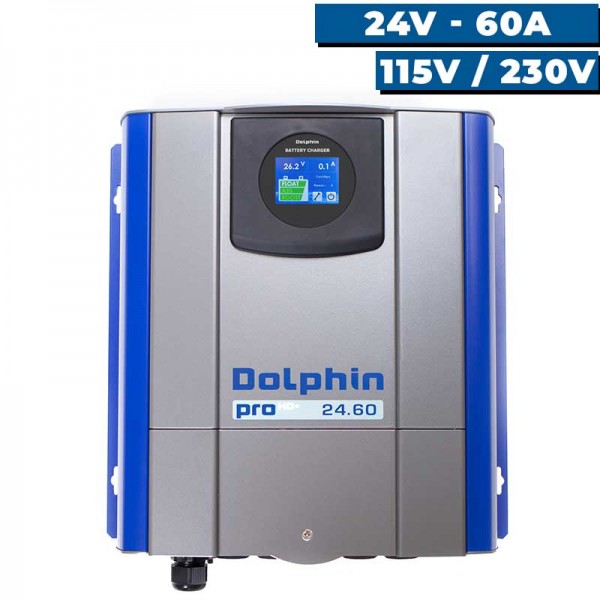

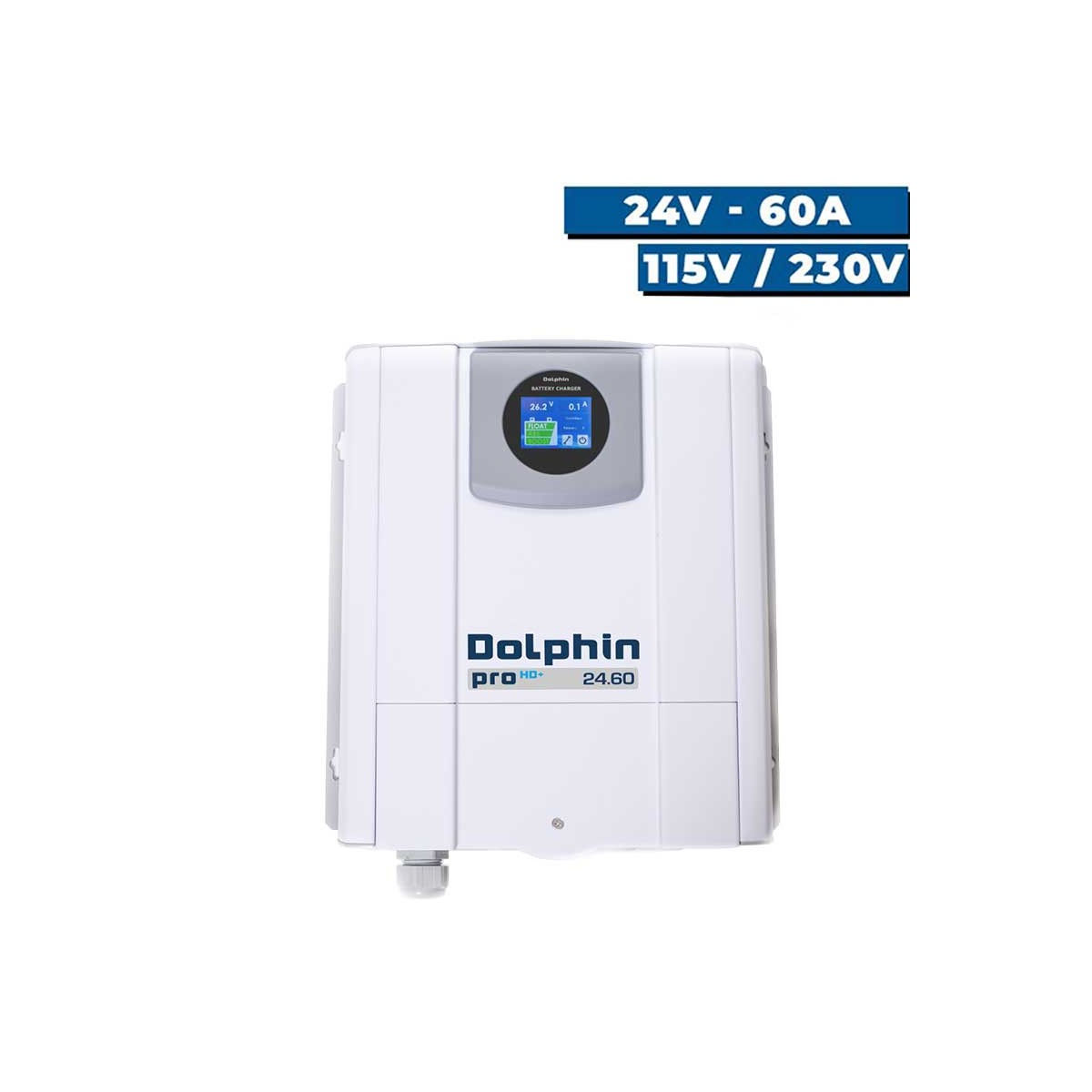

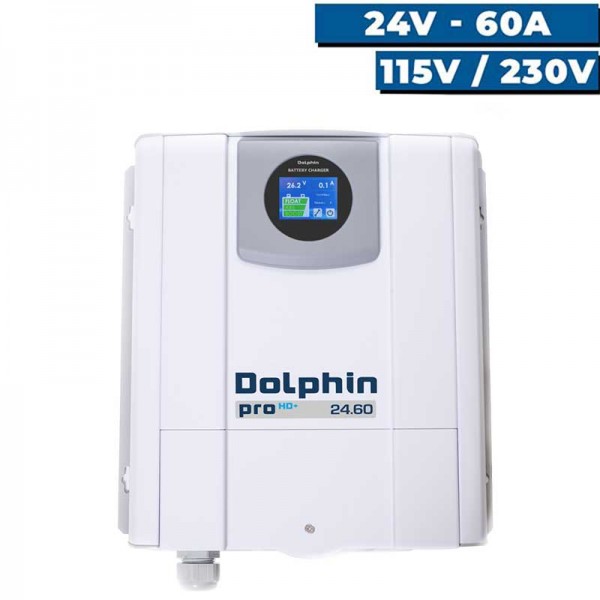

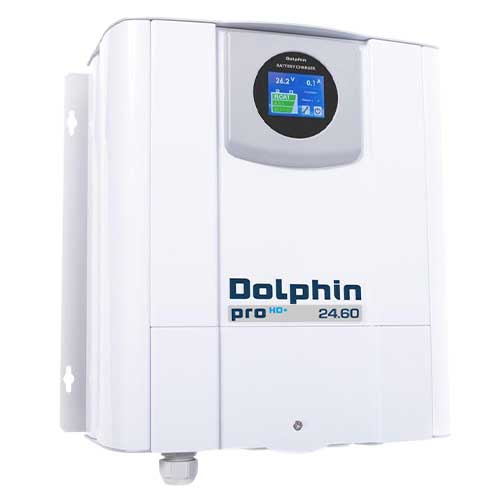

DOLPHIN - BATTERY CHARGER - PRO SERIES HD+ 24V-60A - 115/230V
The Dolphin Pro HD+24V-60A - 115/230V battery charger is the optimum solution for oceanographic and research vessels, workboats, supply vessels, tugs, cranes and barges, high-speed passenger transport, small cruise ships, fishing boats, as well as patrol boats guarding-coasts.
Key standard features include multi-profile intelligent battery charging, high efficiency, temperature compensation via external sensor, front panel LED touchscreen interface, CANbus communication port and output alarm contacts.
This Dolphin Pro HD+ battery charger has DNV marine type approval-GL, guaranteeing perfect behavior against extreme and constant vibration and shock .
|
|

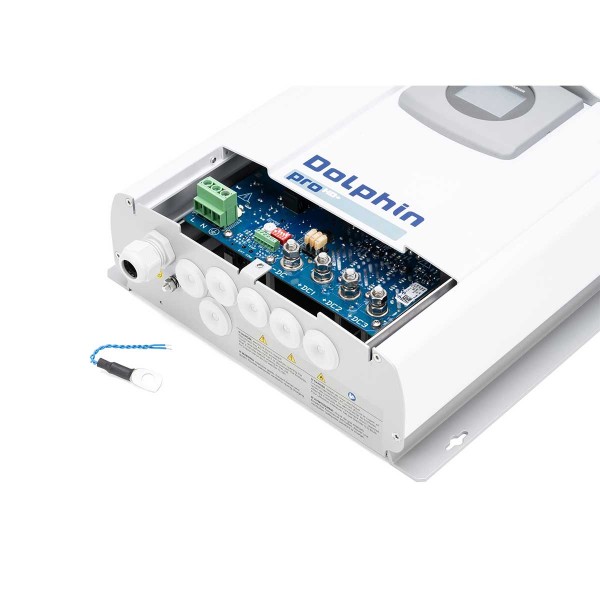

A SUPER-CONNECTED CHARGERA true "open" communicator, with a CAN BUS J1939 interface as standard. The charger is NMEA2000 compatible as an option. It can be connected to any modern on-board system. With its marinized circuit boards, the Dolphin Pro HD+ charger is specially designed for intensive use in harsh environments. It is fitted with a solid, high-quality 100% aluminum casing. It features 3 outputs (full power) and different charging profiles :
|

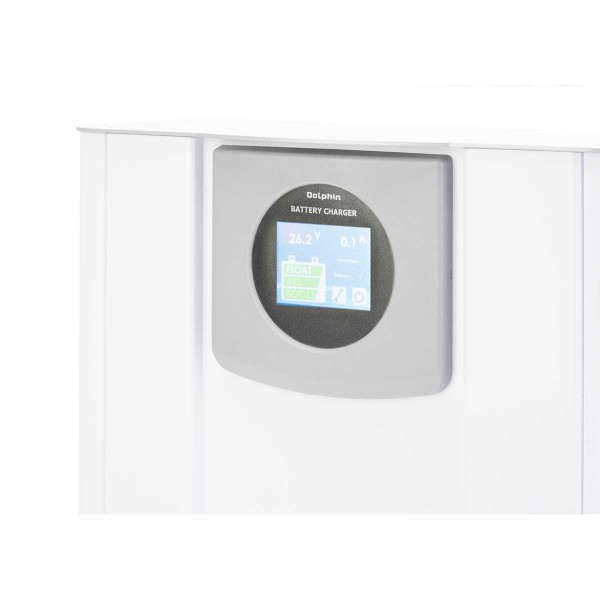

INTERACTIVE SUPERVISIONThe Dolphin Pro HD+ charger features Touchview, an innovative external touchscreen control panel. This touchscreen (man-machine interface, HMI) lets you easily control your charger and batteries in terms of charging current, chosen charging curve, charging phase (boost/absorption/float) and maximum power output at any time. Its two built-in alarm relays will alert you to the following problems: battery or electronics temperature anomaly; charger supply voltage anomaly; fuse anomaly; charger output voltage anomaly and CAN Bus anomaly. This exclusive HMI interface offers a choice of 5 languages (English, French, Italian, Spanish and German). |
 |
Charger specifications Dolphin Pro HD+
| Models | 24V-60A - 115V/230V | 24V-100A - 230V |
| Dimensions (W x D x H in mm) | 346 x 128 x 358 mm | 346 x 196 x 358 |
| Input voltage | 115V / 230V | 230V |
| Max. input current | 15A / 9A | 17A |
| Frequency | 50/60 hz | |
| Efficiency |
87% | |
| Number of outputs | 3 isolated (Full Power) | |
| Max. output current | 60A | 100A |
| Studs | 4x 8 mm (M8) | |
| Display | 2.4" TFT touchscreen | |
| Ventilation | Forced by thermostated fan | |
| Protection |
|
|
| Weight | 6 kg | 11.5 kg |
| Protection class | IP22 | |
| Temperature | -10°C to +55°C | |
| Storage | -20°C to +65°C | |
| Humidity | 10% to 95% (non-condensing) | |
KEY FEATURES :
|
BOX CONTENTS :
|
