- -€80.48
KI603
Data sheet
- Product type
- Car radio
- Car radio power
- 150w
- Features
- AM / FM / Bluetooth / AUX / USB, NMEA 2000, Bluetooth function, Bluetooth, Auxiliary, NMEA compatible
- Number of channels
- 6
- Multi zone
- 2 zones

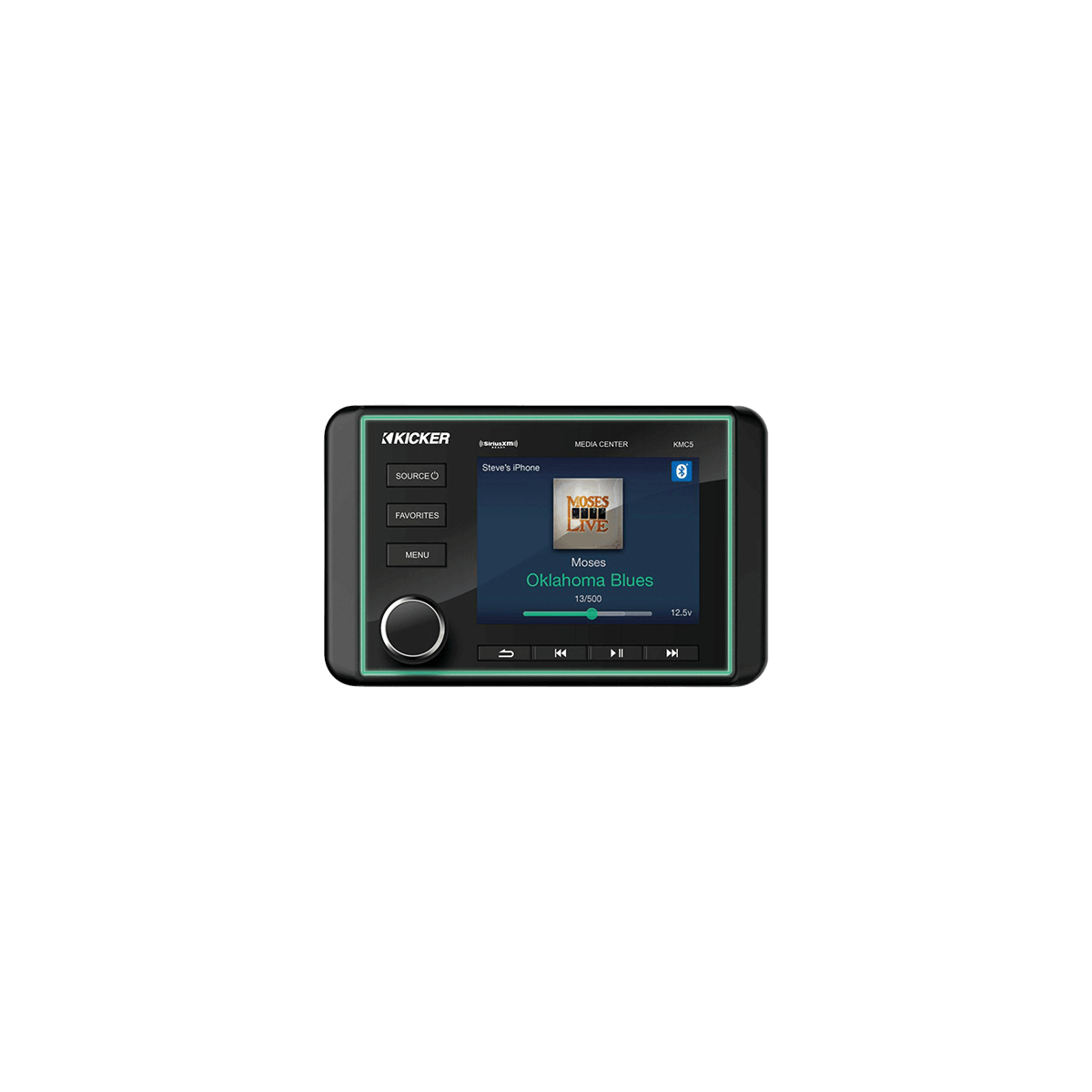

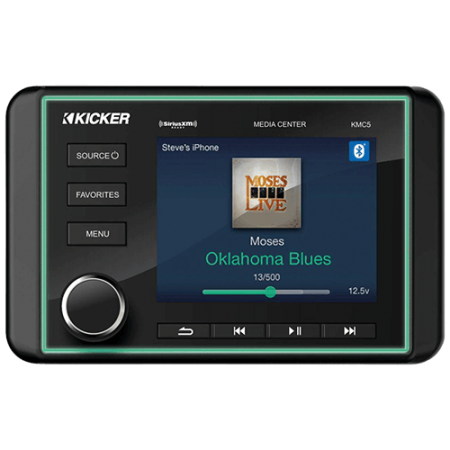

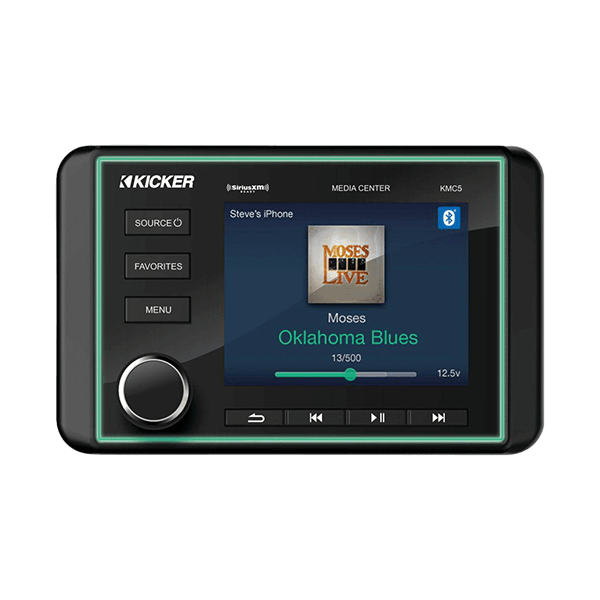

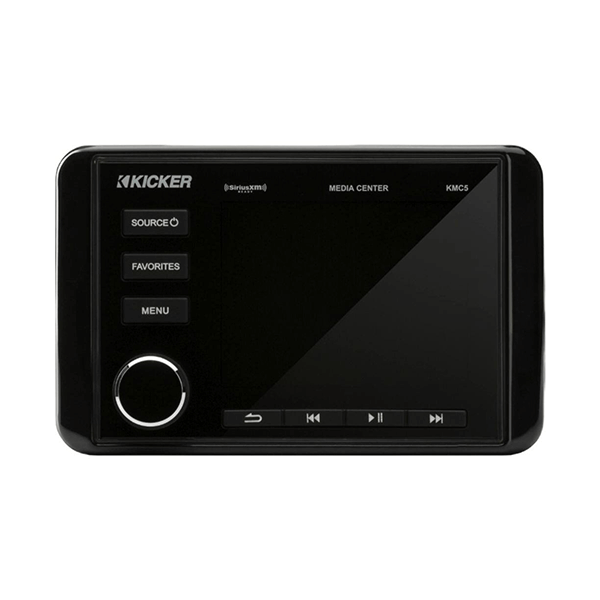

Easy-to-read 3.5" color LCD display, thumbwheel to control up to two audio zones on the boat, power of over 150 watts.
Receiver with video function, compatible with on-board camera.
Audio source: USB, AM/FM, Bluetooth, RCA auxiliary input...
NMEA 2000-certified product.
Technical specifications :
- Waterproof design: IP66
- Output power:
- 6x 25W RMS with HP 4 ohms (including 2 channels for zone 2)
- 6x 40W RMS with HP 2 ohms (including 2 channels for zone 2) - Display type: 3'' color LCD anti-glare
- RGB LED trim: powered by connector
- Day/night mode: controlled by pilot wire
- External RCA video source display mode: controlled by pilot wire
- Low voltage alert: if powered
- Zone 2 sound level : Zone 1 follower or independent
- Frequency response: 20-20k Hz
- Signal-to-noise ratio : 108 dB
- Line output level: 4 V
- AUX input sensitivity: 500 mV
- 4 RCA outputs: for external amplifiers (2 zones + Sub)
- USB : Plays MP3, WMA, FLAC16, WAV16 files
- USB power supply for smartphone charging: 5V, 1A
- Bluetooth range: approx. 10m
- Height : 8.89cm
- Width : 13.97cm
- Depth : 14.9cm
- Mounting depth: 18cm
- Standard cut-out: 3'' (7.62cm)

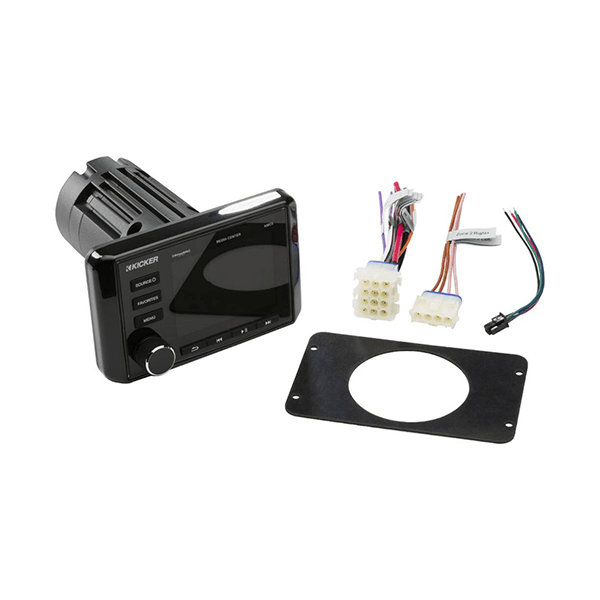

- Included: Main unit / Installation accessories / Instruction manual / Black and chrome bezels / Main harness, zone 2 harness, RGB harness / UV-resistant rubber screen cover / 4 stainless steel screws / Sealing gasket
- nMEA2000 communication port : remote logging on screen Navico compatible
- Option: Wired remote control: KI610 or with display: KI611
