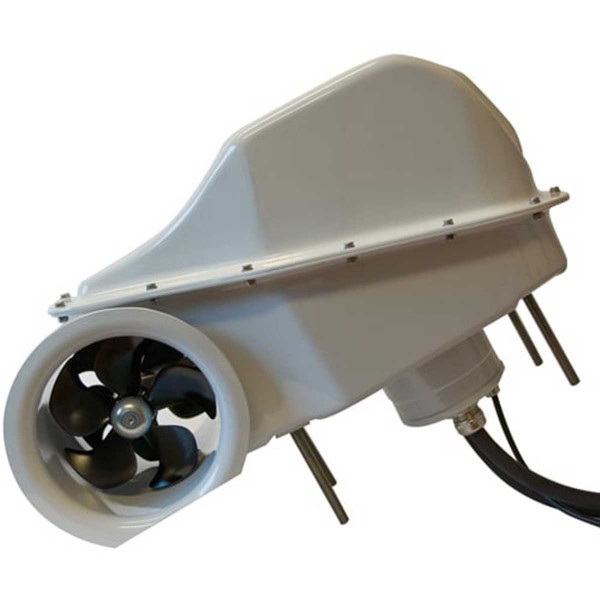

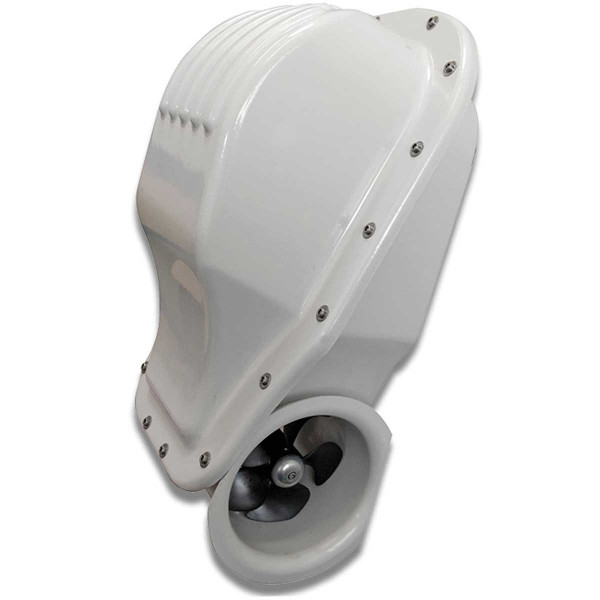

External stern thruster SX80 / Ø185 mm

Ref. PR800

The Sleipner Side-Power SX80 stern thruster features simplified transom mounting. Available in 12V or 24V, it delivers 80 to 96 kg of thrust.

Thanks to its ignition protection, you get a reliable thruster for boats equipped with petrol engines measuring between 10 and 15 m.

Configuration

Voltage :

12V

€3,716.58 Tax included

-10%

€4,130.75

Pay in installments

3x 4x 10x 12x 24x 60x

or pay in

Quantity

IN SUPPLIER STOCK

Fast delivery

3716 loyalty points Earn €37.16 in rewards

Experts’ advice Contact us from 8 AM to 5 PM

Trustpilot reviews 94% satisfaction based on 3,800 reviews

Reseller Premium

Payment 100% secure

Reference PR800

Data sheet

Voltage: 12V, 24V
Boat size: From 10 to 20 m
Max. thrust (in kg): 96 kg
Power (kW): 4.4 kW

Description
Attachments
Accessories
Customer Reviews
Questions / Answers
Products also ordered

Description

Sleipner - Side-Power - External stern thruster SX80 / Ø185 mm

Designed with a focus on performance, reliability, safety and ease of use, this compact Sleipner Side-Power SX80 electric thruster is intended for boats up to 15 metres and provides 80 to 96 kg of thrust.

It features various protection systems, including automatic shutdown of the control after use, thermal protection integrated into the motor, reverse thrust delay protection and protection against prolonged operation: maximum operating time of 3 min, with on/off control.

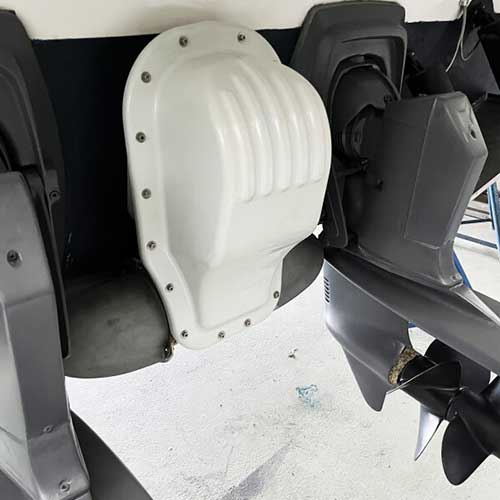

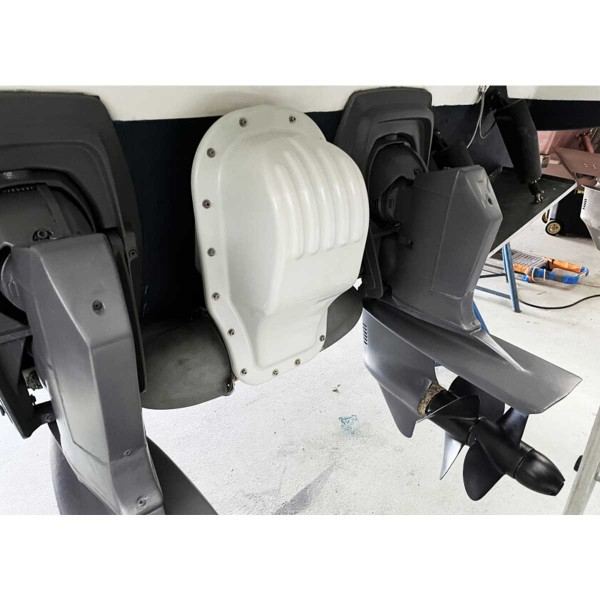

The SX80 uses special cowls to ensure reliable performance by directing the water flow beyond the stern drive units. Particularly suitable for twin-engine installations, it is recommended to use tunnel deflectors when the draught is limited to redirect the water flow.


	Thruster design IPC control system (Intelligent Power Control) : Improves thruster reliability and safety. If the relay becomes stuck during operation, the thruster is automatically stopped. Sealed gearleg: sealed gearleg supplied pre-filled with oil. The propeller shaft is sealed with a ceramic/graphite mechanical seal for maximum reliability. Twin Propeller : twin-propeller system providing greater thrust than a single-propeller system with the same tunnel diameter. Q-PROP : 5-blade propeller with an asymmetrical skewed profile. Provides approximately 5% more thrust while reducing noise levels. Ignition protection : complies with ISO 8846 for safe operation in hazardous environments where petrol vapours or other flammable gases may be present. Analogue : analogue signal cables with colour-coded Plug & Play connectors matching the wiring diagrams to ensure correct installation.

Thruster specifications Model: SX80/185T Voltage: 12V (SX80/185T-12V) or 24V (SX80/185T-24V) Thrust at 10.5/21V: 80 - 96 kg Tunnel Ø: 185 mm Power at 10.5/21V: 4.4kW / 5.9 hp Weight: 26 kg Minimum battery capacity in CCA: 12V (DIN - SAE): 550 - 1045 / 24V (DIN - SAE): 300 -570 Comptoir Nautique nevertheless recommends selecting a thruster with a higher power rating than the minimum required for the size of your boat. The data is provided for guidance only and must take into account the specific characteristics of the boat (weight, construction materials, hull type, windage, current and wind in your navigation area). If you have any questions, please feel free to contact us by email (contact@comptoirnautique.com). For thruster installation, we recommend using a professional!
