Lecomble & schmitt

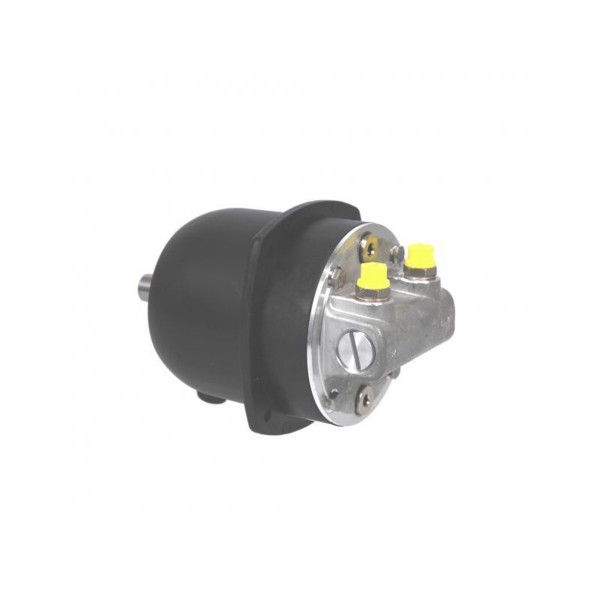

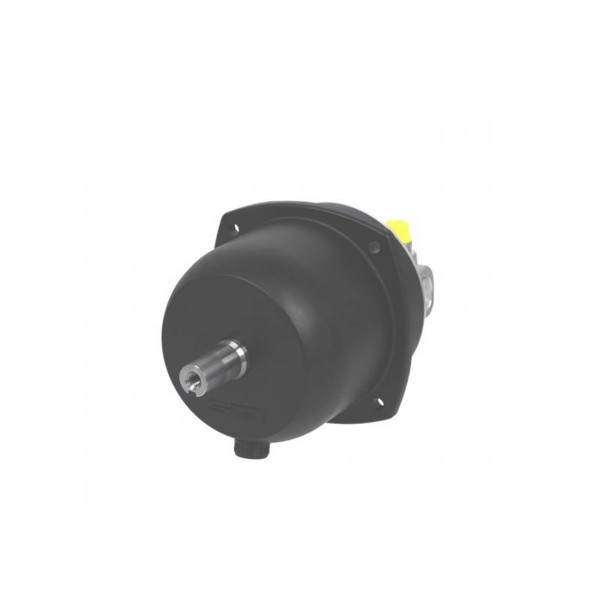

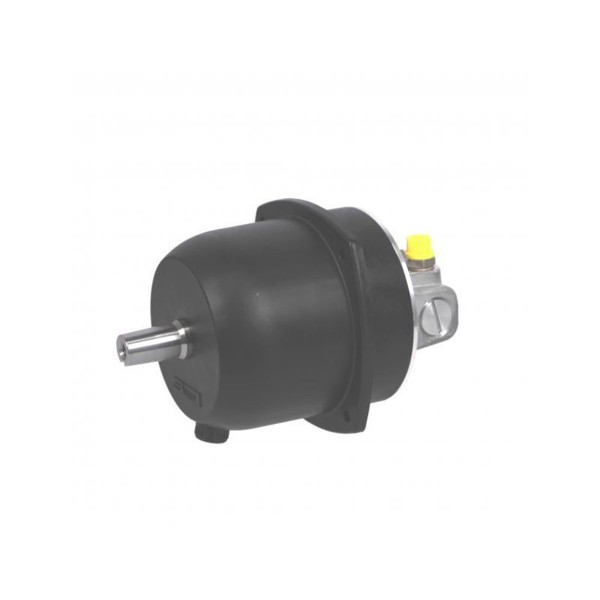

-20 cc/rev outboard hydraulic pump

Ref. LS804

-The 20 HB CAR outboard hydraulic pump is designed for your boat’s hydraulic steering system. Equipped with check valves and return-s, it prevents unintended movement of the cylinder. Its 20 HB size, recommended flywheel diameter of 400 mm, and simple maintenance make it a reliable solution for precise, smooth, and durable steering on board.

Configuration
Version :
20 HB CAR
€383.25 Tax included
-10%
€429.97
Pay in installments
3x 4x 10x 12x 24x 60x
Quantity
IN SUPPLIER STOCK
Fast delivery learn more
383 loyalty points Earn €3.83 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
LS804

Data sheet

Product type
Pompe hydraulique
Description

-LECOMBLE & SCHMITT - 20 HB CAR OUTBOARD HYDRAULIC PUMP

-The 20 HB CAR hydraulic pump is designed for hydraulic steering systems on outboard and inboard engines. Its compact size makes it easy to integrate into the cockpit and ensures smooth, progressive steering.

Compatible with DEXRON II oil, it integrates with Lecomble & Schmitt hydraulic steering systems for motorboats. Its design allows for neat installation and simplified maintenance.

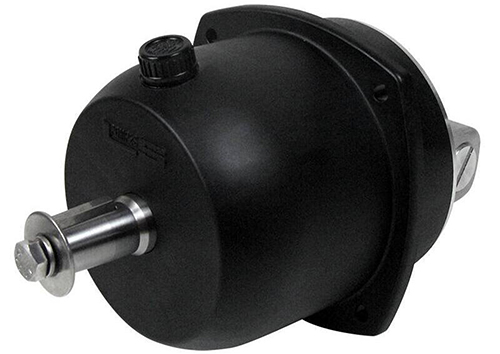

Pompe hydraulique hors-bord 20 HB CAR Lecomble et Schmitt

HYDRAULIC STEERING PUMP

The 20 HB CAR hydraulic pump is designed for out-of--board steering systems. Its compact size makes it easy to mount on the dashboard, especially when space in the cockpit is limited.

  • Hydraulic steering pump
  • 20 HB version for outboard and in-board engines
  • Dashboard mounting
  • 80 mm dashboard opening

The pump is secured using four 7 mm mounting holes. This configuration ensures a stable and durable installation. Installation must be performed in accordance with the manufacturer’s recommendations to ensure proper operation of the steering system.

20 HB CAR PUMP SPECIFICATIONS

Displacement 20 cm³/rev
Maximum pipe size 8x10 mm
Minimum pipe size Ø 6 mm

weight 		3.5 kg
Volume 400 cm³
Max. wheel diameter 520 mm
Mounting taper MO 2.3° (19/17.1)
Thread 1/8" BSPP

KEY FEATURES:

  • Recommended flywheel Ø 400 mm
  • Designed for out--board engines
  • For use with DEXRON II fluid
  • Compact pump with anti---back valves
  • Lecomble & Schmitt part number: 2200804
  • Dashboard mounting with 80 mm opening

BOX CONTENTS:

  • 1 - Off---board hydraulic pump 20 HB CAR
  • 1 - PDF documentation
