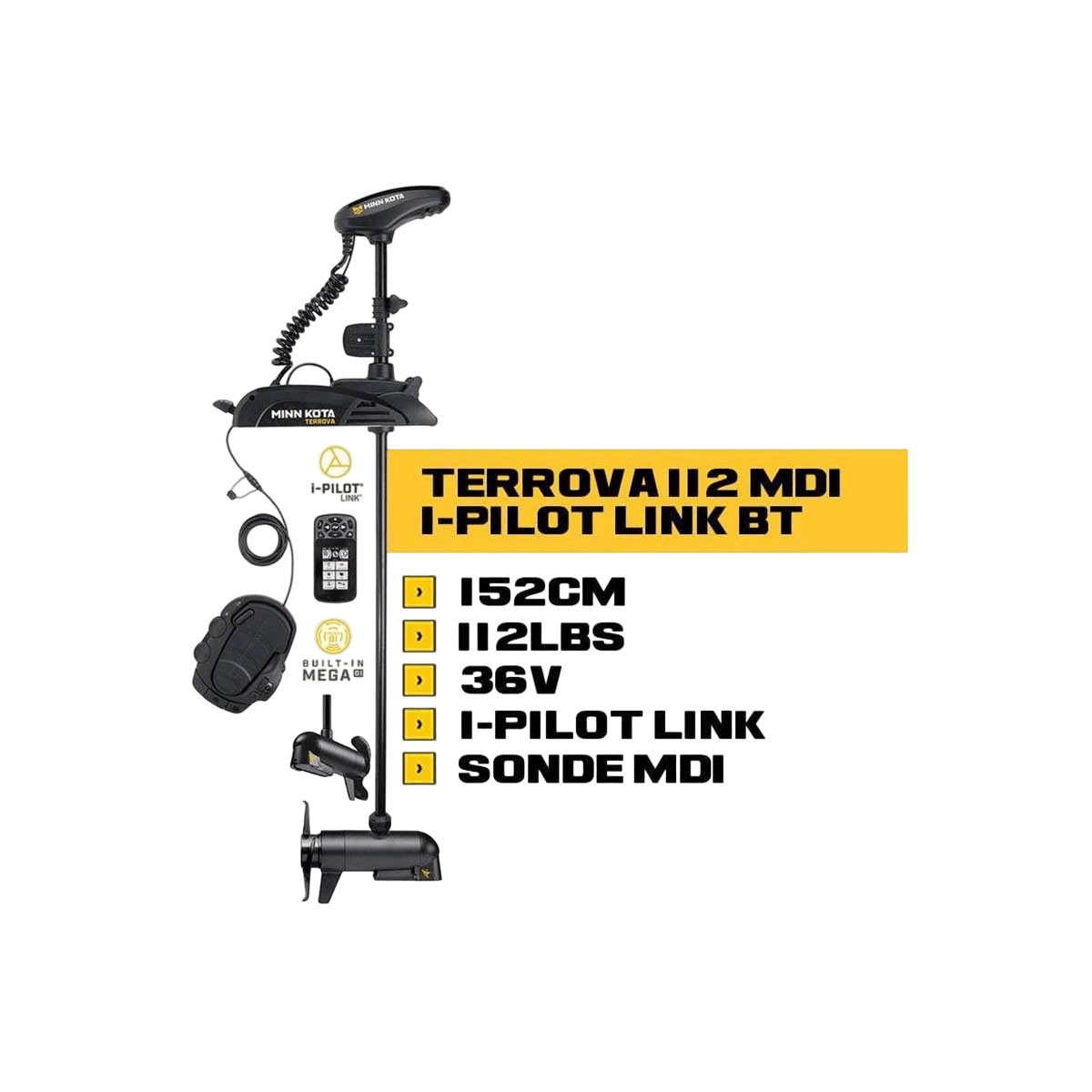

TERROVA MDI BT Front Motor + Pedal + i-Pilot Link

MEGA SENSOR DOWN IMAGING

Equipped with the MDI feature, this electric boat motor provides Mega digital imaging Down Imaging, compatible with the Humminbird SOLIX G2 series as well as the HELIX G3 series.

The MDI transducer was designed for seamless integration with Minn Kota motors. The motor-to-unit connection allows the transducer to be used without interference, even in Mega Down Imaging view mode.

Integration into the bow motors allows you to see what is directly beneath the bow of the boat.

2 beam types:

• Narrow: 180-240 kHz optimizes bottom reading and target separation
• Wide: 140 - 200 kHz optimizes the detection area and lure tracking

Combine both beam types for even better results!

Frequencies of the Mega Down Imaging:

• High: 1100–-–1200 kHz
• Medium: 800–-–860 kHz
• Low: 435– - 535 kHz

An adapter is required to use the MDI probe. See the list of available adapters here.

ENGINE CONTROL PEDAL

All features are accessible via this electric control pedal. You can fully control your motor with this easy-to-use and intuitive pedal.

• AutoPilot
• Steering
• Power
• Spot - Lock
• Motor Launch
• Motor Retraction
• Adjustment of submerged shaft height

-PILOT LINK REMOTE CONTROL I

Compact with a color touchscreen, it features a fully customizable menu. Quickly access the functions of your electric bow motor :

• -Lock Spot : Stabilizes your boat within a 60-cm radius around a preset point.
• Offset Spot-Lock : Allows you to offset your Spot-Lock by 1.50 m forward, backward, left, or right.
• Circle Mode : For fishing around an area in a circular pattern. Select the location and distance so that your boat orbits around it.
• AutoPilot : The GPS keeps your boat on a preset course while correcting for drift caused by current or wind.

Other features are available, such as speed, heading, start/stop, bottom line tracking, “Go To,” and “iTracks,” which lets you save a route and “replay” it.

--ASSIST LIFT SYSTEM

Lifting the motor is very easy thanks to the Lift---Assist system. With a simple press of the handle, slide the Minn Kota Terrova forward motor into the water.

-Lifting it out is just as easy, and the built-in circuit breaker automatically shuts off your motor.

KEY FEATURES:

• Gyro Sensor
• Electric Pedal
• Battery Gauge
• Maximizer System
• I-Control Pilot Link
• MegaDownImaging (MDI) Transducer
• 2-year manufacturer's warranty (+2 years with battery)

WHAT'S IN THE BOX:

• - 1 TERROVA BT 112 LBS Motor -, 152 cm, -, 36V
• 1 - Electric Control Pedal
• 1 - I Remote Control-Pilot Link
• 1 - Weedless Wedge 2 Propeller
• 1 - PDF documentation
