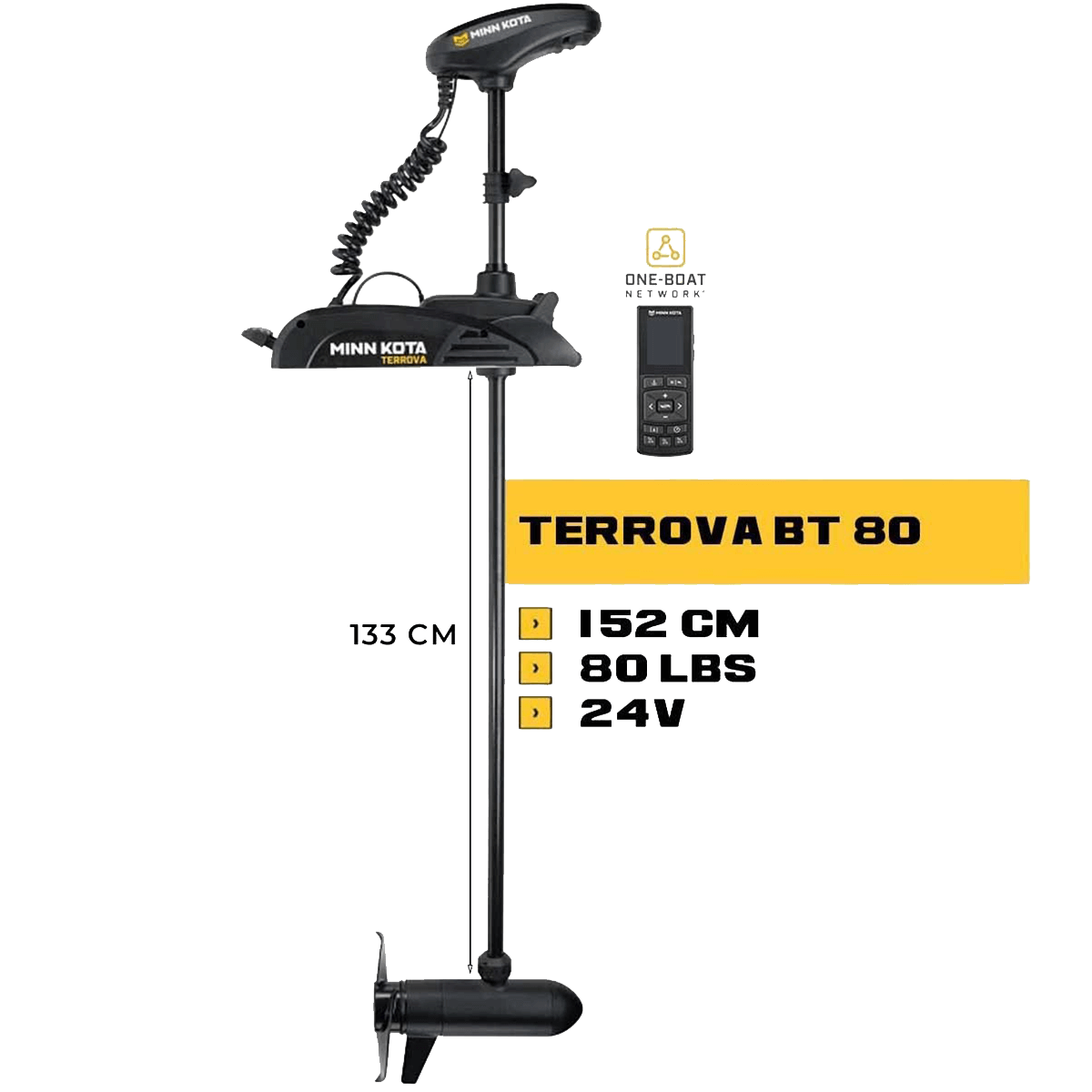

TERROVA BT 80 Lbs front motor

Name: TERROVA BT 80 Lbs front motor
Brand: Minn kota

The Minn Kota Terrova 80 Lbs GPS 24V electric bow motor is a quiet, easy-to-handle bow motor. It features an enhanced GPS with numerous navigation modes perfect for freshwater fishing.

This version has a 152 cm long motor shaft without probe, but the Minn Kota Terrova 80 Lbs GPS front motor is also available in a version with integrated DSC probe (Dual Spectrum Chirp ) or MDI+ probe (Mega Down Imaging ) or in 114 cm with MDI+ probe .

MINN KOTA - TERROVA 80 LBS GPS FRONT ENGINE - OPTIMIZED FOR FISHING

With a 152 cm shaft And a 80 Lbs thrust , the Minn Kota Terrova 80 Lbs GPS front electric motor will be perfect for your riding sessions Freshwater fishing .

The tree the motor is made of flexible, rustproof composite material. It features a mKP-33 anti-algae propeller so that you can navigate through vegetation no worries.

You can control the motor with the wireless remote control Wireless with large screen and one-Boat Network compatible (which, if you don't have aHelix "N" of power manage your engine from your compatible smartphone ).

Finally, it has the Digital Maximizer , to regulate power motor output and Fine-tune speed Of the boat, which considerably reduces power consumption and extends service life Of your battery.

This Electric motor Minn Kota Terrova 80 GPS 24V is available in several versions for meet the needs of a wide range of fishermen :

MK-1358380M ➔ Minn Kota TERROVA 80 Lbs GPS front engine 152 cm - without probe
MK-1358382M ➔ Minn Kota TERROVA 80 Lbs GPS front engine 152 cm - with integrated DSC sensor
MK-1358385 ➔ Minn Kota TERROVA 80 Lbs GPS front engine 114 cm - with integrated MDI+ sensor
MK-1358386 ➔ Minn Kota TERROVA 80 Lbs GPS front engine 152 cm - with integrated MDI+ sensor

gps amélioré et hélice anti-algues du moteur électrique avant Minn Kota Terrova BT

Advanced GPS and navigation modes

The Terrova 80 GPS front engine features a gPS system improved giving the total control over the fisherman via wireless remote control. A multitude of navigation modes :

Drift mode : combines course indicator and cruise control For simplify management of boat movements , this eliminates the need for floating anchors or other trajectory control devices.
Tracking mode : Am automatically a custom contour on a handset Humminbird depending on zone depth, bottom hardness and vegetation density.
Dodge mode: allows you to quickly exit automatic navigation mode to maneuver manually through waves and around structures, then resume navigation without resetting the route.
Spot Lock & Jog Log : Locks in the position of your fishing spot with unrivalled precision and allows you to move around if necessary
Autopilot mode : follow a route predefined on your handset Humminbird
Back/return mode : Retraces your route up to 3 km back
Circle mode : Scans a fishing zone around a defined point
Itracks & Track Offsets mode : Create, store, trace or return to fishing or navigation areas
Routes mode : Links multiple Waypoints and Spot-Locks to create a single route

Minn Kota wireless remote control

The Minn Kota Wireless Advanced GPS - Spot-Lock remote control allows you to control your Minn Kota Terrova 80 Lbs GPS electric motor.

Lightweight and waterproof , the Wireless Minn Kota remote control combines all the functions of the Co-Pilot, I-Pilot and I-Pilot Link Minn Kota.

Equipped with a 2.1" color display (non-tactile), it also features a Intuitive menu And a simplified keyboard , you can customize four buttons (3 on the front and 1 on the side)Using the One-Boat Network system.

It allows you to control all enhanced GPS functions and integrated into Minn Kota engines.

télécommande sans fil Wireless Minn Kota pour moteur électrique avant Minn Kota & One-Boat Network

Comment choisir la longueur d'arbre d'un moteur avant Minn Kota eau douce

What is the motor shaft length ?

It is important to choose the right shaft length of the Minn Kota motor in relation to the boat. If it's too short, the propeller won't be sufficiently submerged. Comptoir Nautique recommends :

Measure the distance between the bow and the waterline.
Add 10 cm to the waterline measurement for rough water fishing.
Add 30 cm to the waterline measurement to steer a hand-operated motor while standing in the boat.

Distance from bow to waterline	Recommended shaft length
From 0 to 25 cm	91 cm
From 40 to 55 cm	From 106 to 114 cm
From 55 to 71 cm	From 121 to 132 cm
From 71 to 11 cm	From 137 to 182 cm
Over 114 cm	From 220 to 254 cm

Technical specifications of the Minn Kota Terrova 80 LBS GPS front engine - 152 cm

Environment	Fresh water
Mounting location	Front of boat
Motor shaft length	152 cm
Voltage	24V
Power	80 LBS
Speeds	Dimmer switch
Gyro sensor	Deported
Enhanced GPS (Spot-lock, Auto-Pilot)	✔️
Battery gauge	✔️
Ethernet	✔️
Bluetooth	✔️
One-Boat Network	✔️
Probe	❌
Lifting/launching assistance	❌
