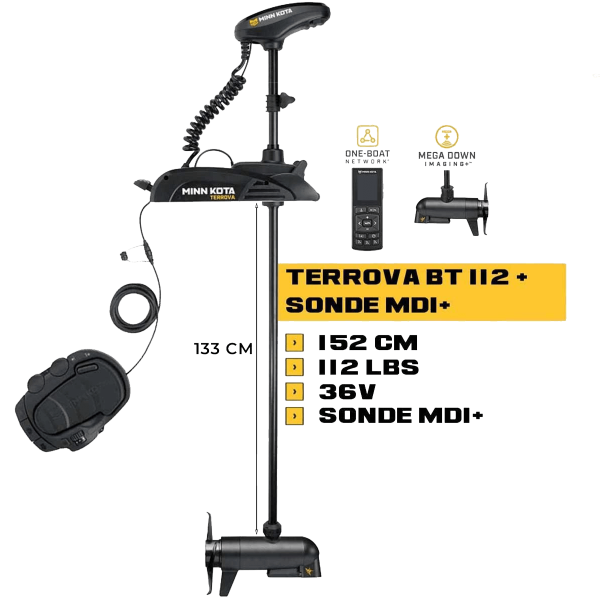

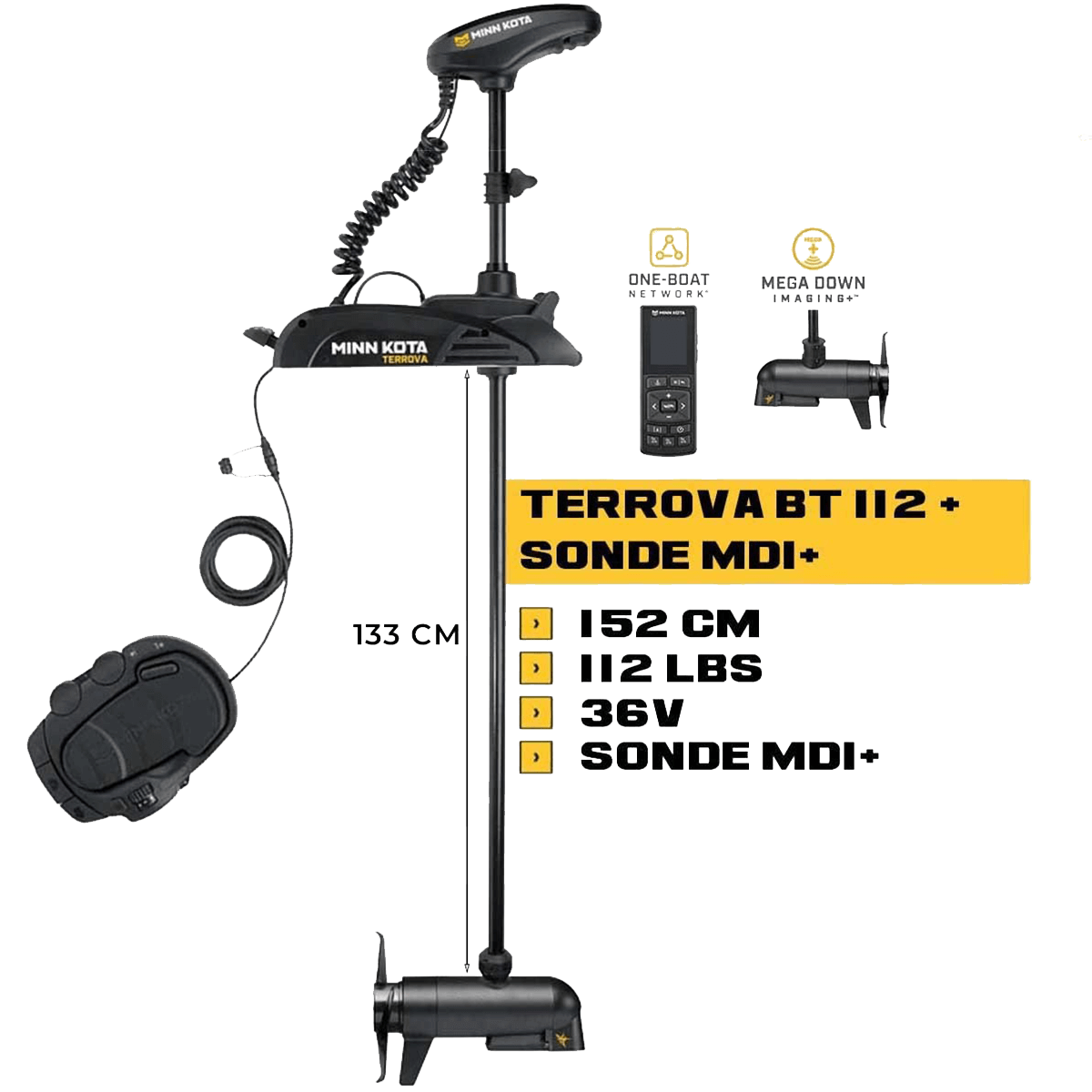

MINN KOTA - TERROVA 112 LBS GPS + MDI+ FRONT ENGINE - OPTIMIZED FOR FRESHWATER FISHING
With a 152 cm motor shaft And a 112 Lbs thrust, the Minn Kota Terrova 112 Lb GPS s front electric motor will be perfect for your riding sessions Freshwater fishing.
The tree motor is made of a flexible, robust, rust-proof composite material, three times resistant Than steel and flexible Obstacles. It has a mKP-38 anti-algae propeller so that you can navigate through vegetation no worries.
You have the choice of controlling the motor either with a wireless remote control Wireless with large screen and one-Boat Network compatible (which, if you don't have aHelix "N", power manage your engine from your compatible smartphone) or with a control pedal wired.
Finally, it has the Digital Maximizer, to regulate power motor output and Fine-tune speed Of the boat, which considerably reduces power consumption and extends service life Of your battery.
|
-du-moteur-%C3%A9lectrique-minn-kota-terrova-BT.jpg) |
MEGA DOWN IMAGING PROBE FOR FISHING
The integrated MDI+ probe (Mega Down Imaging) was created for a perfect integration with Minn Kota engines. The motor/combiner link allows the sensor to be used without interference.
Integration in front-engine units also makes it possible to see what's directly under the boat's bow (structures, fish...) .
2 beam types :
- Narrow 180-240 kHz optimizes background reading and the target separation
- Large 140-200 kHz optimizes detection area and lure tracking
You can also combine beam types for greater versatility.
Mega probe frequencies Down Imaging :
- High : 1100-1200 Khz
- Average : 800-860 Khz
- Bass : 435-535 Khz
Compatible with handsets Humminbird with Ethernet functionality.
|
|
Advanced GPS and navigation modes
The Terrova 112 GPS front-engine incorporates a gPS system improved giving the total control over the fisherman via wireless remote control. A multitude of navigation modes :
- Drift mode : combines course indicator and cruise control For simplify management of boat movements, this eliminates the need for floating anchors or other trajectory control devices.
- Tracking mode : Am automatically a custom contour on a handset Humminbird depending on zone depth, bottom hardness and vegetation density.
- Dodge mode: allows you to quickly exit automatic navigation mode to maneuver manually through waves and around structures, then resume navigation without resetting the route.
- Spot Lock & Jog Log : Locks in the position of your fishing spot with unrivalled precision and allows you to move around if necessary
- Autopilot mode : follow a route predefined on your handset Humminbird
- Back/return mode : Retraces your route up to 3 km back
- Circle mode : Scans a fishing zone around a defined point
- Itracks & Track Offsets mode : Create, store, trace or return to fishing or navigation areas
- Routes mode : Links multiple Waypoints and Spot-Locks to create a single route
|
 |
|
 |
Minn Kota wireless pedal & remote control
Lightweight and waterproof, the Minn Kota Wireless Advanced GPS - Spot-Lock remote control allows you to control your Minn Kota Terrova 112 Lbs GPS electric motor.
Equipped with a 2.1" color display (non-tactile), it has a Intuitive menu And a simplified keyboard, you can customize four buttons (3 on the front and 1 on the side) Using the One-Boat Network system.
It allows you to control all enhanced GPS functions quoted above.
The Minn Kota wired foot switch (6m cable) has a small footprint and a heel/toe use.
It provides access to the main functions: propeller on/off, management speed and direction, activation or deactivation of modes Spot-Lock / Jog Log and the AutoPilot.
From lED indicators On the pedal confirm the use of the navigation modes Spot-Lock, AutoPilot and speed.
|
|
What is the motor shaft length ?
It is important to choose the right shaft length of the Minn Kota motor in relation to the boat. If it's too short, the propeller won't be sufficiently submerged. Comptoir Nautique recommends :
- Measure the distance between the bow and the waterline.
- Add 10 cm to the waterline measurement for rough water fishing.
- Add 30 cm to the waterline measurement to steer a hand-operated motor while standing in the boat.
| Distance from bow to waterline |
Recommended shaft length |
| From 0 to 25 cm |
91 cm |
| From 40 to 55 cm |
From 106 to 114 cm |
| From 55 to 71 cm |
From 121 to 132 cm |
| From 71 to 11 cm |
From 137 to 182 cm |
| Over 114 cm |
From 220 to 254 cm |
|
 |
|
Technical specifications of the Minn Kota Terrova 112 LBS GPS - 152 cm + MDI+ front engine
| Environment |
Fresh water |
| Mounting location |
Front of boat |
| Motor shaft length |
152 cm |
| Voltage |
36V |
| Power |
112 LBS |
| Speeds |
Dimmer switch |
| Gyro sensor |
Deported |
| Enhanced GPS (Spot-lock, Auto-Pilot) |
✔️ |
| Battery gauge |
✔️ |
| Ethernet |
✔️ |
| Bluetooth |
✔️ |
| One-Boat Network |
✔️ |
| MDI+ probe (Mega Down Imaging) |
✔️ |
| Lifting/launching assistance |
❌ |
MAIN POINTS :
- Enhanced GPS
- Easy to control
- Battery gauge
- Quiet motor
- Anti-algae propeller
- Integrated MDI+ probe
- Connectivity Humminbird
- Different navigation modes
|
BOX CONTENTS :
- 1 - Minn Kota Terrova 112 LBS GPS 152 cm + MDI+ front engine
- 1 - Mega probe Down ImagingIntegrated
- 1 - Wired control pedal (6m cable)
- 1 - Minn Kota wireless remote control
- 1 - Weedless Wedge propeller 2 MKP-38
- 1 - Ethernet network cable (9m)
- 1 - Remote gyroscopic sensor
- 1 - Probe adapter
- 1 - PDF documentation
|
