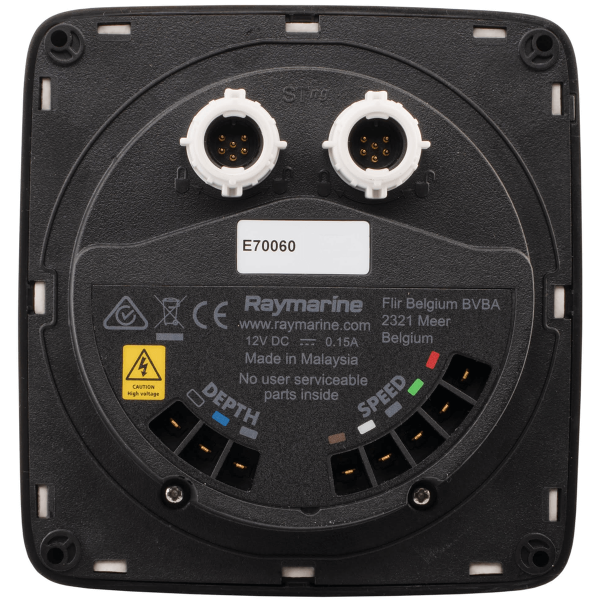

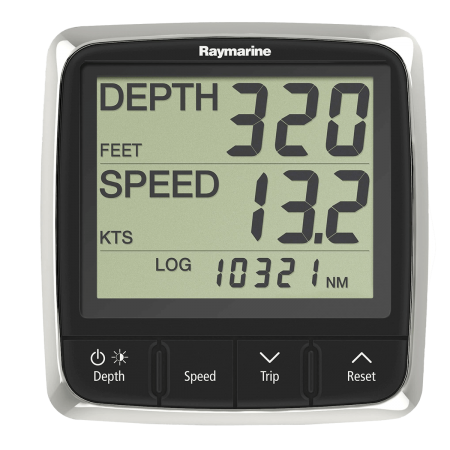

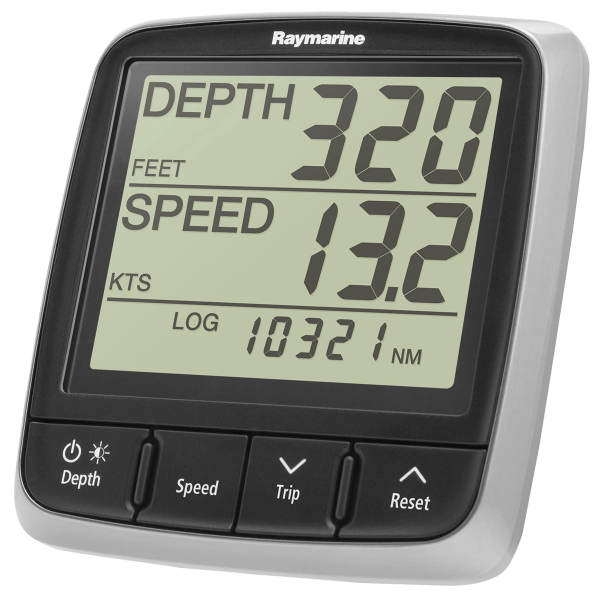

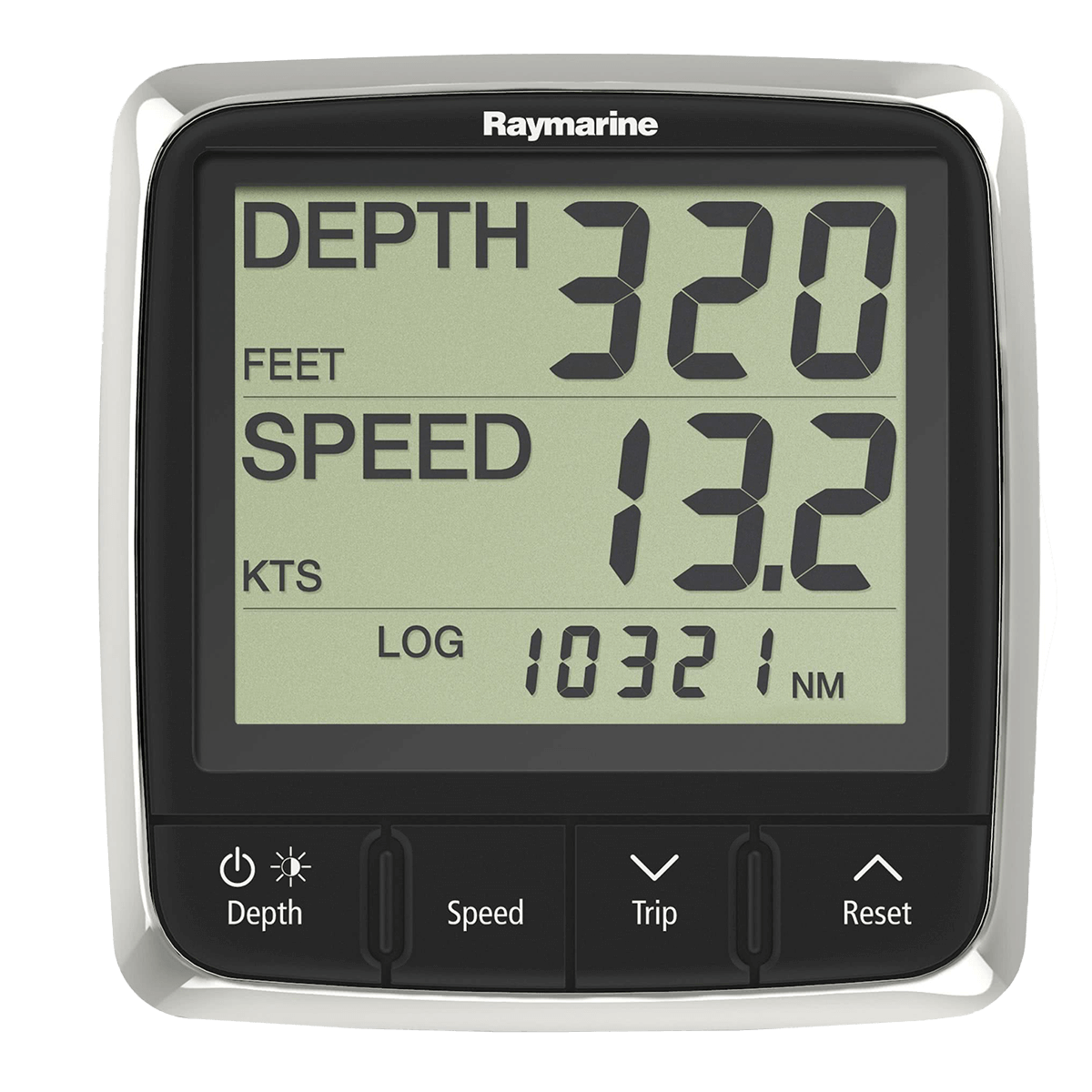

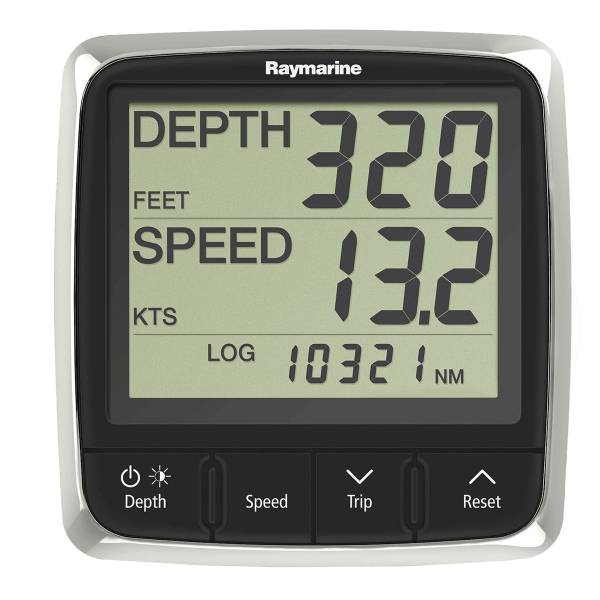

I50 Tridata display

I50 TRIDATA DISPLAY

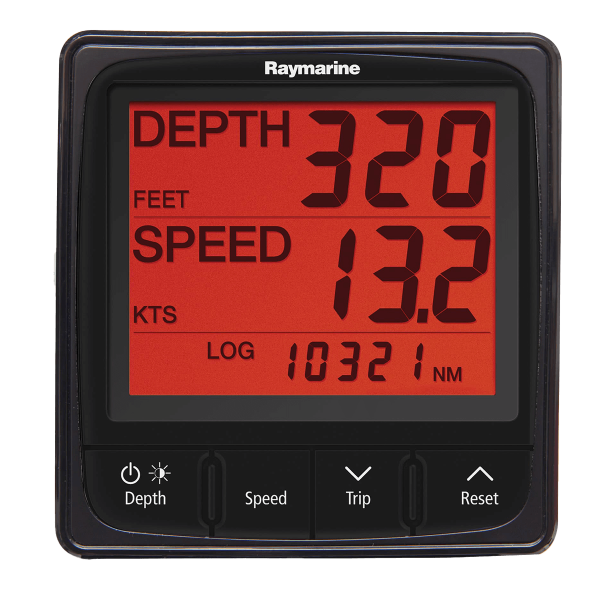

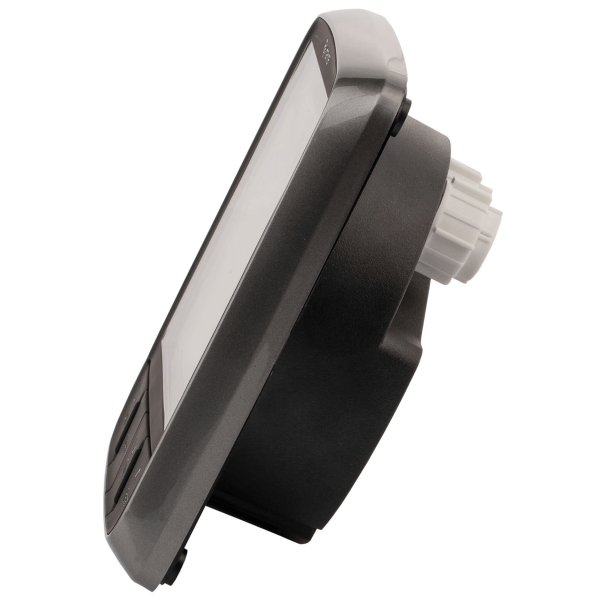

Excellent readability angles, day and night, simple key commands: i50 instruments are extremely easy to read, thanks to the red backlighting that enhances legibility. What's more, they're easy to install, thanks to their front-mounted design.

• Combined depth and speed data
• Partial loch/totalisator, water temperature and SOG
• Easy-to-read 3-line display; dedicated sounder and speedo log displays

I50 TRIDATA PACK WITH SENSORS

Opt for the complete "Ready to Sail" pack version and benefit from all i50 Tridata functionalities:

• Combined depth and speed data
• Partial loch/totalisator, water temperature and SOG
• Easy-to-read 3-line display; dedicated sounder and speedo log displays

With a 51mm hole diameter, the through-hole sensor measures water depth and temperature.

The P120 retractable through-beam sensor features speed and temperature functions. This 51mm sensor is compatible with aluminum and fiberglass hulls.

KEY FEATURES

• Low power consumption
• 110mm x 115mm display
• Integrated sensor interface
• SeaTalk and SeaTalkng interfaces
• NMEA 2000 (compatible) interface
• Large numbers and characters

I50 TRIDATA CONTENTS

• 1 - i50 Tridata display

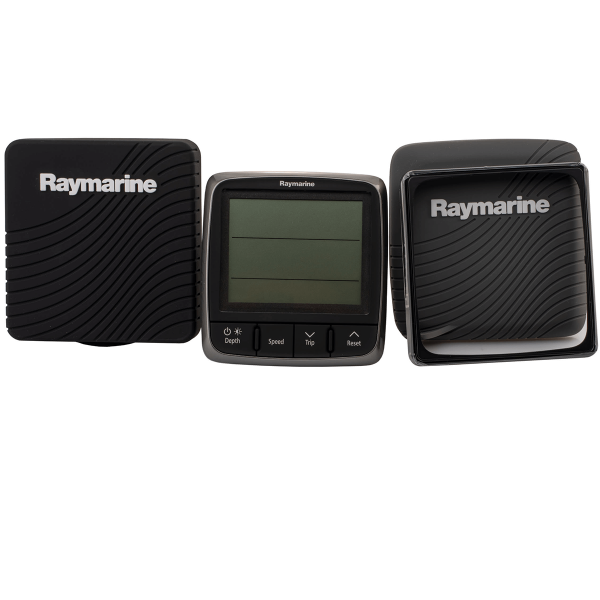

• 1 - Protective cover
• 1 - SeaTalk NG cable (0.4m)
• 1 - PDF documentation

I50 PACK CONTENTS

• 1 - i50 Tridata display
• 1 - Protective cover
• 1 - SeaTalk NG cable (0.4m)
• 1 - Sounder sensor with 14m cable
• 1 - P120 log/speedo sensor with 13.8m cable
• 1 - Hull grommet 51mm + blanking plug
• 1 - PDF documentation
