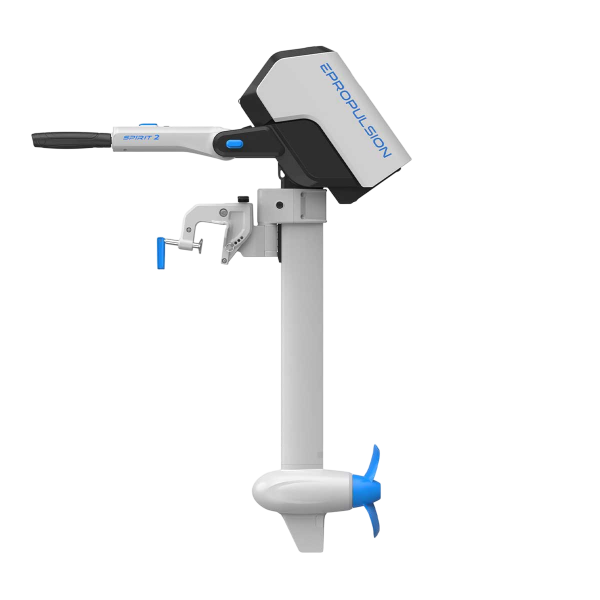

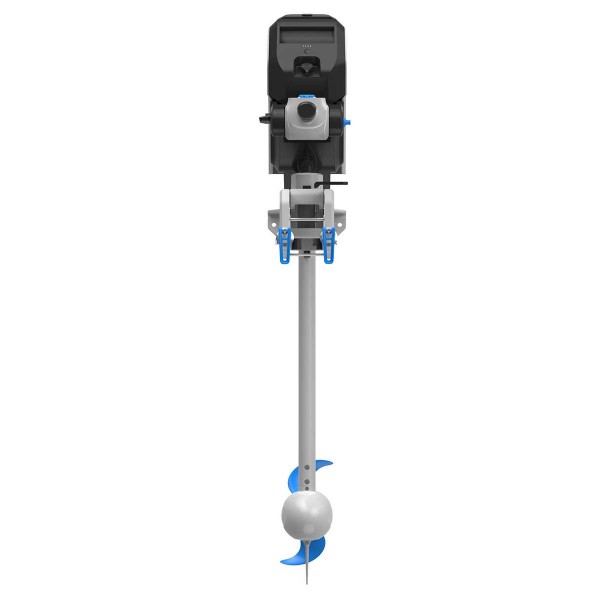

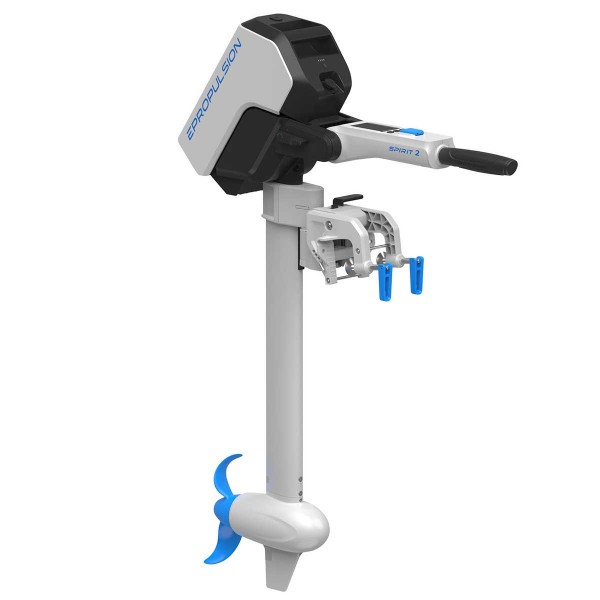

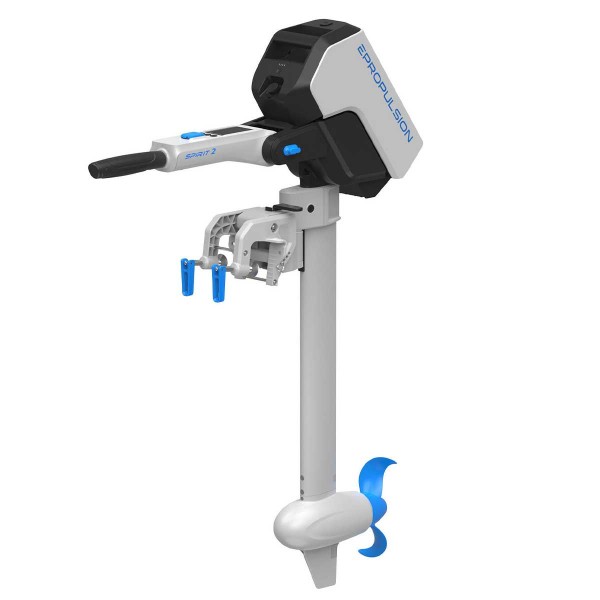

Spirit 1.0 Evo rear electric motor

Name: Spirit 1.0 Evo rear electric motor
Brand: EPropulsion

The new 52.5 cm / 21" ePropulsion Spirit 2 motor with extra-short shaft is designed for small craft such as tenders, semi-rigids and small fishing boats.

Its integrated 1539 Wh lithium battery provides silent operation for 1 hour at a speed of 17.5 km/h, while its hydrogeneration function recharges the battery during cruising.

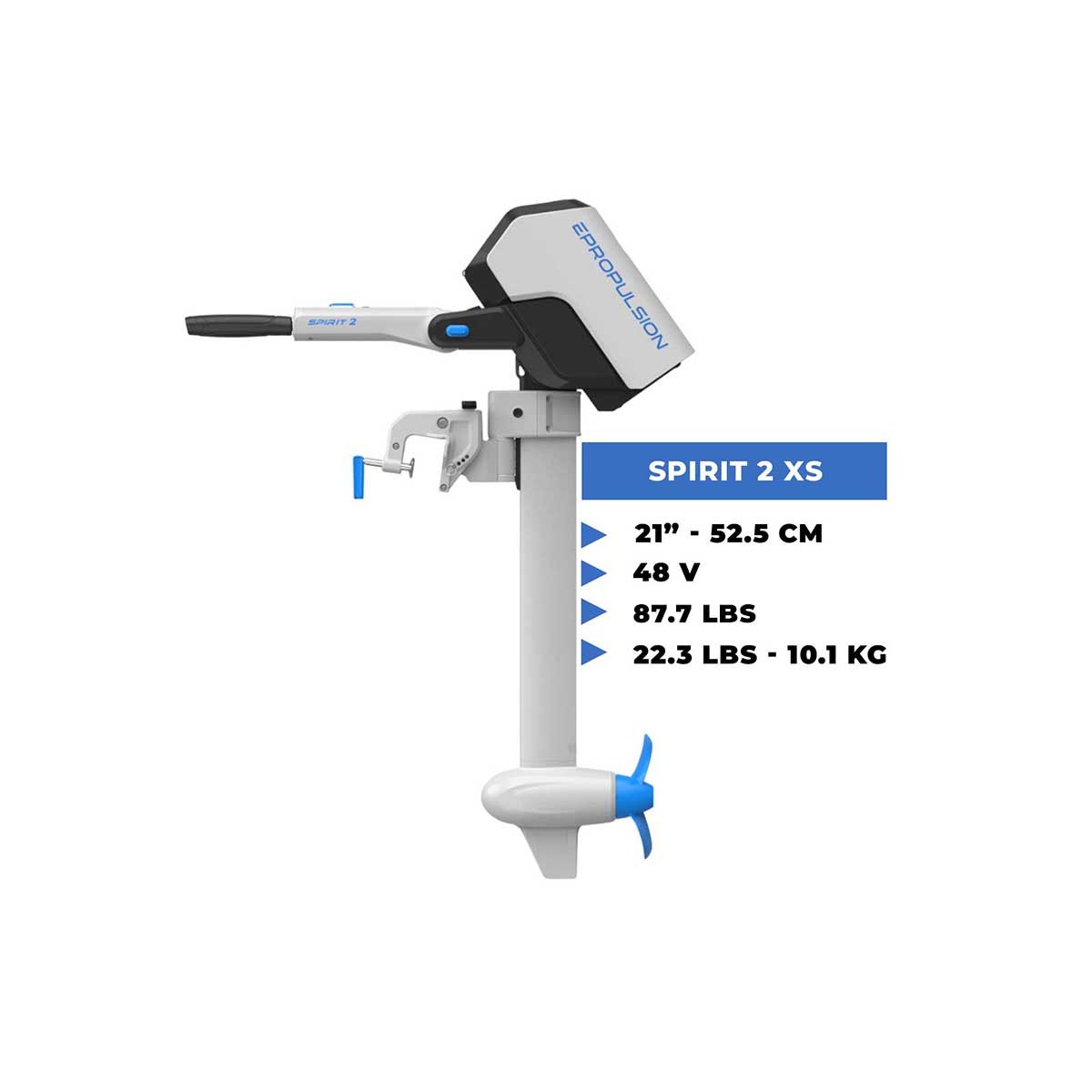

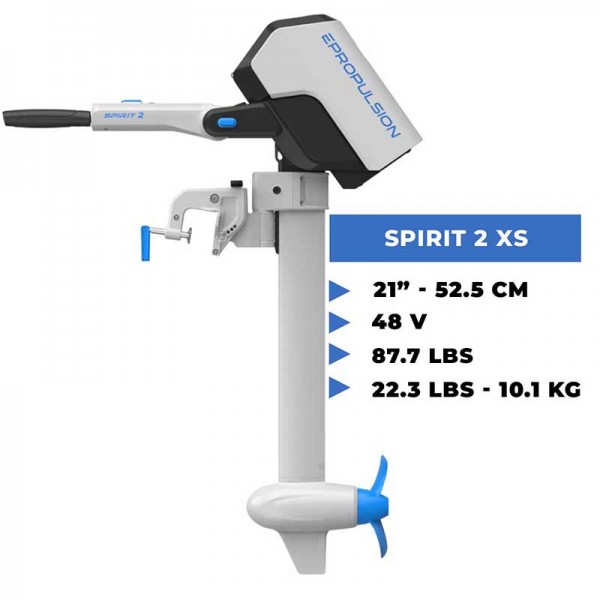

EPROPULSION - SPIRIT 2 XS TILLER MOTOR

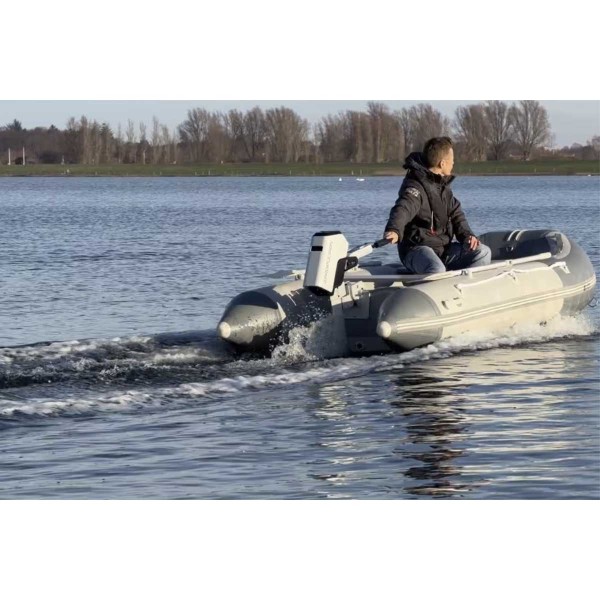

The Spirit 1.0 Evo S rear-mounted electric motor powers your inflatable dinghy, the motor can be mounted on any boat, canoe, small boat or sailboat. This electric motor lets you move around in freshwater or at sea. It's perfectly suited to portable use, with frequent assembly and disassembly.

It's renowned for its reliability, fuel efficiency and ease of use, making it a popular choice among environmentally conscious boaters or those who want a motor for fishing so as not to make a noise for the fish, for example.

If you're not sure which motor to use for your tender, you can read our dedicated blog post to help you choose the right one best electric tender motor.

Moteur arrière électrique spirit 1.0 evo

Easy to install and transport

The Spirit 1.0 Evo engine has been designed to deliver ease of transport and a quick installation. What's more, it's quiet, environmentally-friendly and powerful.

With its weight from 11.3 kg and its compact design (550 x 457 x 1150 mm), this motor is easy to transport with just one hand and can be stored without taking up much space.

The quick-release clamp makes it possible to attach installation and dismantling in seconds, no additional tools required, thanks to its innovative "one Click" fastening system.

It is also equipped with a-circuit that shuts down the motor immediately if necessary for greater safety.

Powerful built-in battery

The Spirit 1.0 Evo engine combines simplicity and technology for a simplified cruising experience.

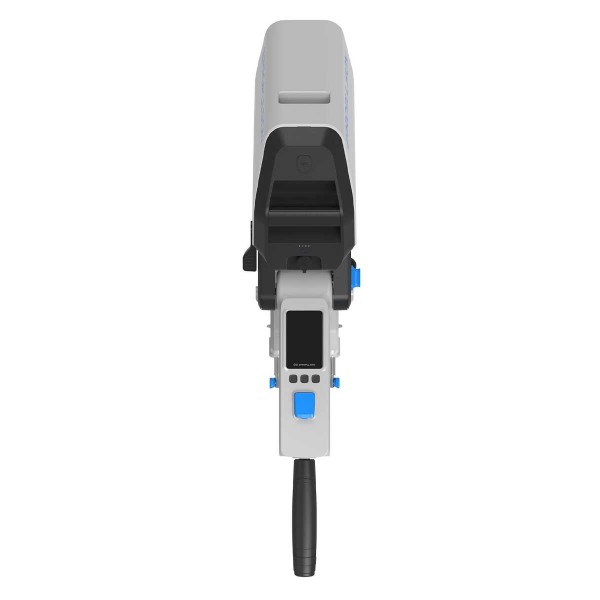

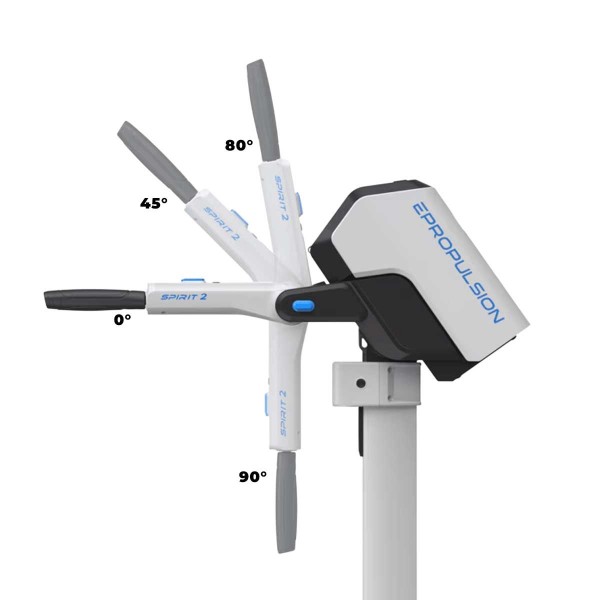

Thanks to its non-slip extendable handle, with this new design, users benefit from improved ergonomics, enabling them to adapt to a wide range of navigation and operating conditions. The tiller folds away and converts into a carrying handle.

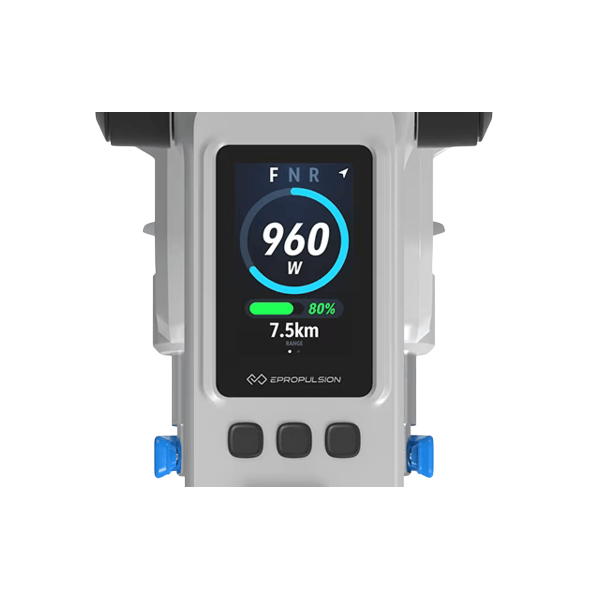

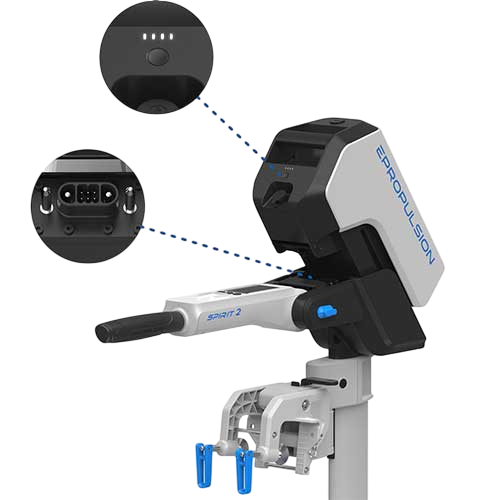

Intelligent management of your lithium battery-integrated ion 1276 Wh optimizes energy efficiency, prolonging the motor's autonomy while making it easy to monitor its condition in real time via a Digital display.

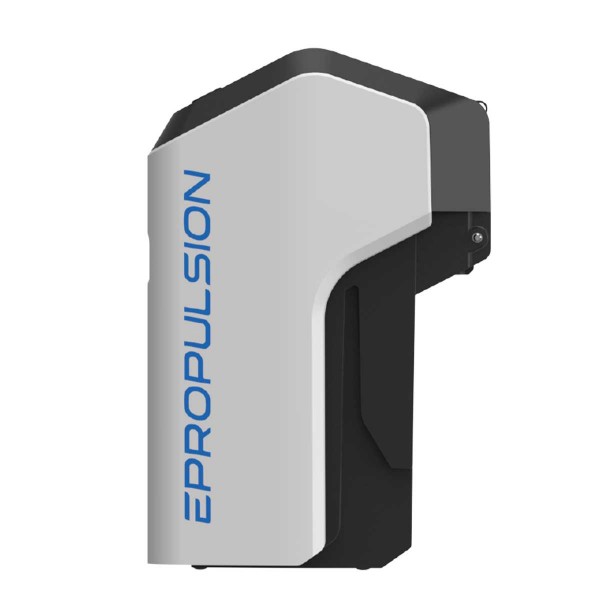

With its floating design, the Spirit battery is unsinkable. IP67-rated, it operates in all conditions. Lightweight and compact, it weighs only 8.7 kg, which makes it easy to transport.

Comment choisir la longueur d'arbre moteur du moteur électrique Spirit 1.0 Plus?

Choosing the right tree for your boat

It is crucial to choose the right shaft length for the Spirit 1.0 Evo motor to suit your boat. If it's too short, the propeller won't be submerged enough. Comptoir Nautique recommends :

Measure the distance between the bow and the waterline.
Add 10 cm to the waterline measurement for rough water fishing.
Add 30 cm to the waterline measurement to steer a hand-operated motor while standing in the boat.

Distance from bow to waterline	Recommended model
From 35 to 45 cm	Spirit 1.0 Evo S
+ 45 cm	Spirit 1.0 Evo L

HYDROGENERATING TECHNOLOGY

The Spirit 1.0 Evo engine, unlike the Spirit 1.0 Plus is the very first off-electric dashboard with hydrogeneration system, the battery is recharged when the engine is running. The ePropulsion brand is a pioneer in off-road motor innovation-and is dedicated to sustainable and ecological navigation.

This function is activated (after 10 knots, the motor enters protection mode and load power no longer increases).

Tiller calibration

Starting and shutting down the Spirit 1.0 Evo

Spirit 1.0 Evo performance and power

Power (Watt)	Speed (km/h / mph)	Duration of use (h:m)	Distance (km / mi)
35	3.5 / 2.2	36:25	129 / 80
65	4.3 / 2.7	19:35	85.3 / 53
125	5.6 / 3.5	10:00	56 / 35
250	7.1 / 4.4	5:00	35.5 / 22
500	8.5 / 5.3	2:30	21.3 / 13.3
750	9.2 / 5.7	1:40	15.3 / 9.5
1000	10 / 6.2	1:15	12.5 / 7.8

Technical specifications of the Spirit 1.0 Evo S engine

Rated power	1000 W
Voltage	48 V
Battery	Integrated 1276 Wh Lithium-ion Polymer
Charging time	8.5 hrs / 3.5 fast charger (optional)
Battery life	800 cycles with 80% discharge
Maximum propeller speed	1200 rpm
Thrust	66 lbs
Cutting angle/tilt	0°, 7°, 14°, 21°
Manual lift	85°
Propeller	Bipal 11" x 5.8"
Dimensions (L x W x H) without tiller arm	550 x 457 x 1150 mm / 21.7 x 18 x 45.3 inches
Motor weight (without battery)	11.3 kg / 24.9 lbs
Battery weight	8.7 kg / 19.2 lbs
Shaft length	24.6" / 62.5 cm
