EasyCharge 12/24V
Ref.
43321000
The EasyCharge 10A compact battery charger provides a high-performance , adaptable charging solution, offering remarkable versatility of use . Whether for a boat, a car, a jet ski or a motorcycle, the possibilities are numerous, adapting to different types of batteries (wet , gel or AGM ).
Thanks to their resistance to water , salt , vibration and shock , these chargers are specially designed for use on the move or in locations exposed to harsh on-board conditions.
Read more Features
€142.90
Tax included
Public price
€159.52
Price tax excl. / DOM TOM
€119.08
43321000
Data sheet
- Voltage
- 12V, 24V
- Amperage
- 10A, 5A

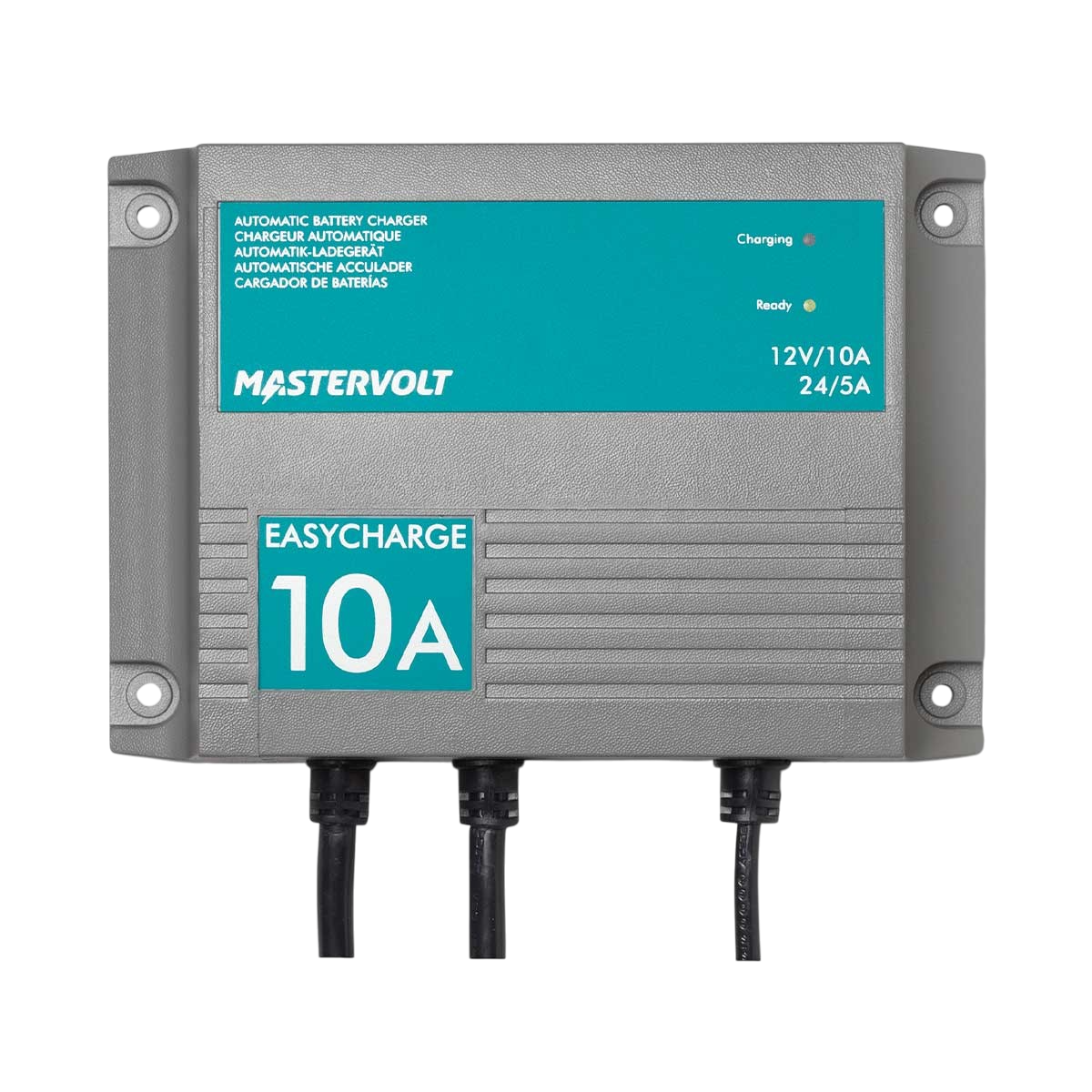

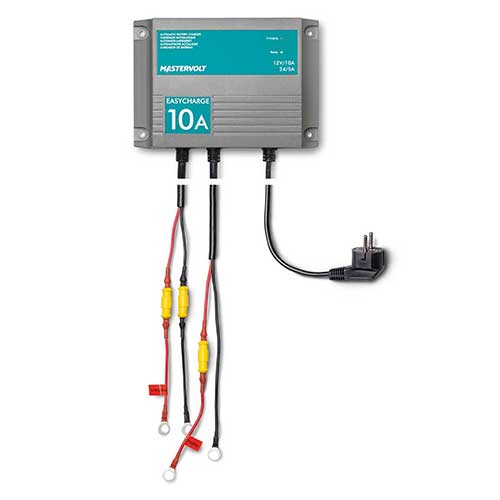

MASTERVOLT - EASYCHARGE 10A BATTERY CHARGER
The EasyCharge model is manufactured with an IP68 protection rating, easily meeting CE , CSA , CEC , ABYC and other standards. Their corrosion-resistant housing is hermetically sealed with epoxy resin . They can be connected in series or parallel , 12 or 24 V , depending on voltage or power requirements, and their outputs are perfectly isolated .
These highly efficient , easy-to-use chargers are specially designed for harsh environments, and have been tested for resistance to shock , vibration and salt corrosion. The 10A version can recharge two batteries.
Featuring Sense-Send technology, the charger identifies which batteries need the most charging and adjusts its action accordingly. These chargers are compatible with lead-acid , gel and AGM batteries. With their universal input (120 to 230 V), they offer total flexibility worldwide .
EASYCHARGE 10A BATTERY CHARGER SPECIFICATIONS
| Total charge current | 10A at 12V / 5A at 24V |
| Recommended battery capacity: load (based on 50% battery discharge) | to 120 Ah |
| Nominal input voltages | 120/230V (90-265V), 50-60 Hz |
| AC connection | 1.2 m (4ft) cable + Euro plug |
| DC connection | lugs |
| Galvanic isolation | yes |
| Dimensions (with terminal blocks and handles), LxWxH | 127 X 178 X 51mm |
| Weight | 2.8kg |
| Standards | CE, ABYC |
| Load characteristics | IUoUo, 3-stage+automatic for Gel/AGM/wet |
| Protection class | IP68 |
| Protections | anti-spark, short-circuit, reverse polarity, overvoltage, current-limited, overtemperature |
| MasterBus compatible | yes |
