ALL-IN-ONE power unit - 12V-25A 230V
Ref.
399125

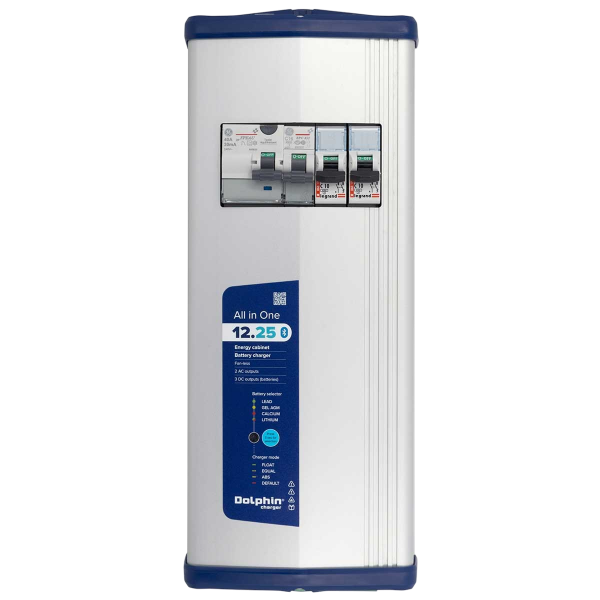

Charging, converting, protecting and distributing power in a single box, the Dolphin All-in-One 12V 25A 230V power unit is a robust, powerful power cabinet specially developed for pleasure boating .
Read more Features
€573.90
Tax included
Public price
€639.78
Price tax excl. / DOM TOM
€478.25
399125
Data sheet
- Amperage
- 25A
- Number of outputs
- 2
DOLPHIN - ALL-IN-ONE - ALL-IN-ONE ENERGY CABINET
This all-in-one unit is a power cabinet that combines a 3-outlet battery charger , a 30mA residual current circuit breaker and a 220V distribution panel (2 outlets) in a single connected box . A simple and more compact box than ever for quick installation on board your sailboat. The unit's reduced size and mobile connectivity with the Dolphin Connect App allow you to monitor performance from your smartphone.
Super-simple to install , the Dolphin ALL-in-ONE power unit makes it easy for the professional installer, marine electrician or DIY yachtsman to set it up and have a total electrical installation that complies with ISO13297.
 |
ULTRA-COMPACT & SILENTThe Dolphin ALL-IN-ONE power unit features a brand-new, super-powerful electronic "brain" developed by Dolphin engineers in Annecy, France. Ultra-compact , it fits into the smallest spaces on board your boat. Its high efficiency means it doesn't need a fan! As the ALL-in-ONE Dolphin energy cabinet needs no fan, it is 100% silent . You can install it in the cabin of your boat or in the saloon and sleep peacefully. |
POWERFUL, ROBUST & CONNECTEDThe unit offers AC safety with one main and two secondary circuit breakers. It's the ideal solution when you're using a water heater, microwave oven or 220 V outlet, for example. There's an integrated 12V charger (3 outputs) from the PROLITE 25A series, with 4 charging programs for all types of batteries, including GEL and AGM slow-discharge, lead or lithium. This All-in-one Dolphin energy box features several protections:
Finally, by downloading the Dolphin Connect application onto your smartphone, you'll have access to a range of information:
|
 |
PRESENTATION OF THE DOLPHIN ALL-IN-ONE ENERGY UNIT
Technical specifications of the Dolphin ALL-IN-ONE energy unit
| 12V 24A battery charger | |
| Input voltage | 115/230V |
| Frequency | 50/60 hz |
| Number of outputs |
3 isolated outputs |
| Max. current | 25A |
| Cross-section 230V AC | |
| Voltage | 230V / 50hz |
| AC outputs | 2 outputs 10A (2x5A) |
| Input protection | 16A 30mA differential circuit breaker |
| Output protection | 10A thermal-magnetic circuit breaker |
| Other | |
| Display | Multifunction LED (state of charge, faults) |
| Dimensions (L x W x H) | 372 x 142 x 82 mm |
| Weight | 2.2 kg |
| Operating temperature | -10°C to +55°C |
| Storage T° | -20°C to +70°C |
| Humidity | 90% max (non-condensing) |
MAIN FEATURES :
|
BOX CONTENTS :
|
