S series "china" interceptor

Name: S series "china" interceptor
Brand: ZiPWAKE

ZIPWAKE Series S Chine interceptors optimize pitch and roll control by using the outermost areas of the hull bottom to generate lift.

They are suitable for all boats from 6 to 18 meters. Supplied with 3 m cable.

€558.25

Public price

€623.22

-10%

or pay in

Price tax excl. / DOM TOM €558.25

Mounting type

Port
Starboard

Model

IT300-S
IT450-S

Quantity

OUT OF STOCK

558 loyalty points.

Reference ZIP2011702

Description
Customer Reviews
Questions / Answers
Products also ordered

Description

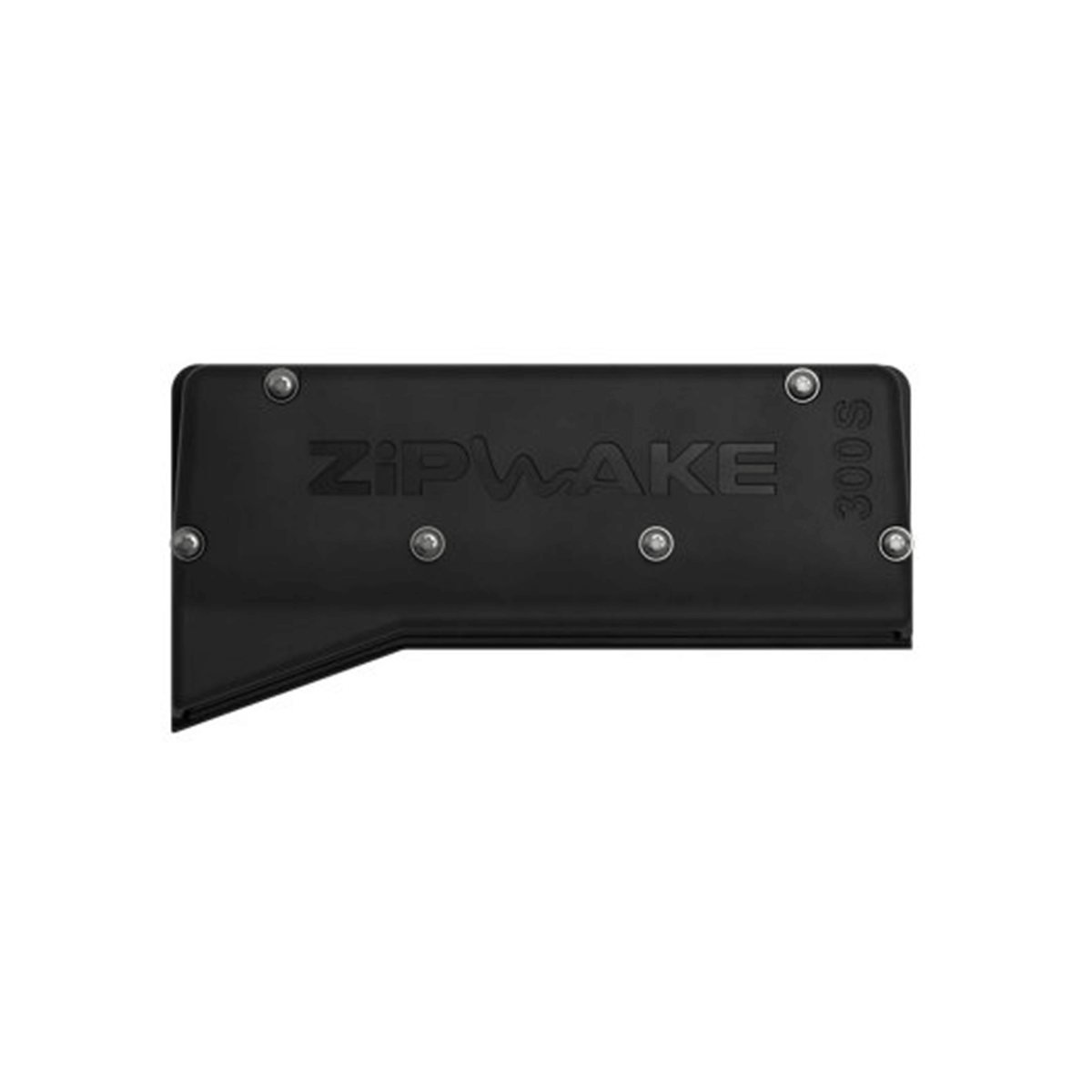

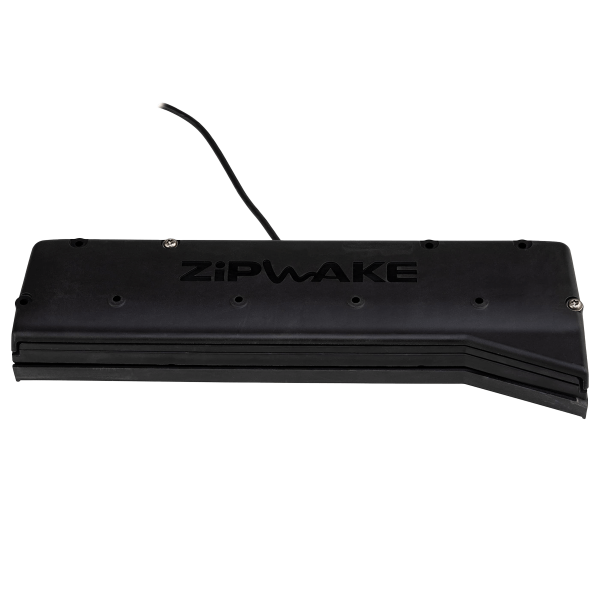

ZIPWAKE - Series S "Chine" Interceptor

Robust, precise and responsive, the Series S "Chine" interceptor is an ideal solution to improve stability, comfort and navigation performance. Its position on the chine usually generates lift equivalent to that of a wider straight interceptor installed further inward. This makes it a particularly smart choice for fine-tuning system sizing.

Designed for sharp-angled hulls, the chine version ensures stable handling, optimized efficiency and consistent comfort, even in challenging sea conditions.

Suitable for chine hulls

The chine version of the Series S interceptors is specially designed to fit hull shapes with a sharp angle between the bottom and the side. This model ensures optimal contact and maximum efficiency on hulls with a distinct chine.

Equipped with a submersible brushless electric servo (12 to 24 V DC), it delivers fast action, no calibration, and precise positioning. The 1.5-second response time significantly outperforms traditional systems.

Built for maximum durability, it is made from non-corrosive materials and is easily mounted thanks to an integrated mounting plate. Two self-sealing thru-hull fitting options are available: visible above the waterline or fully hidden behind the interceptor.

FEATURES OF ZIPWAKE SERIES S CHINE INTERCEPTORS

Model	IT300-S	IT450-S
Length	300 mm	400 mm
Weight	2.1 kg	2.9 kg
Maximum speed	60 knots
Blade	30 mm
Blade speed	20 nm/s
Cable length	3 m
Connector	5-pin round M12
Connector diameter	14.5 mm
Power supply / max consumption	12V to 32V / max. 25W
Protection rating	IP68

KEY FEATURES:

Accurate and efficient installation without recalibration
Ideal for sharp-angled or complex hull geometry
Optimized lift thanks to chine mounting
Performance comparable to a larger model mounted internally

BOX CONTENTS:

1 - "Chine" Series S Interceptor (model dependent)
1 - 3 m cable
1 - PDF documentation
