Italwinch

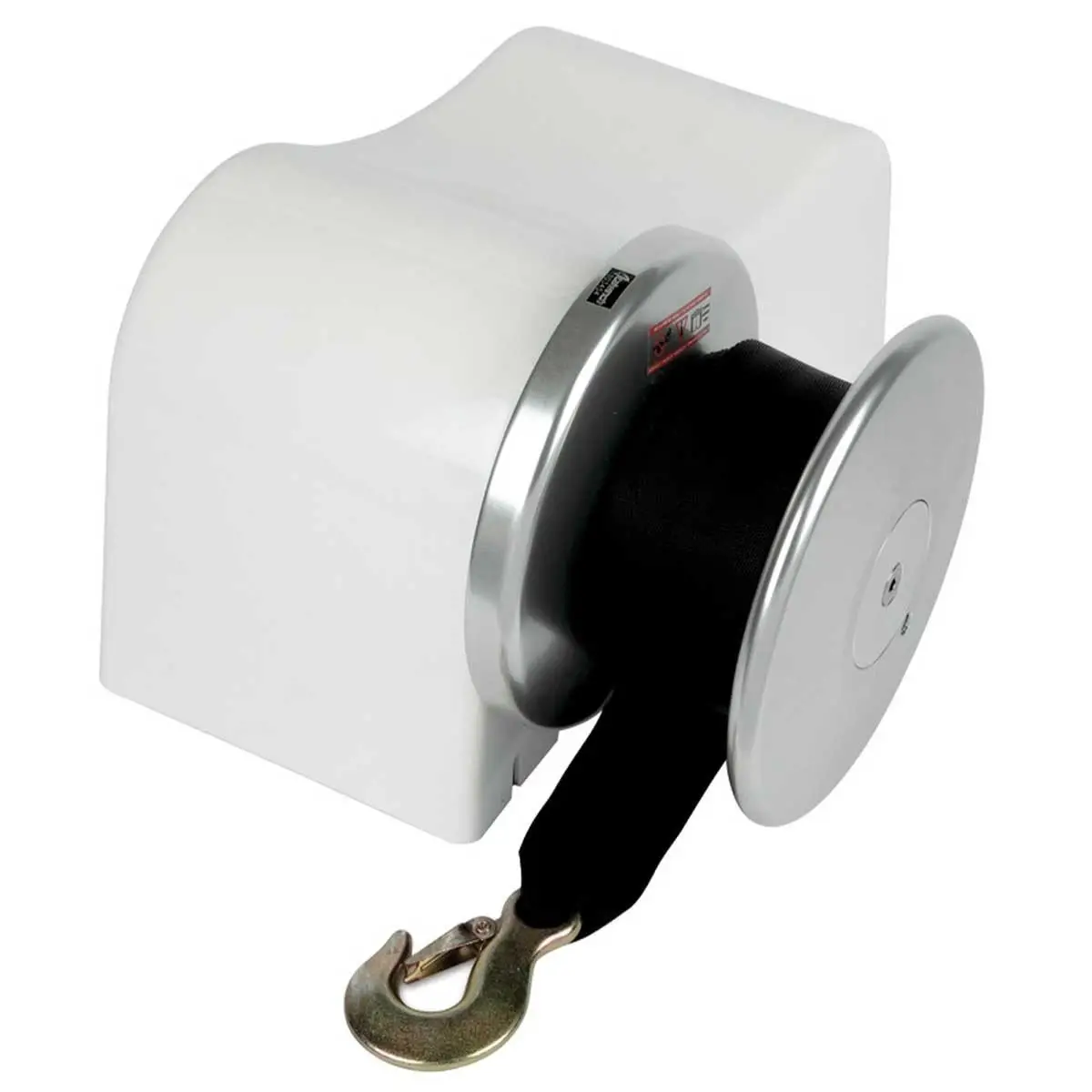

Tender winch Achill 1000 W 24 V

Ref. OSC-02.619.24

The Achill 24 V 1000 W Italwinch tender winch makes it easy to launch and raise small tenders. It can be installed vertically or horizontally. Designed for use in marine environments, it requires regular maintenance to keep it in good condition.

Use only for tenders up to 1500 kg.

⚠️ Strap not supplied

from
€1,416.09 Tax included
-12%
€1,624.07
Pay in installments
3x 4x 10x 12x 24x 60x
or pay in
24x 60x
Quantity
Choose a version
In stock in 8 to 10 days
Fast delivery learn more
1416 loyalty points Earn €14.16 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
  • In the same family
    • Article

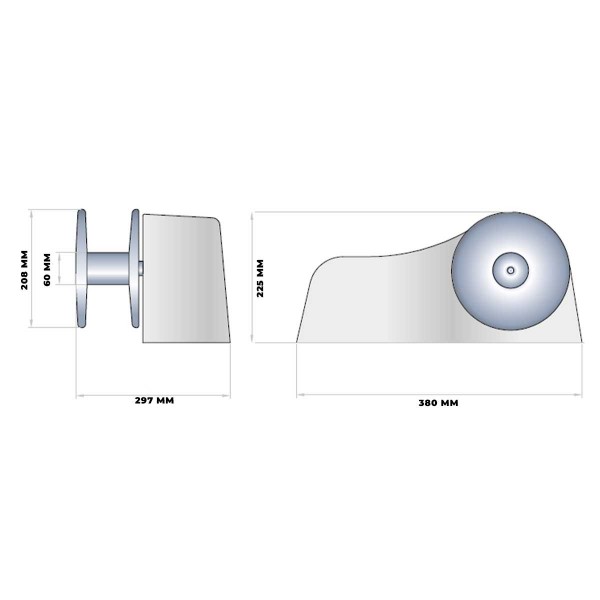

    Motor - W Motor - V Max. instantaneous drawdown Load capacity for lifting kg Workload absorption Max. recovery speed m/min Max. strap length m peso Optional strap misure mm - A misure mm - B misure mm - C misure mm - D misure mm - E
    In stock in 8 to 10 days
    500 12 650 90 60 12 7,5 8,5 OSC-02.090.01 OSC-02.090.02 360 165 195 150 40
    €649.01
    In stock in 8 to 10 days
    500 24 660 90 32 12 7,5 8,5 OSC-02.090.01 OSC-02.090.02 360 165 195 150 40
    €661.23
    In stock in 8 to 10 days
    1000 24 1500 250 60 11 10 16 OSC-02.090.01 OSC-02.090.02 OSC-02.090.03 380 225 297 208 60
    €1,416.09
    OSC-02.619.24

    Data sheet

    Voltage
    24V
    Product type
    Winch
    Power
    1000 W
    Description

    Italwinch - Tender winch Achill 1000 W 24 V

    The Achill 24 V 1000 W tender winch makes it easy to launch and raise small tenders on board. Compact, it can be mounted horizontally or vertically. The supplied drilling template simplifies installation. Its lifting capacity is limited to 1500 kg.

    Designed for use in marine environments, it requires regular maintenance to avoid the effects of salt. The power supply must be protected from splashing water. It reduces effort when maneuvering at anchor or in port.
    treuil achill

    Simple, efficient tender winch

    The Achill 1000 W 24 V is designed for tender hoisting only. It does not replace a mooring point and is not suitable for any other use. It allows you to raise and lower your tender in a controlled manner.

    • Power supply: 24 V
    • Power rating: 1000 W
    • Maximum load: 1500 kg
    • Reduces arm-powered handling
    • Switch off when not in use

    For greater safety, accompany the stowing and lifting phases. Before each maneuver, check that the area is clear of bathers and other boats.

    ACHILL WINCH TECHNICAL SPECIFICATIONS

    Achill 500W 12V

    Achill 500W 24V

    Achill 1000W 24V
    Motor power 500 W 1000 W
    Voltage 12 V / 60 A 12 V / 32 A 24 V / 60 A
    Max. pulling capacity 650 kg 660 kg 1500 kg
    Working load 90 kg 250 kg
    Lifting speed 12 m/min 11 m/min
    Weight 8.5 kg 8.6 kg 16 kg

    MAIN POINTS :

    • Tender winch 24 V 1000 W
    • Anodized aluminum headstock
    • Vertical or horizontal mounting
    • Electrical protection recommended
    • Maximum strap length: 10 m

    BOX CONTENTS :

    • 1 - Achill 1000W 24V winch with geared motor
    • 1 - Switch and relay box
    • 1 - Drilling template
    • 1 - Screw kit
    • 1 - PDF documentation

    Download

    Achill winch manual Italwinch

    Operator's manual Achill dinghy winch Italwinch (IT-GB)

    Download (484.27k)
