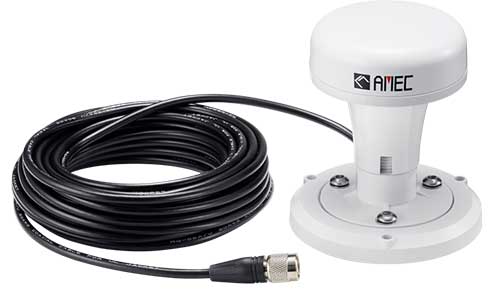

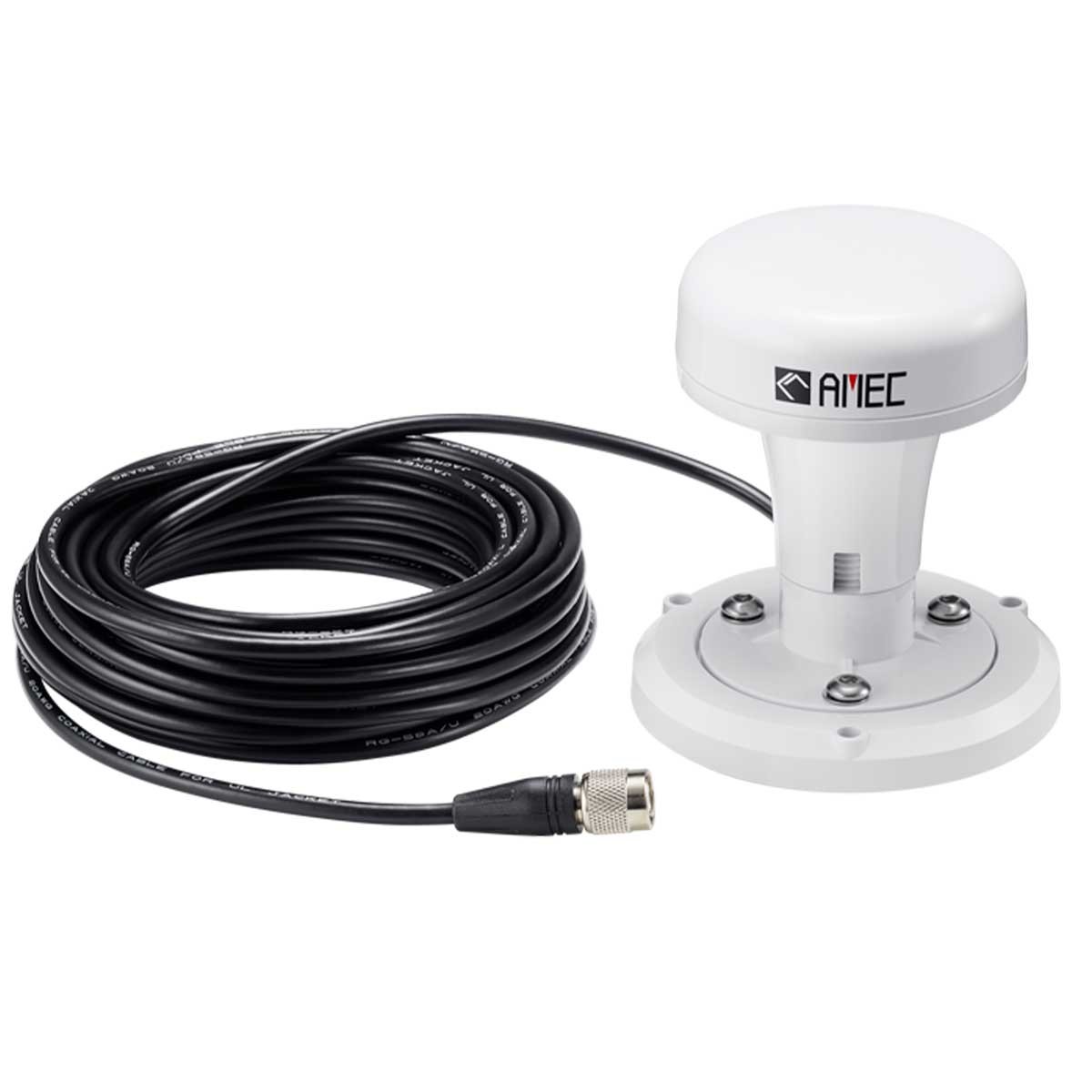

GA-25 31dBi Passive GPS Antenna for Camino, B62X, B65X
Ref.
MCT-AMEC-GA25
The GA-25 GNSS antenna receives GPS, GLONASS, Galileo, and BeiDou signals for compatible navigation devices, including the Camino B62X and B65X series. Equipped with a built-in low-noise amplifier, it offers a GPS gain of 31.7 dB. IP68 waterproof, it withstands marine conditions and features a 10-meter RG-58 cable with a TNC connector.
MCT-AMEC-GA25
Data sheet
- Product type
- GPS antenna
AMEC - GNSS ANTENNA GA-25 - GPS, GLONASS, GALILEO, AND BEIDOU
The AMEC GA-25 GNSS antenna receives satellite signals for compatible navigation devices, including the Camino, B62X, and B65X series. It works with the GPS, GLONASS, Galileo, and BeiDou constellations and provides the position data used by connected devices.
It features a low-noise amplifier, an IP68-rated waterproof housing, and a 10-meter cable. These features make it ideal for onboard installation, where equipment is exposed to marine conditions.
 |
MULTICONSTELLATION GNSS RECEPTIONThe GA-25 receives signals from the four satellite constellations: GPS, GLONASS, Galileo, and BeiDou. Compatible devices use this GNSS data to determine the boat’s position and speed. Its built-in low-noise amplifier improves signal reception. It features a typical gain of 31.7 dB for GPS, with a noise level of 0.95 dB.
This external GNSS antenna is suitable for AIS, GPS trackers, and compatible navigation instruments that require external satellite reception. |
KEY FEATURES:
|
BOX CONTENTS:
|
