Evolution DBW autopilot for Volvo IPS/Aquamatic systems

THE EV-2 CENTRAL SENSOR FOR STEER-BY-WIRE DRIVES

The EV-2 steer-by-wire sensor is designed for the most advanced steer-by-wire system, EV-2 connects directly to the Raymarine SeaTalkng bus and also includes a dedicated CAN Bus port for direct connection to steer-by-wire systems such as ZF Pod, Volvo IPS and Optimus.

The single CAN Bus connection to EV-2 makes installation even simpler.

BENEFITS OF THE EV-2 CENTRAL SENSOR

• Precise continuous monitoring of heading, pitch, roll and yaw, enabling the autopilot to take instant account of sailing conditions and changes in ship dynamics.
• Flexible installation options. On- or below-deck installation.
• Simple, direct SeaTalkng connectivity to autopilot control panel and computer.
• Transistorized sensor technology offers dynamic accuracy of less than 2 degrees under all sailing conditions.
• Automatic compensation for ship's magnetic fields and reliable heading accuracy in extreme northern and southern latitudes.
• Fast, reliable heading data for MARPA modes, radar overlay and heading on Raymarine multifunction displays.

P70s CONTROL PANEL

Featuring an ultra-bright , anti-glare 3.5" LCD display, it offers high visibility and large digits for easy readability. This control panel is easy to read thanks to its bright colors, high contrast and wide viewing angle.

This version of the controller has no rotary knobs, but 8 large pushbuttons for improved ergonomics and grip.

The p70s displays autopilot information in a variety of formats, with 3-step settings for leisure, cruising or performance.

SEATALK NG WIRING KIT

This kit includes the following items:

• 2 - SeaTalk terminations
• 2 - SeaTalk T-connectors
• 1 - Power cable (0.4m)
• 1 - SeaTalk main cable (5m)
• 1 - SeaTalk 5-pin terminal block
• 1 - SeaTalk branch cable (0.4m)

MAIN POINTS :

• Easy installation
• Precise, permanent heading control
• Maximum recommended displacement: 6 T

BOX CONTENTS :

• 1 - ECI-100
• 1 - Volvo Engine EVC cable (1m)

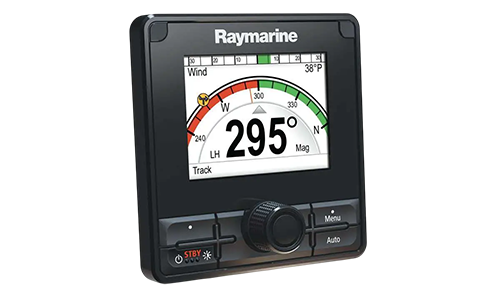

• 1 - Control panel p70Rs
• 1 - Evolution EV2 sensor
• 1 - Seatalk NG wiring kit
• 1 - Volvo Engine Y-Loom cable
• 1 - EV-2 cable kit
• 1 - PDF documentation
