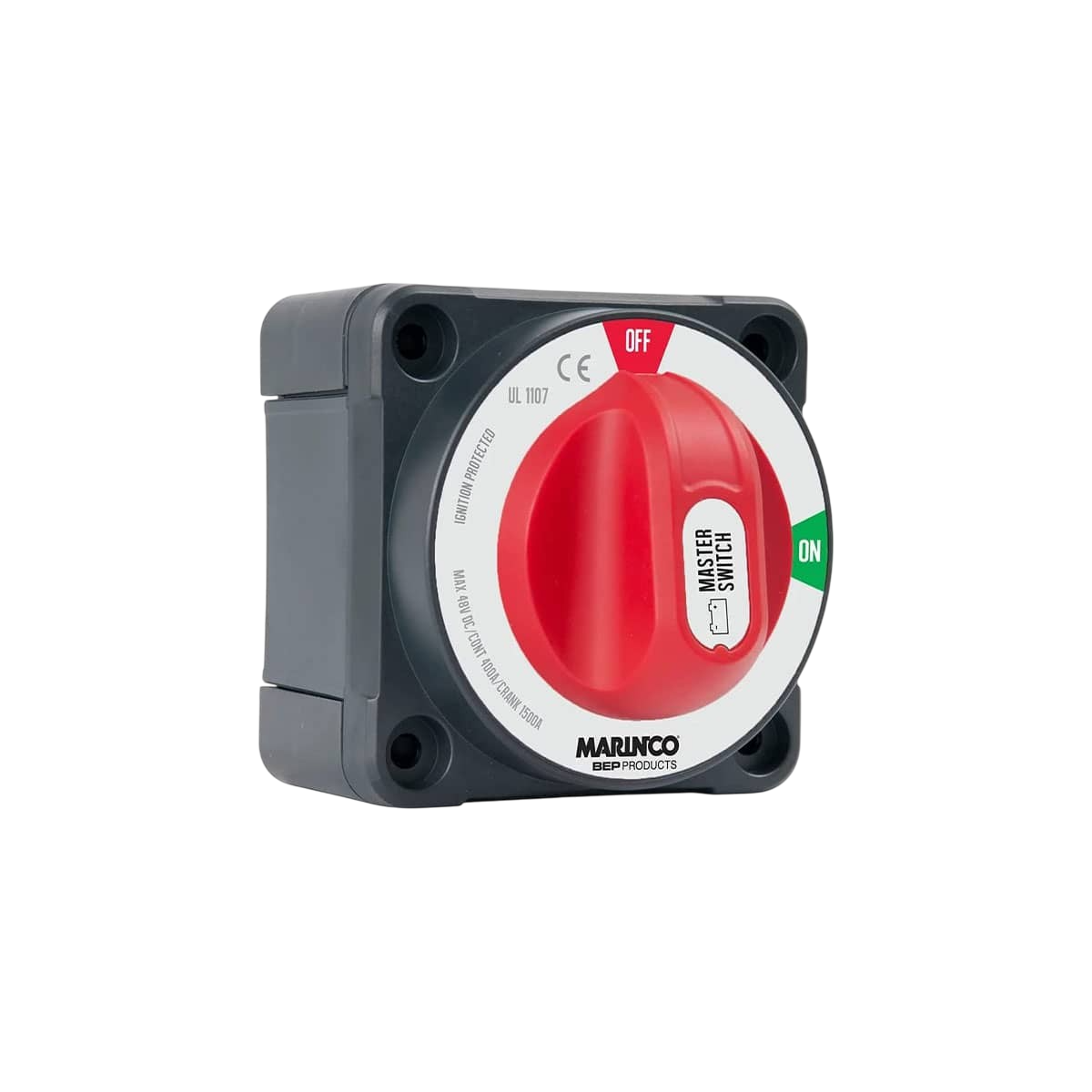

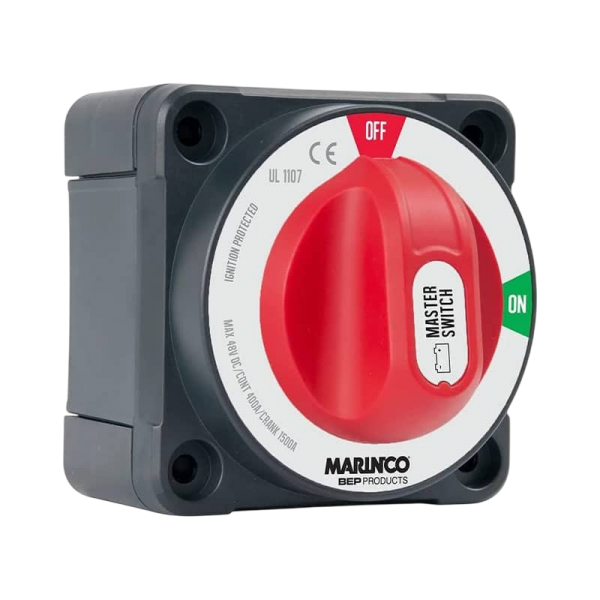

Bipolar battery switch 400A - Pro Installer
Ref.
770-DP
Bipolar battery switch 400A continuous, model 770-DP
- Manual bipolar model 400A continuous, 600A intermittent
- intermittent (5 min.) and 1500A peak (10 sec.).
- Connections on M10 (3/8'') studs.
- Protection rating: IP66
- Front-mounted or flush-mounted (Ø 92mm).
- Compatible with Pro Installer range.
770-DP
Bipolar battery switch 400A - Pro Installer
400A continuous bipolar battery switch (600A intermittent, 1500A peak)
Voltage 12/24/48V
Detachable side tabs for cable routing
Front or flush mounting - robust construction
Intelligent, ergonomic integration with the rest of the Pro Installer range for enormous space savings
10 mm studs - removable key
Dimensions: 98 x 98 x 92 mm
Supplied in blister pack
