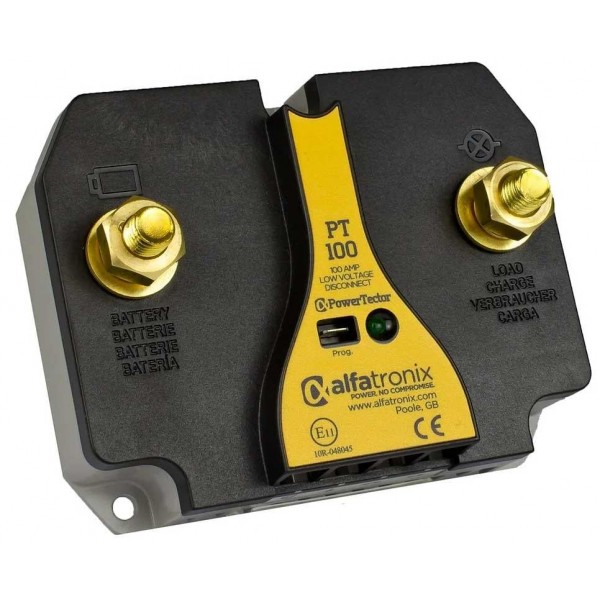

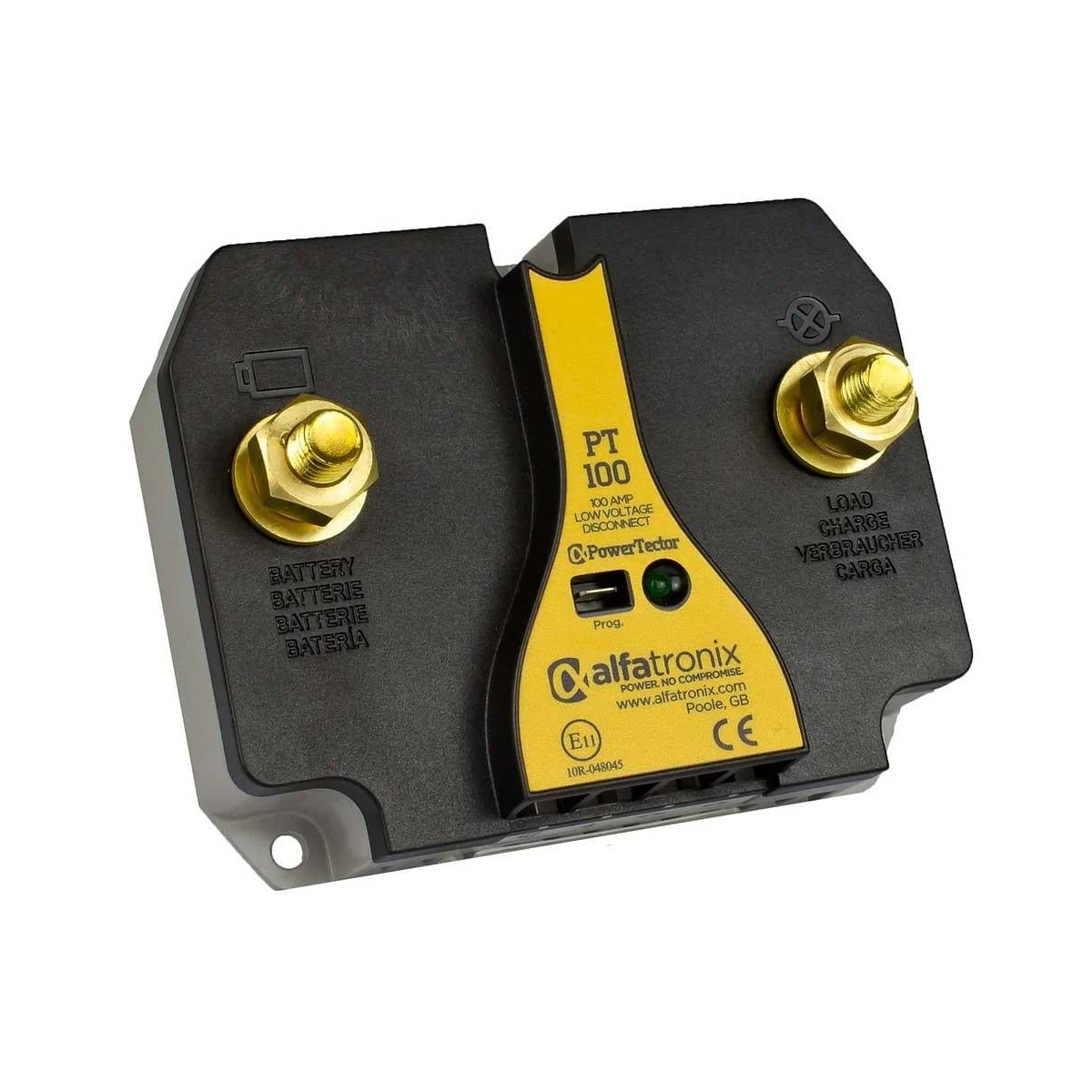

100A continuous battery protector

Ref. PT100

The PowerTector battery protector is a device that monitors source voltage and disconnects equipment from the battery if the voltage falls below a predetermined level. This ensures sufficient battery voltage for starting the engine. Considering that completely discharging a lead-acid battery causes total damage to the battery or significantly shortens its lifespan. The PowerTector battery protector is a device that monitors source voltage and disconnects equipment from the battery if the voltage falls below a predetermined level.

Read more
€129.08
Public price
€174.17
-25%
Price tax excl. / DOM TOM €129.08
Quantity
OUT OF STOCK
By buying this product you can collect up to 129 loyalty points. Your cart will total 129 points that can be converted into a voucher of €1.29.
PT100
Description

ALFATRONIX - Powertector 100A battery protector

The disconnectable Powertector 100A offers real peace of mind thanks to its multiple functions: adjustable cut-off, audible/visual notification, full protection and automatic reconnection.

The device also features a green LED indicating the status of the device (programming, operation or disconnection) and a "Switch" terminal for control via an ignition contact or manual switch.

What's more, an alarm output is integrated: as soon as the voltage drops below the set threshold for 10 seconds, it activates an audible signal or other warning device for a further 50 seconds before switching off. This gives you time to restart the motor or intervene to avoid power interruption.


KEY FEATURES

  • IP65 protection
  • Anodized aluminum housing
  • 10 predefined configurations
  • Nominal continuous current: 10A
  • Dimensions: 124 x 97 x 51 mm
  • Input voltage range 9-32Vdc
  • Nominal voltage drop: up to 100mV

BOX CONTENTS :

  • 1 - Powertector PT100
  • 1 - PDF documentation





Download

Manual Powertector PT100-PT200

Operating and assembly instructions PT100 battery protectors-PT200 Alfatronix (EN-FR-DE-ES)

Download (452.26k)
