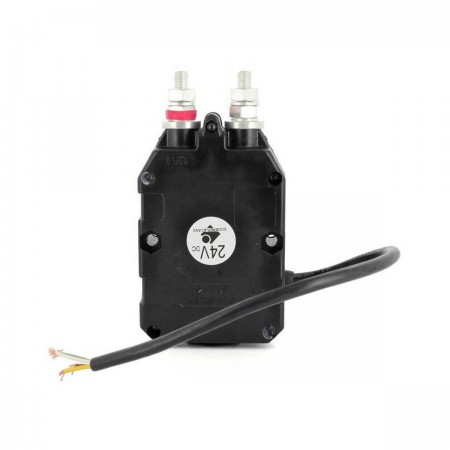

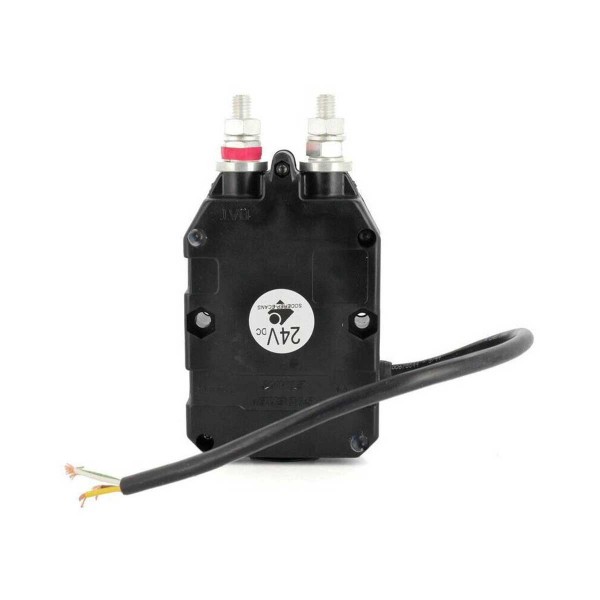

Positive electric bistable battery switch, single pole 24V
Ref.
E313
Bistable relays or battery switches: 2 stable mechanical positions (positions maintained without current in the coil).
M10 main terminals. Protection rating: IP42 for battery switches with manual control.
Model: Soderep Ecans 202313.
E313
Local manual control* and electrical impulse control via push button
Single-pole bistable relay 300A (1500A 15s), positive switching, 24VDC impulse control
* The manual control is a secondary (backup) control that ensures compliance with ISO13297.
Features :
- Protection rating: IP42
- Dimensions: 177 x 91 x 50 mm
- Battery switch type: single-pole
- Voltage: 24 V DC
- Switch type: push button
- Model: 202313
- Height: 50 mm
- Length: 177 mm
- Switching type: electrical
- Weight: 1 kg
- Width: 91 mm
- Current rating: 300 A
- Type: Positive circuit disconnection
