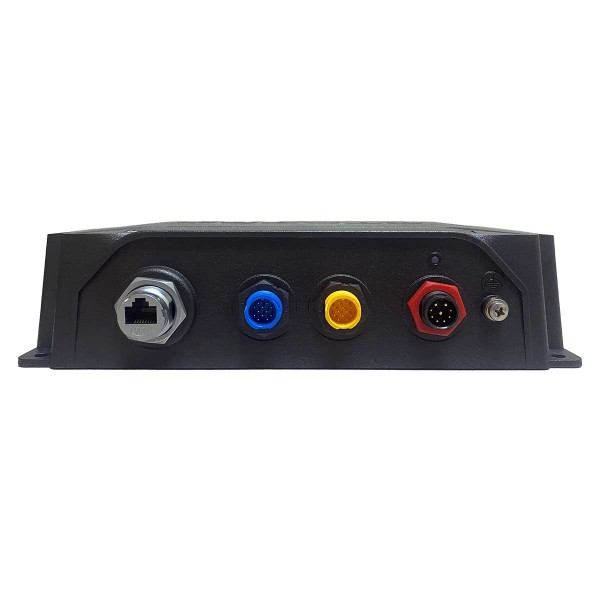

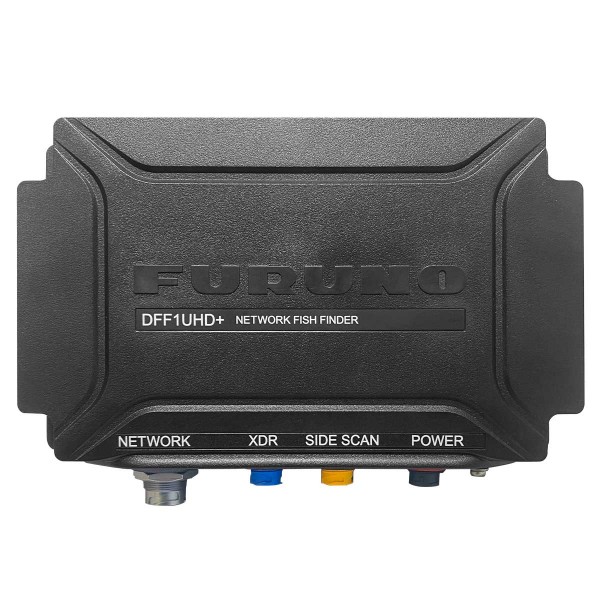

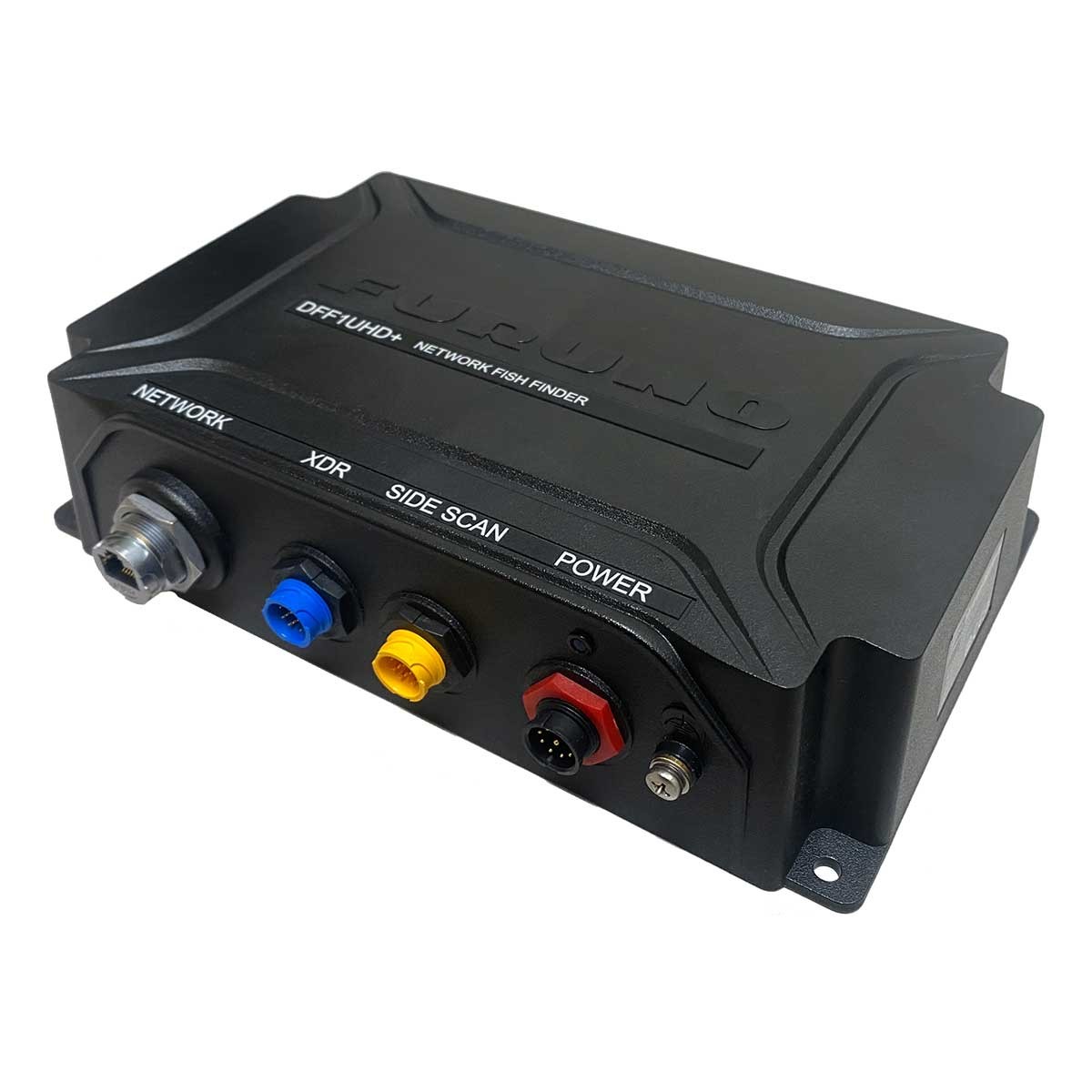

DFF1UHD+ sounder module

Name: DFF1UHD+ sounder module
Brand: Furuno

CHIRP Designed for integration with NavNet TZtouchXL displays, the Furuno DFF1UHD+ combines a CW sounder, a single- or dual-band CHIRP and a Side-Scan in a single package.

Powered by TruEcho CHIRP or CW (Continuous Wave) technologies up to 1 kW and a Side-Scan CHIRP in 230 kHz or 455 kHz, the DFF1UHD+ combines power, reading accuracy and true versatility of use.

FURUNO - DFF1UHD+ FISHFINDER MODULE

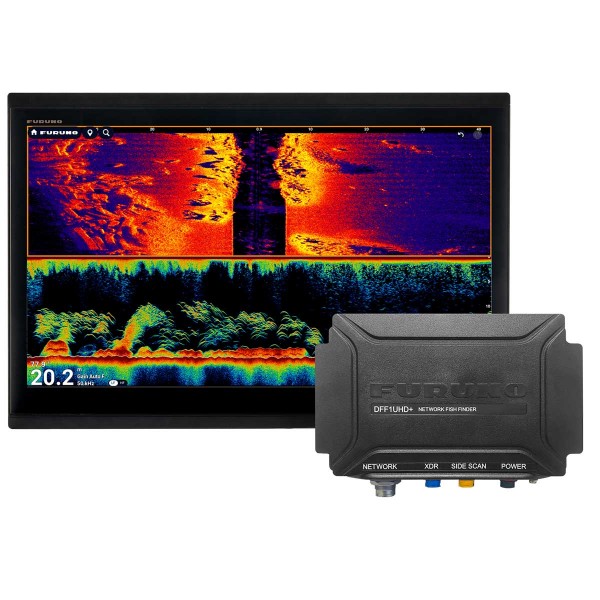

Get on board, plug in, fish. The DFF1UHD+ integrates with NavNet TZtouchXL series displays to provide clean, reliable and easy-to-read readings. In a compact format, it combines an accurate Continuous Wave sounder, a CHIRP single or dual band to separate targets, and a CHIRP Side-Scan to see either side of the boat.

Finally, TruEcho CHIRP technology delivers up to 1 kW for crossing the thermocline and distinguishing fish stuck to the bottom. The new automatic gain adjusts the image to your speed and conditions. And when the sea is rough, swell compensation (via a compatible satellite compass) stabilizes the echo and avoids false signals.

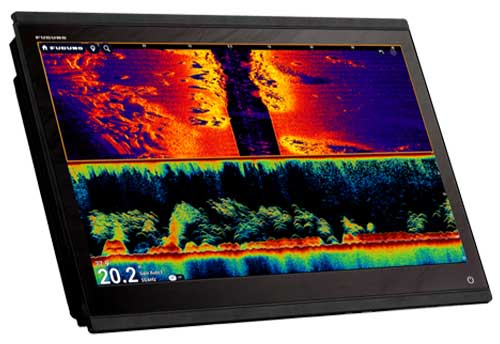

	True ECHO CHIRP & CW One module does it all. The DFF1UHD+ delivers up to 1 kW* in TruEcho CHIRP or CW to cover a variety of bottoms and isolate tight shoals. Network sounder Black Box 300/600 W or 1 kW depending on probe ACCU-FISH and bottom discrimination Stay in control with A-Scope, manual gain or the new automatic gain, and an 8-step adjustable image advance (x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop) to adapt the display to your speed and fishing technique. * mB1100 adapter box required with some CW fishfinders

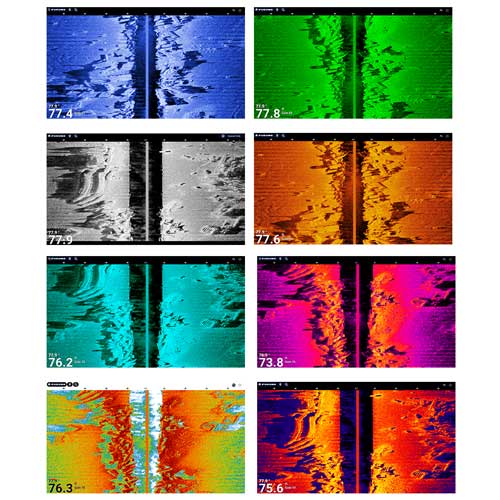

Side-Scan 230 kHz - 455 kHz Side scan CHIRP for reading to the left and right of the boat, with a range of up to 220 m on each side. Designed to locate structures and target quickly. Frequencies 230 kHz or 455 kHz Up to 220 m on each side 8 legible color palettes 230 kHz compatible probes : PR904, SS904 through probe, TM904 TA probe. 455 kHz compatible probes : PR903, SS903, TM903.
