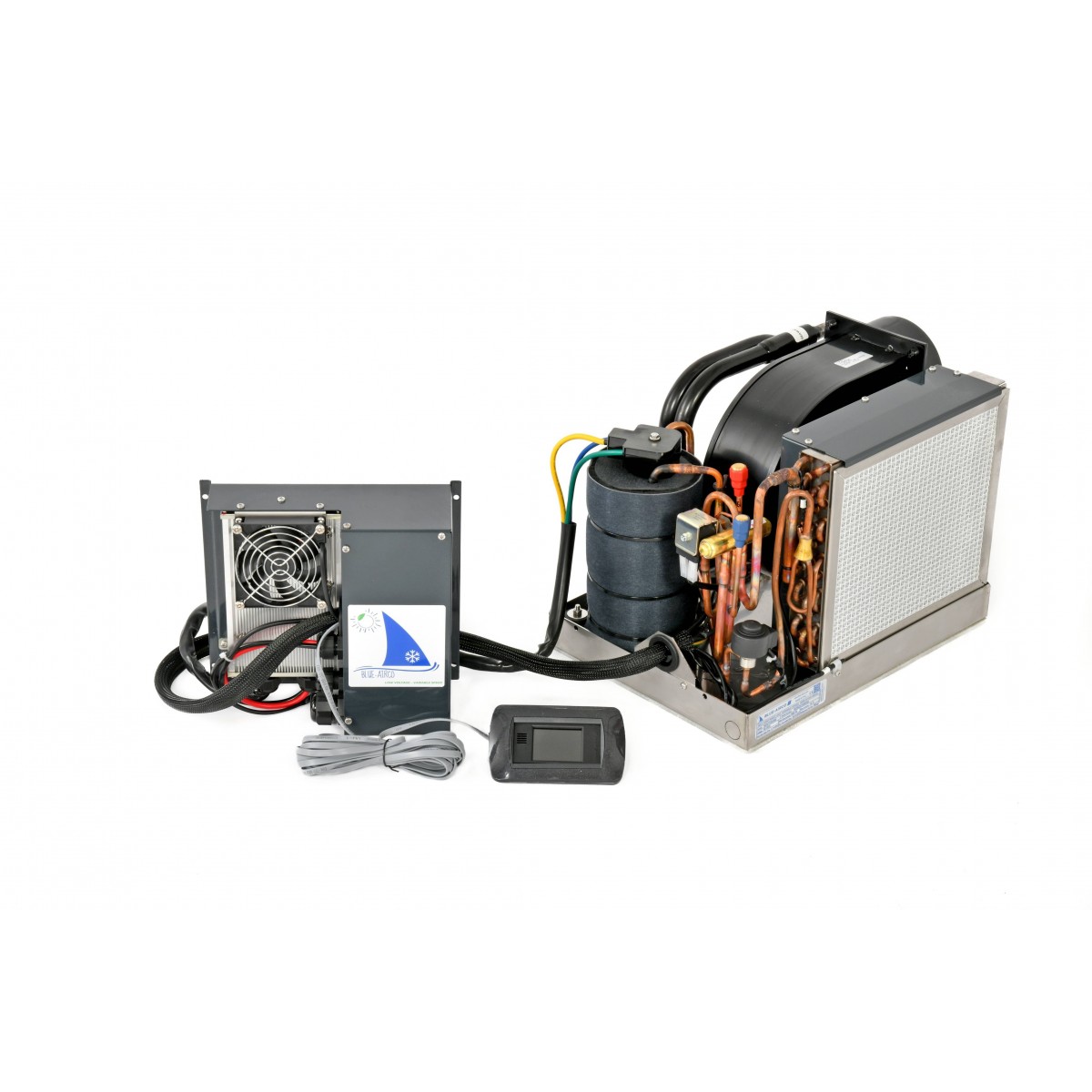

Reversible monobloc air conditioner 12V DC - up to 8000 BTU/h

REVERSIBLE AIR CONDITIONER

The SDC08V12 cools efficiently when the boat heats up in the sun, and can also heat when the air becomes humid or cool in mid-season.

• 12V DC power supply - ideal for mooring
• Max. cooling capacity: 2.5 kW - 8,400 BTU/h
• Max. heating capacity: 2.3 kW - 8,000 BTU/h
• No inrush current on start-up

Electronic control allows power adjustment without a-jolt, for more consistent comfort and less noise on board.

ECO MODE

The big plus is sobriety. Depending on cabin needs, the unit modulates and can operate in ECO mode to limit the intensity required.

• Max mode: 8,400 BTU/h - 420 W - 35 A
• Med mode: 6,700 BTU/h - 290 W - 24 A
• Min mode (ECO): 4,200 BTU/h - 160 W - 13 A
• Max. electrical power: 540 W - max. current 47 A

For the seawater section, the titanium heat exchanger is highly resistant to corrosion and erosion, and the components are designed for demanding sailing conditions.

MAIN POINTS :

• 12V DC
• Reversible hot-cold
• High-precision control-
• ECO mode 160 W - 13 A
• Quiet operation
• Inverter variable speed
• No inrush current on start-up

BOX CONTENTS :

• 1 - SDC08V12 packaged air conditioner
• 1 - Electrical box
• 1 - Control panel
• 1 - Cable harness
• 1 - PDF documentation
