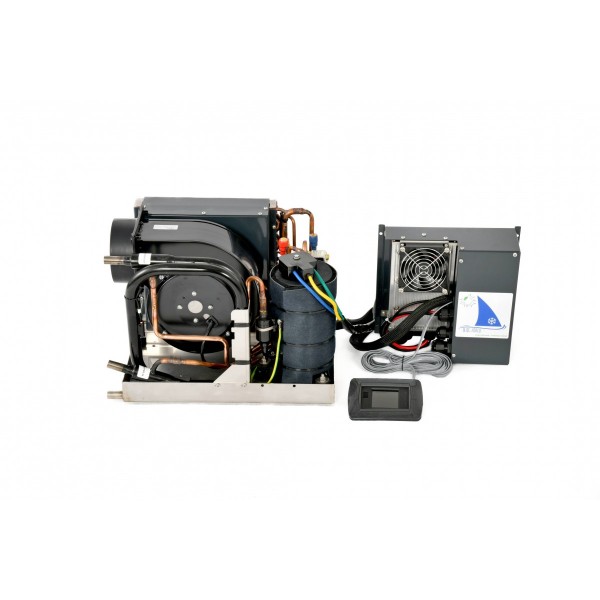

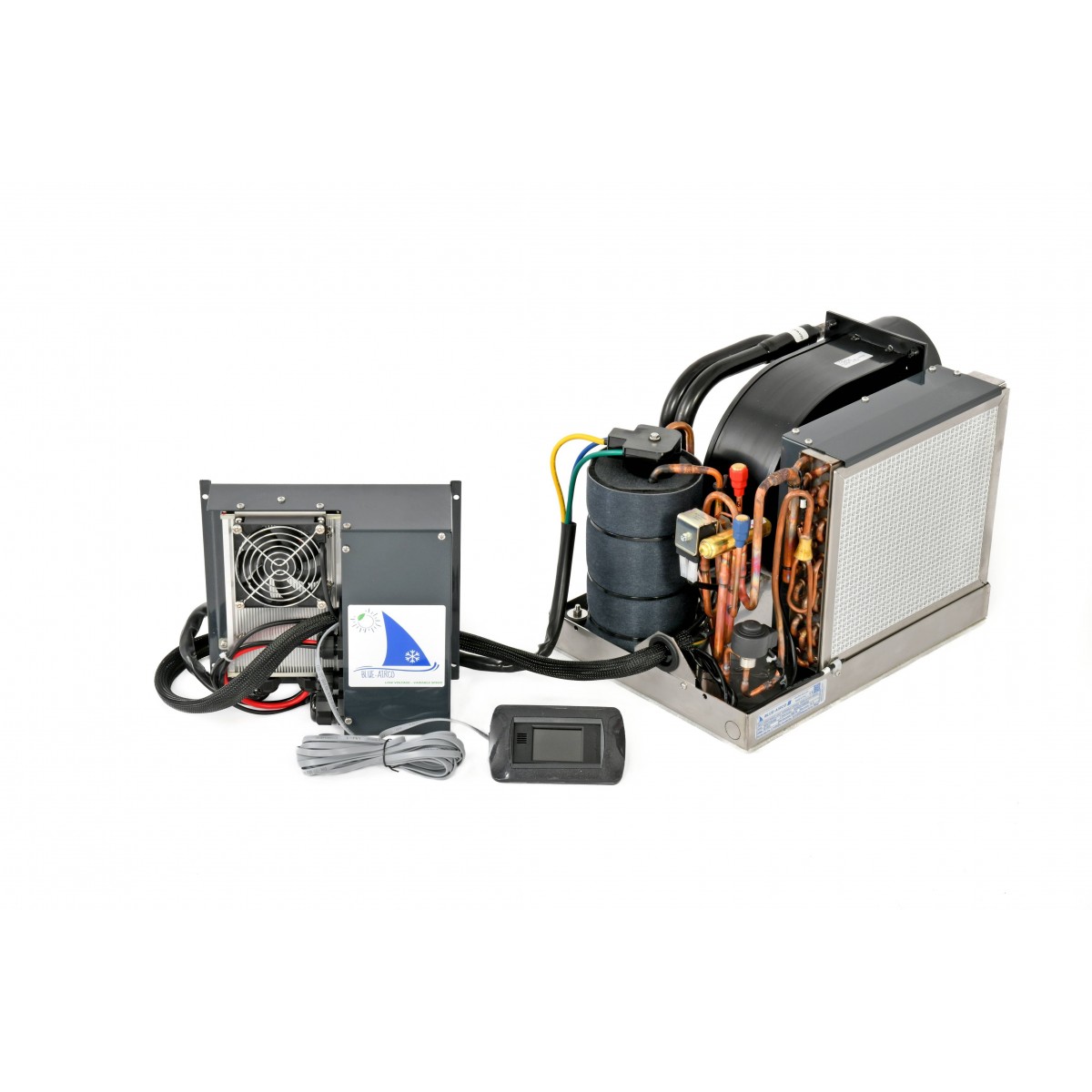

Reversible monobloc air conditioner 24V DC - up to 10,000 BTU/h

REVERSIBLE AIR CONDITIONER

The SDC10V24 cools efficiently when the boat is warm in the sun, and can also heat when the air becomes humid or cool in mid-season.

• 24V DC power supply - ideal for mooring
• Max. cooling capacity: 3.1 kW - 10,700 BTU/h
• Max. heating capacity: 3.2 kW - 11,000 BTU/h
• No inrush current on start-up

Electronic control allows power adjustment without a-jolt, for more consistent comfort and less noise on board.

ECO MODE

The big plus is sobriety. Depending on cabin needs, the unit modulates and can operate in ECO mode to limit the intensity required.

• Max mode: 10,700 BTU/h - 790 W - 33 A
• Med mode: 8,200 BTU/h - 450 W - 19 A
• Min mode (ECO): 5,800 BTU/h - 270 W - 11 A
• Max. electrical power: 820 W - max. current 34 A

For the seawater section, the titanium heat exchanger is highly resistant to corrosion and erosion, and the components are designed for demanding sailing conditions.

MAIN POINTS :

• 24V DC
• Reversible hot-cold
• High-precision control-
• ECO mode 270 W - 11 A
• Quiet operation
• Inverter variable speed
• No inrush current on start-up

BOX CONTENTS :

• 1 - SDC10V24 packaged air conditioner
• 1 - Electrical box
• 1 - Control panel
• 1 - Cable harness
• 1 - PDF documentation
