VHF Antenna RA1225HP - 2.4m
Ref.
OSC-29.995.60

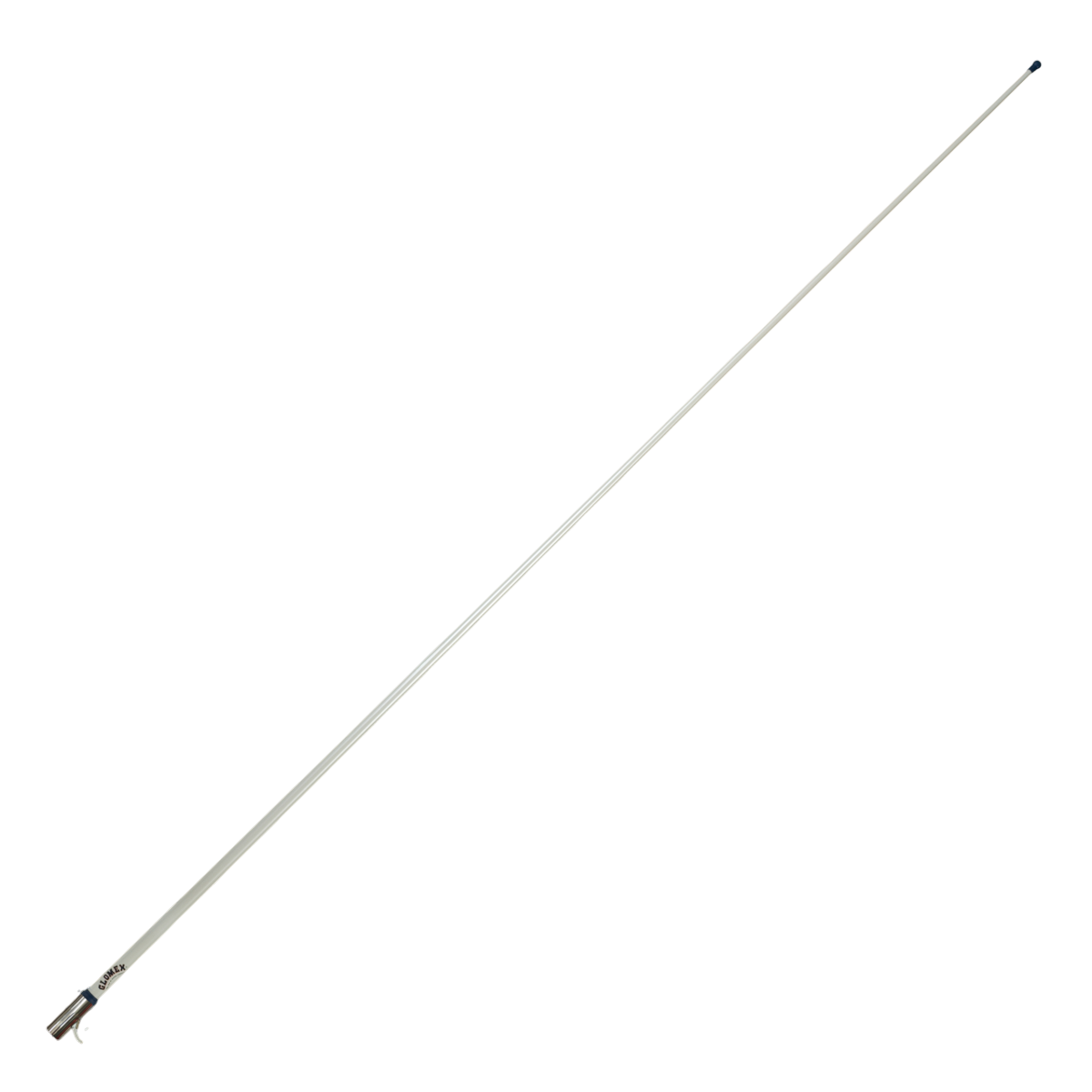

The Glomex RA1225P 2.40 m collinear antenna is designed for VHF applications. Made of double-layer white lacquered fiberglass with a 7.6 m RG8X coaxial cable and FME connector.
6 dB gain, maximum input power 100 W. Stainless steel metal parts, compatible with all Glomex mounts.
OSC-29.995.60
Data sheet
- new
- 📦 Bulky parcel
- Product type
- Antenna
Glomex - VHF Antenna RA1225HP - 2.4m
RA1225HP is a 2.40 m (8') high collinear antenna designed to ensure excellent performance in terms of quality, functionality and design. The RA1225HP features a special integrated stainless steel cable pass-through on the ferrule and is supplied with a PL-259 adapter for easy, fast and safe installation.
Compared with traditional antennas, from which it only retains the appearance, this antenna stands out due to its internal finishes and the characteristics of its whip.
Manufactured with spiral copper wires inserted into brass tubes, this antenna ensures long-range communication and very good radio reception. The fiberglass tube with glossy polyurethane finish resistant to UV rays is reinforced with a double-thickness tube (1.2 mm / 0.05') to strengthen the structure. RA1225HP is a vertically polarized antenna that minimizes reflection effects on flat surfaces.
Included accessories:
- 7.6 m RG-8X coaxial cable with pre-installed FME connector.
- Solderless male PL259 connector/adapter.
Specifications:
- Frequency range: 156/162 MHz
- Gain: 6 dB
- Impedance: 50 ohms
- Polarization: vertical
- VSWR: ≤ 1.3 at 156.8 MHz
- Maximum input power: 100 W
- DC ground: yes
- Length: 2.4 m / 8'
- Weight: 742 g / 26.17 oz
- Termination: cable
