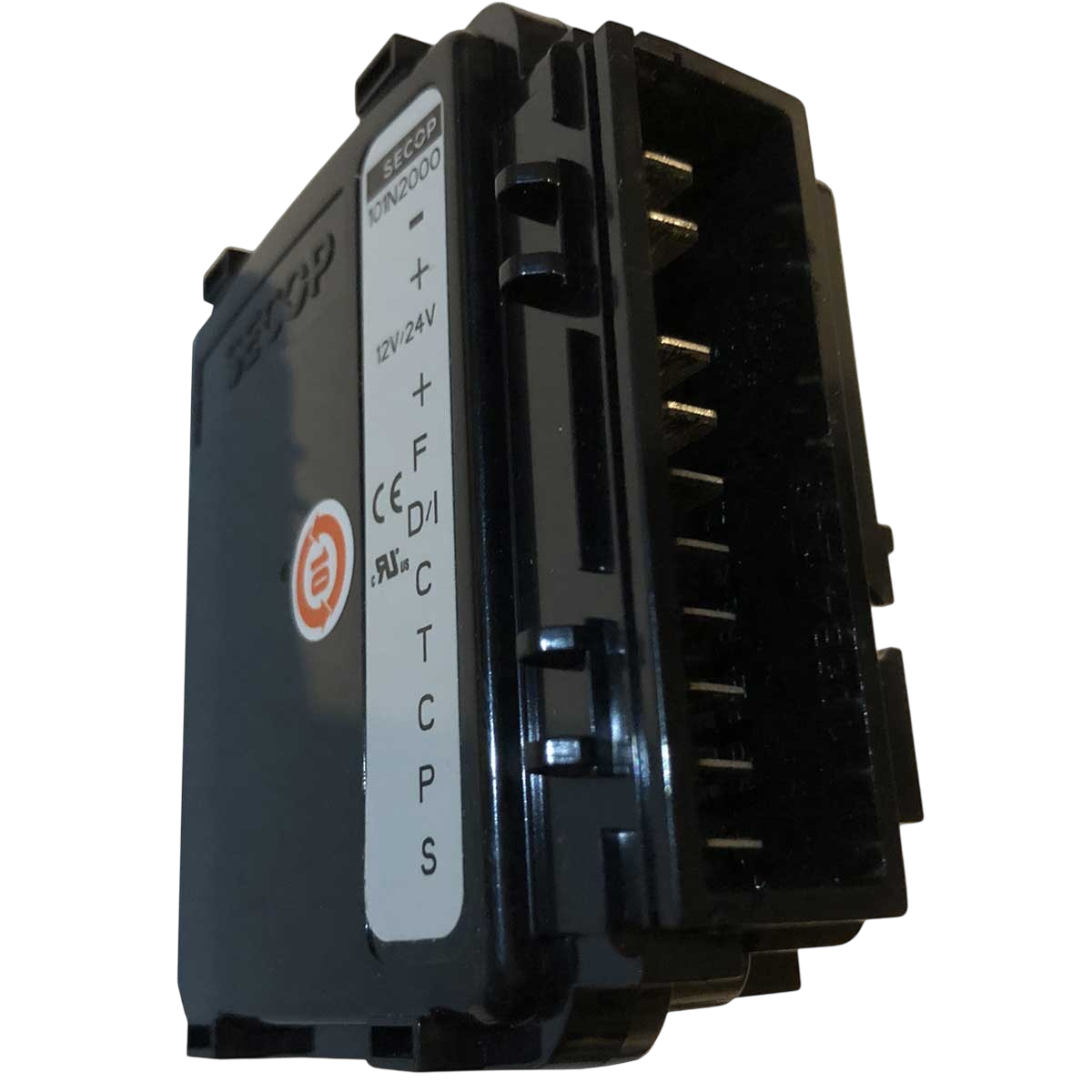

INDEL - WEBASTO - Electronic box for Danfoss BD1.4 F VSD compressor
The Secop 101N2000 electronic control unit plays a crucial role in the control, protection and efficient operation of Danfoss BD80F compressors in a variety of refrigeration and air-conditioning applications, offering advanced control features and fault protection.
It replaces the old Secop 101N1000 box. It can also be used in air-conditioning systems or similar applications on your boat, as long as it is used with either a Danfoss BD1.4 F VSD compressor.
|
 |
ESSENTIAL FOR REFRIGERATION
The Secop 101N2000 electronic control unit is an integral part of the Danfoss BD80F compressor control and protection system:
- Compressor speed control : adjusts compressor speed to optimize cooling performance as needed
- Thermostat control : manages the thermostat, which can be either an on/off switch or an electronic thermostat with NTC temperature sensor
- Eco function : features an eco function to optimize compressor speed to minimize energy consumption
- Battery protection : includes battery protection to prevent excessive discharge when used on limited power sources such as boat batteries
This box is therefore essential for the proper operation and energy efficiency of on-board refrigeration systems. It ensures that the compressor operates at optimum levels, while protecting the system against voltage variations and reducing energy consumption.
|
CONNECTION SPECIFICATIONS SECOP 101N2000 ELECTRONIC BOX
| -/+ |
Battery connection. Nominal voltage 12/24V DC, range 9 to 32V DC |
| +/F |
Fan connection (max 5W), always connect a 12V fan (even in 24V systems) |
| D/I |
Connection of an error LED between + and D/I for simple error indication. Constant current 10 mA |
| C/P |
Connection of a battery protection resistor to select the battery cut-off value |
| C+T |
Connection of a mechanical or mechanical thermostat in series with speed programming resistor or an NTC temperature sensor |
MAIN POINTS :
- Voltage 12/24 V
- Model SEG00043DA
- Numerous monitoring functions
- Compressor control and protection
- Compatible only with BD1.4F VSD compressors
|
BOX CONTENTS :
- 1 - Secop 101N2000 electronic box
- 1 - PDF documentation
|
