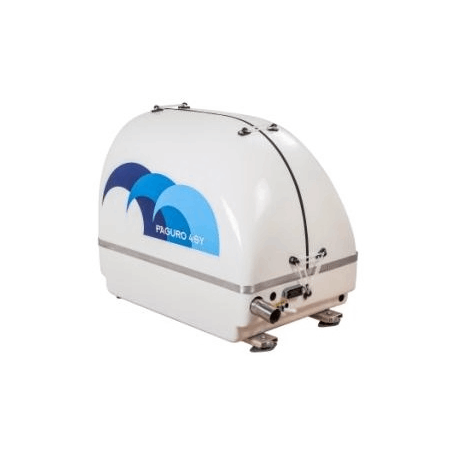

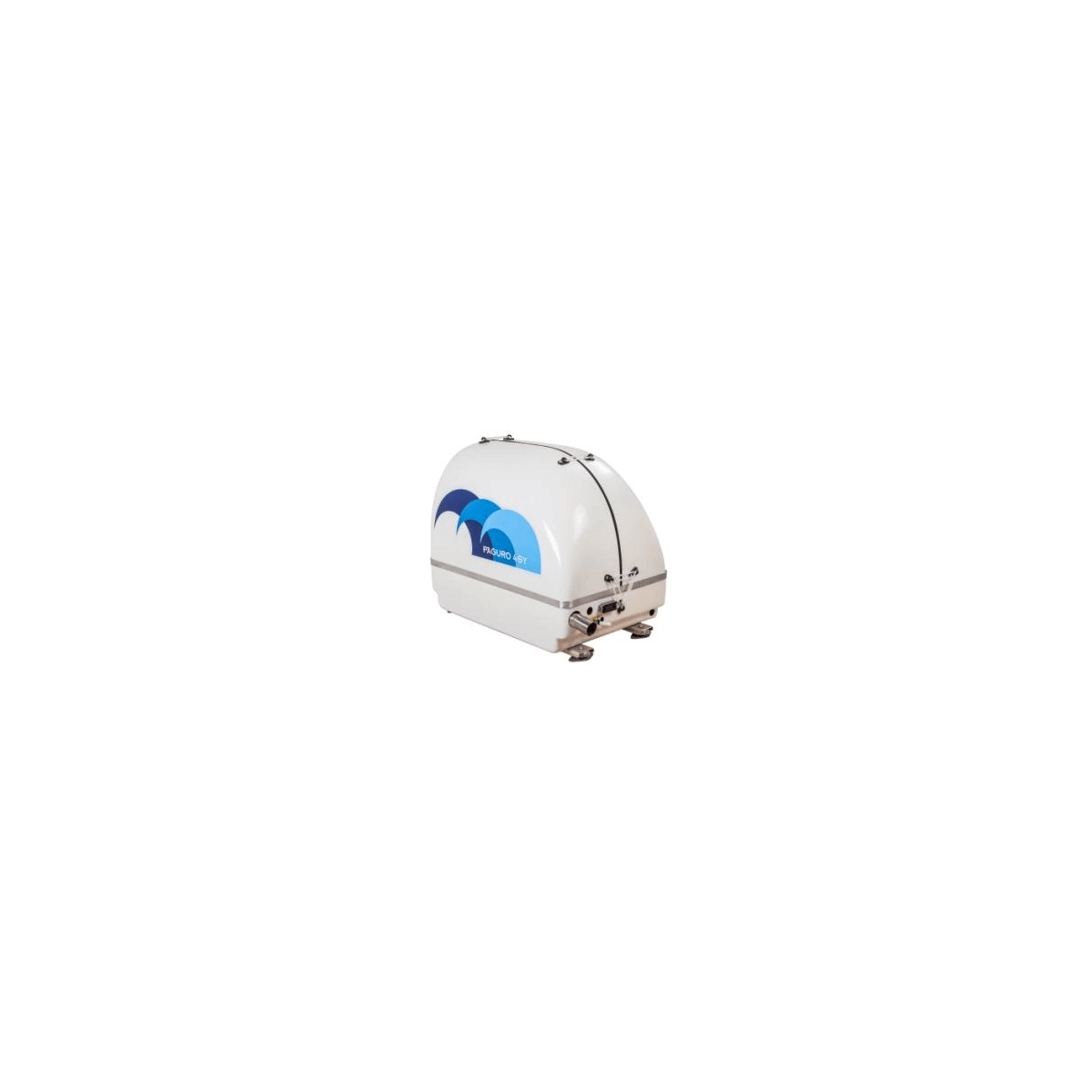

Generator Paguro 4 SY - 3.5 kW - 230V - 3000 rpm

SILENT AND COMPACT

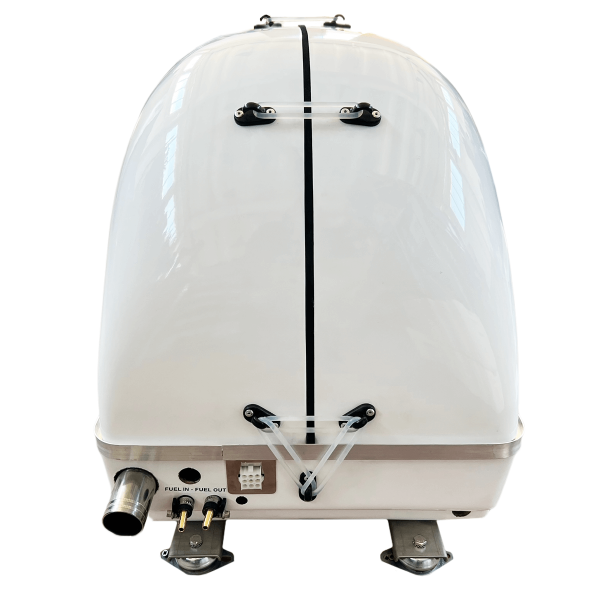

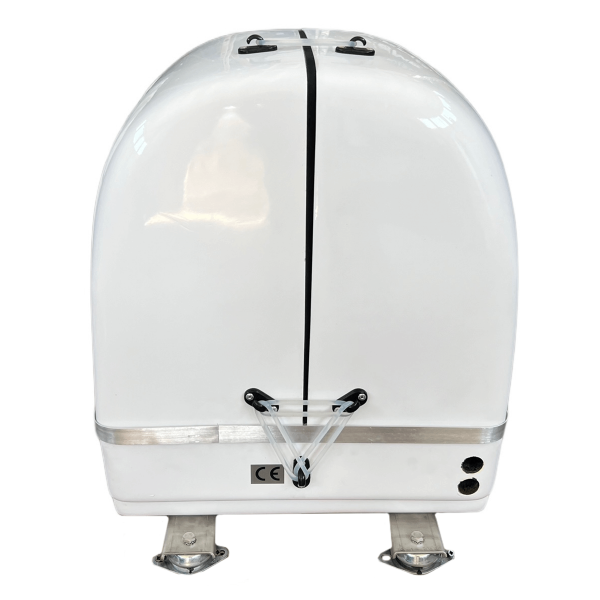

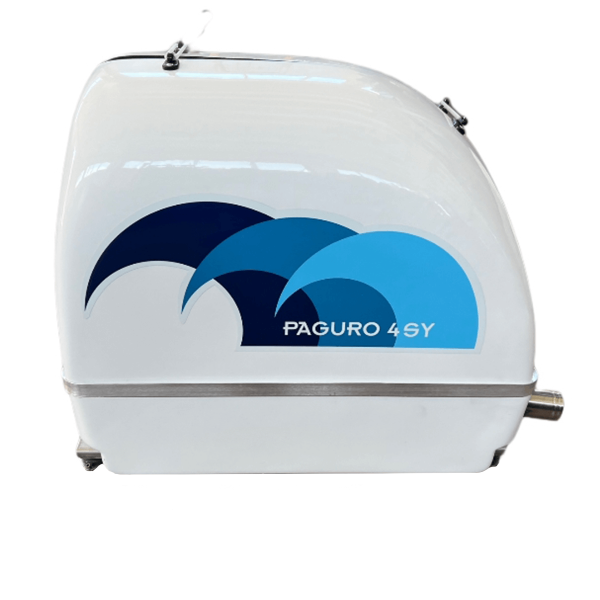

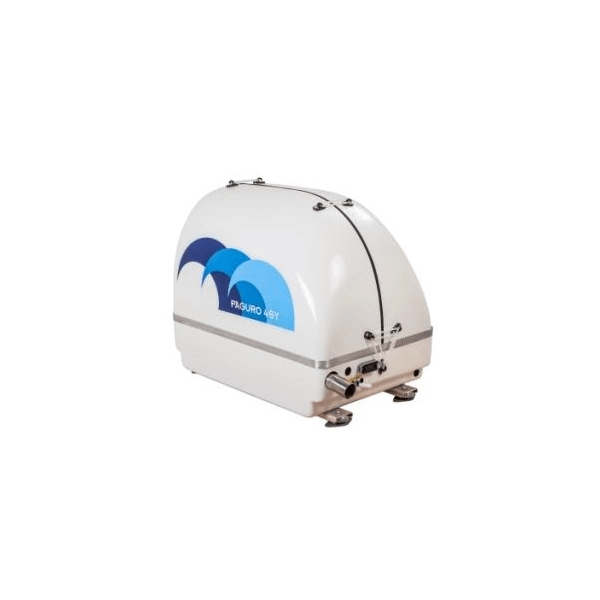

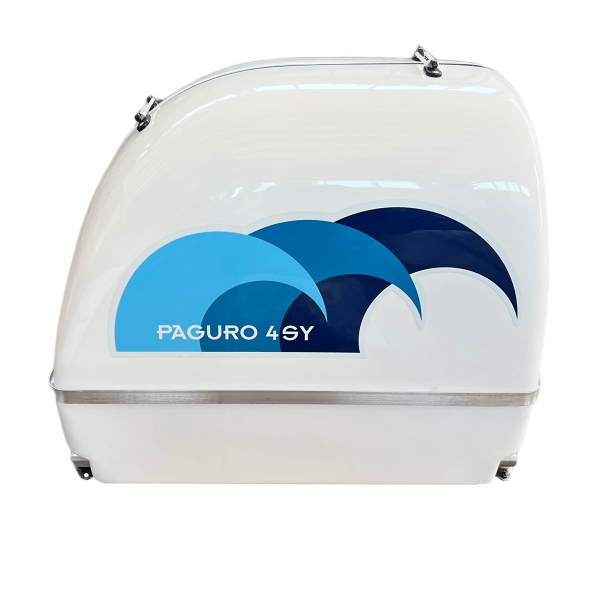

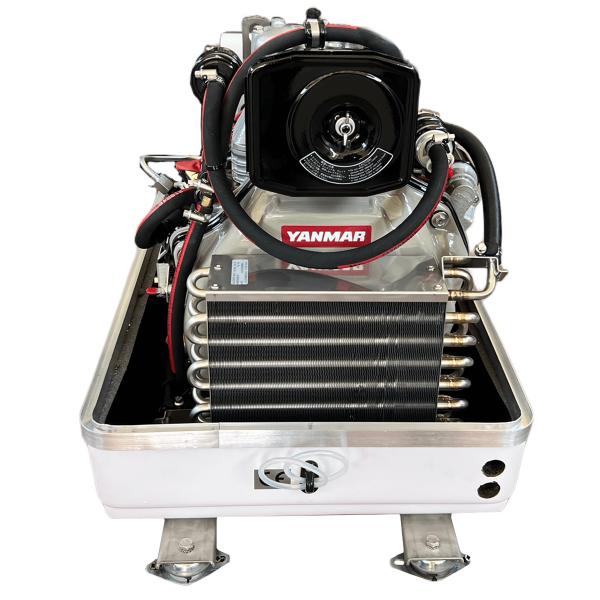

The Paguro 4 SY is encased in a reinforced fiberglass cocoon, lined with sound-absorbing foam. Its water-cooled diesel engine keeps ventilation to a minimum, considerably reducing noise levels.

• Less than 54 dB at 7 meters
• Reinforced, removable insulation
• Internal and external silentblock mounting
• Minimum footprint for sailboats

Acoustic comfort rare for this power and size.

SAFETY AND CONTROL

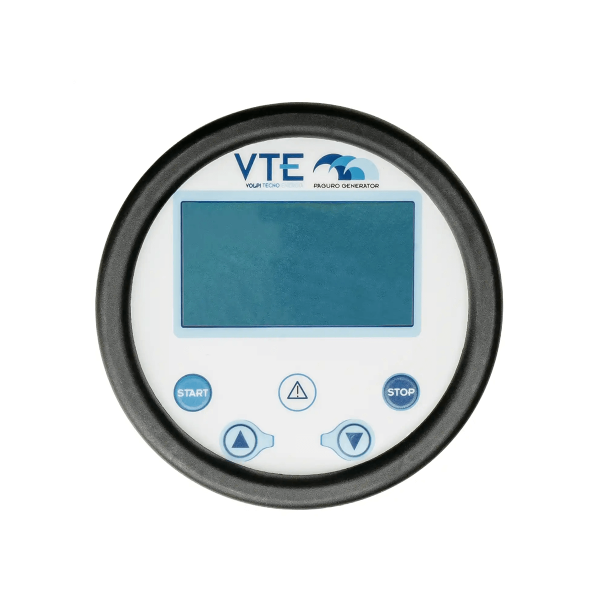

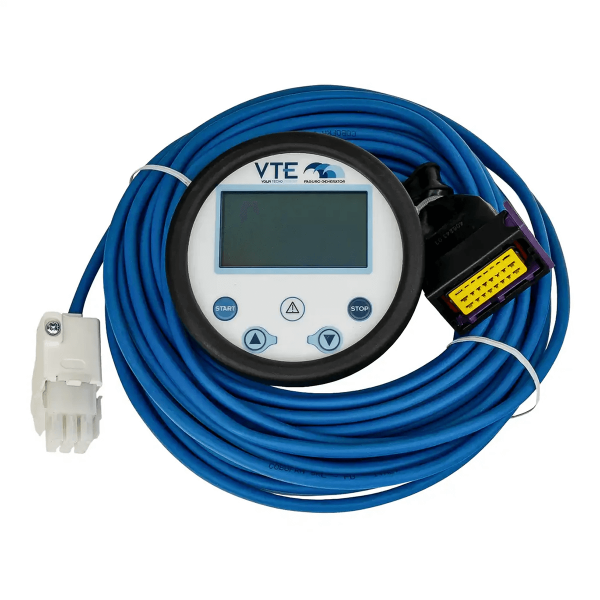

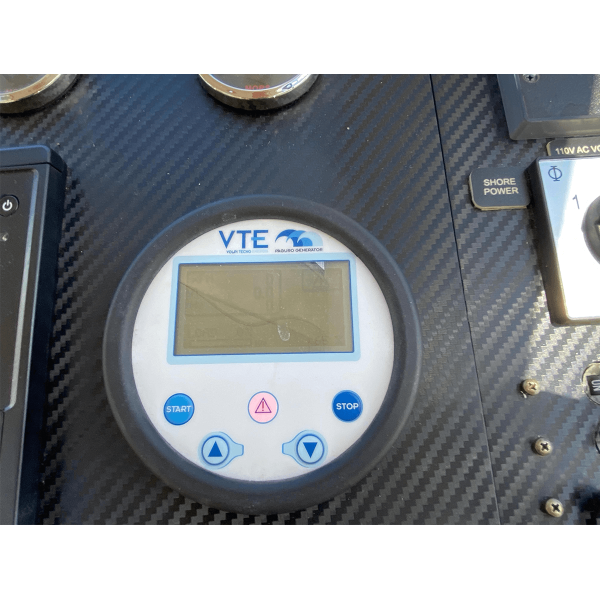

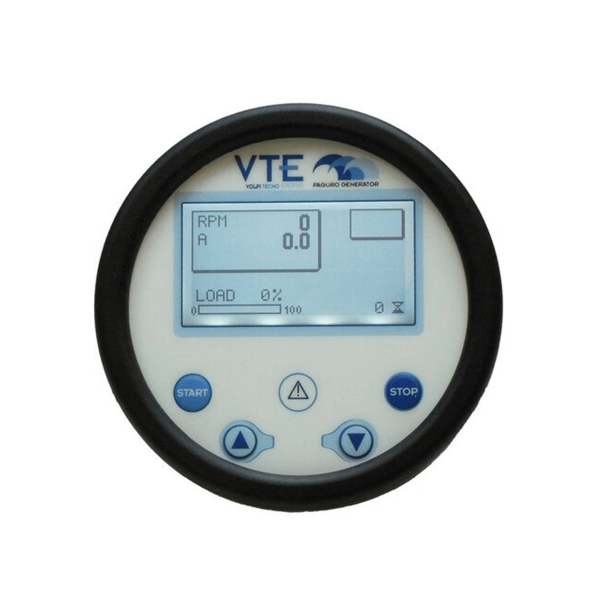

The brushless generator provides a stable sine wave, while the included digital remote control allows you to monitor the status of the genset remotely: voltage, frequency, hours, alarms..

• Remote digital remote control (15 m)
• Full display: hours, power, voltage
• Automatic shutdown in the event of a fault (oil/temperature)
• Clean current for sensitive electronics

Reliable, simple management for autonomous sailing.

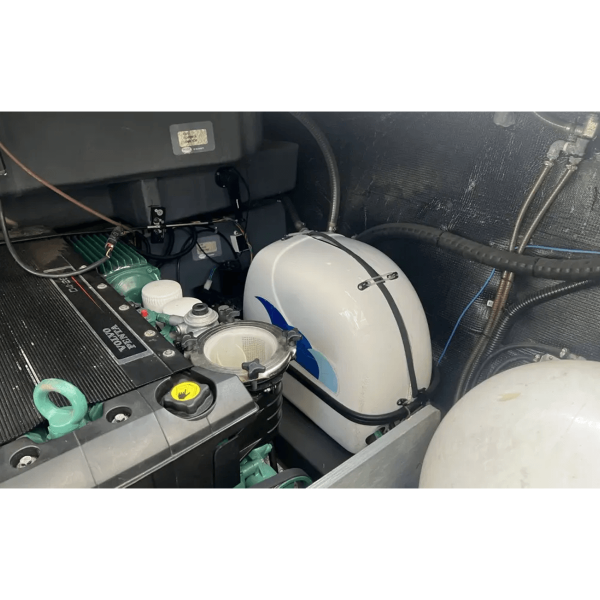

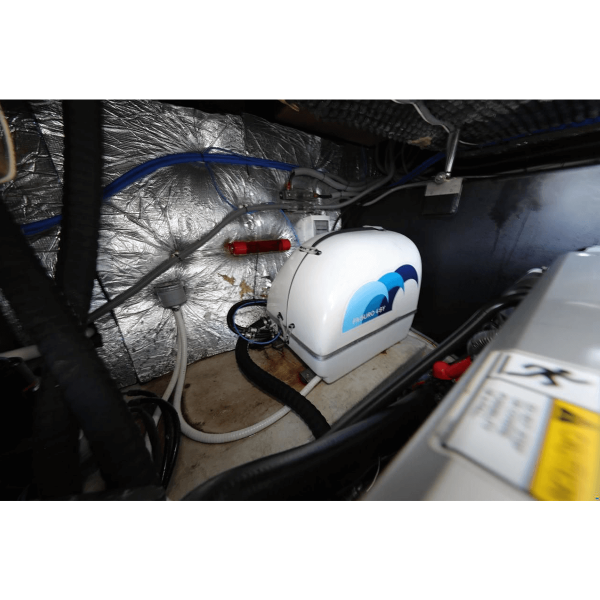

EASY ON-BOARD INSTALLATION

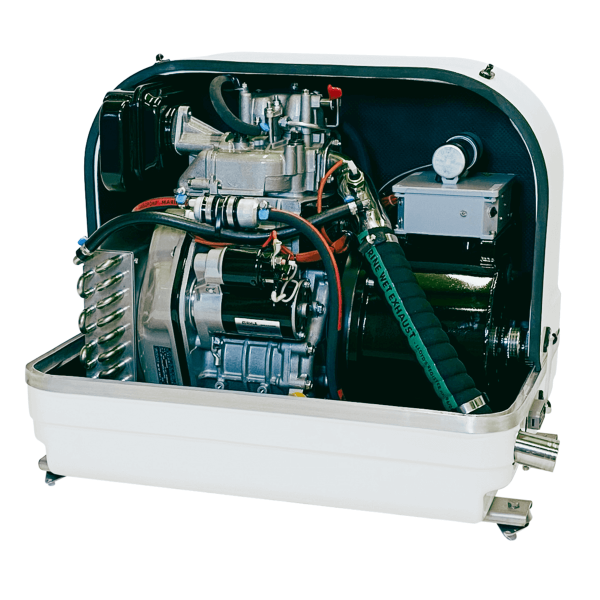

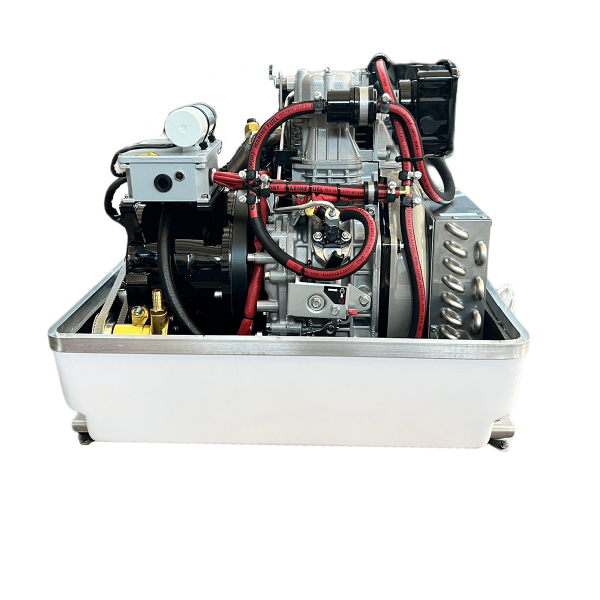

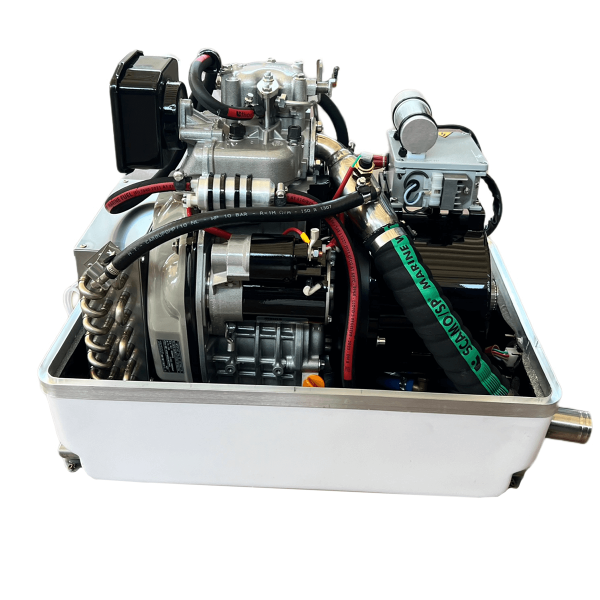

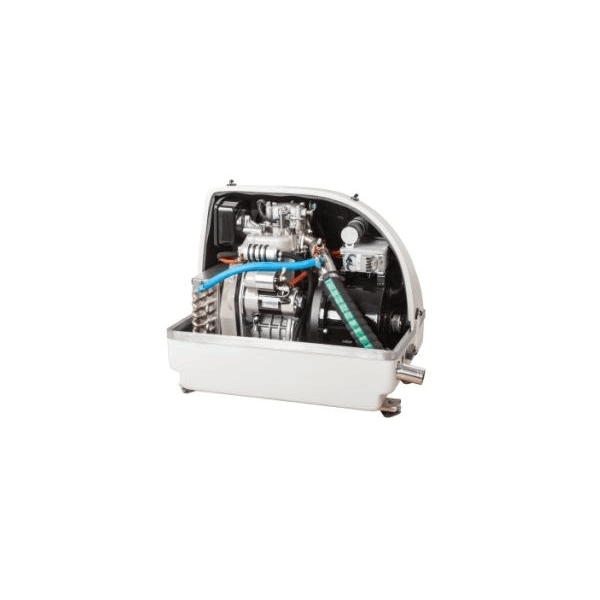

Thanks to its compact dimensions and simplified access to maintenance components (impeller, belt, filters), the Paguro 4 SY is easy to integrate on board. It is compatible with Paguro maintenance kits.

• 615 x 429 x 525 mm
• Easy access to maintenance areas
• Silentblock mounting included
• Quiet and ultra-compact-

A plug-and-play solution for demanding sailors.

INSTALLATION KITS AVAILABLE

Installation kits are not included and are available in three versions:

Water intake kit :

• Contents : hoses, pass-through-hull, valves, water filters, etc.
• Function : manages seawater supply for cooling.
• Use : essential for any installation without exhaust gas management.

Kit with silencer :

• Contents : final silencer, exhaust pipes, clamps, elbows, etc.
• Function : manages water supply and exhaust via muffler.
• Use : suitable for reducing noise levels.

Kit with seawater/exhaust separator :

• Contents : water/gas separator, muffler, pipes, elbows, etc.
• Function : isolates cooling water from exhaust gases.
• Use : for greater comfort (less odors, humidity, noise).

Installation kit available on request. On-line soon.

MAIN POINTS :

• Less than 54 dB
• Easy to maintain
• Compact and easy to install
• Power 4 kVA - 115V-60 Hz
• Full liquid cooling
• Stable, clean sine wave
• Waterproof case with remote control

BOX CONTENTS :

• 1 - Paguro 4 SY 115V generator set
• 1 - Digital remote control
• 1 - 15-meter cable
• 1 - Stainless steel muffler and exhaust
• 1 - PDF documentation
