Deck unit for V6 windlass

Name: Deck unit for V6 windlass
Brand: Lewmar

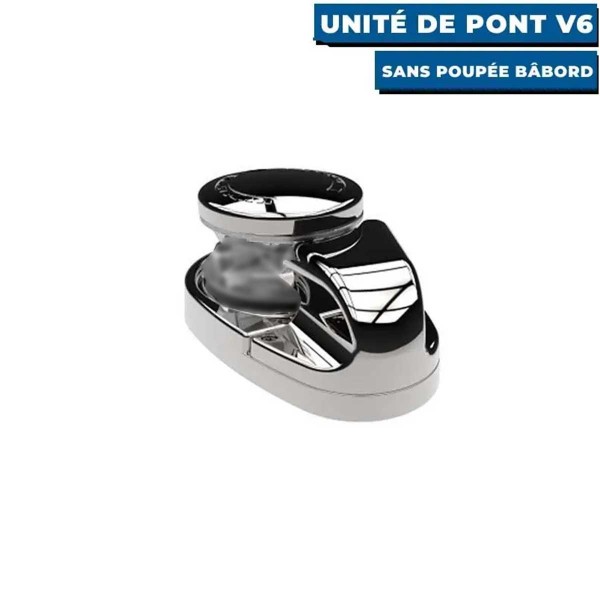

The deck unit for the V6 vertical windlass Lewmar corresponds to the visible part of your windlass , the part on the deck of your boat .

⚠️ The deck unit is delivered without the headstock on the port side , and does not contain the other components needed to operate a windlass, i.e. the geared motor and sprocket .

LEWMAR - DECK UNIT FOR V6 WINDLASS WITHOUT PORT HEADSTOCK

The V6 windlass deck unit without port headstock has the same features as the other windlasses in the V range , but is specifically designed for larger boats over 24m .

On this model, the chain outlet on the deck unit is oriented so that the chain exits from the left side of the boat and enters the chain well on the left .

What's more, it's made entirely of stainless steel, making it particularly durable and rustproof .

The V6 windlass deck unit without port headstock does not include a geared motor, relay, switch or circuit breaker.

You can also add all these accessories separately to your deck unit to obtain a complete windlass(see accessories)

plan d'encombrement unité de pont v6 lewmar

V6 DECK UNIT: IDEAL FOR LARGER VESSELS

The V6 deck unit features a choice of manual or motorized chain release.

It also features a friction cone brake to control the descent of the chain or rope when the anchor is lowered.

You'll also find an offset hawshackle that allows you to use any chain diameter . However, we recommend using 14mm chain for the deck unit.

You'll find all assembly instructions in the attached PDF documentation.

TECHNICAL SPECIFICATIONS OF THE V6 DECK UNIT WITHOUT PORT HEADSTOCK

+ ELECTRIC OR HYDRAULIC MOTOR DRIVE (sold separately)

	Electrical specifications	Hydraulic specifications
Headstock	❌	❌
Motor power	2000 W	❌
Sprocket: chain (mm) (not supplied)	10, 12 or 14 mm	10, 12 or 14 mm
Voltage	24 V	❌
For boats up to	up to 24 m	up to 24 m
Maximum pull	1818 kg	1450 kg
Working load limit	606 kg	20-60 l/min	Flow
Normal current draw	90A	60 bar	Normal pressure
Maximum lifting speed	18m/min	34m/min
Circuit breaker	150A	❌
Weight	63 kg	52 kg
