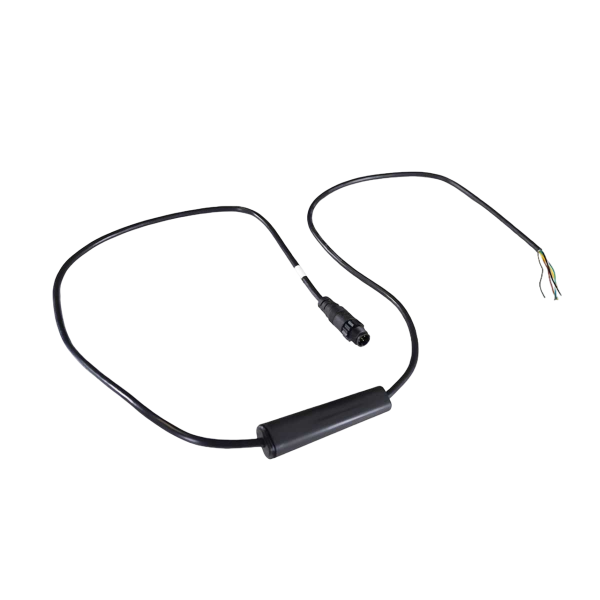

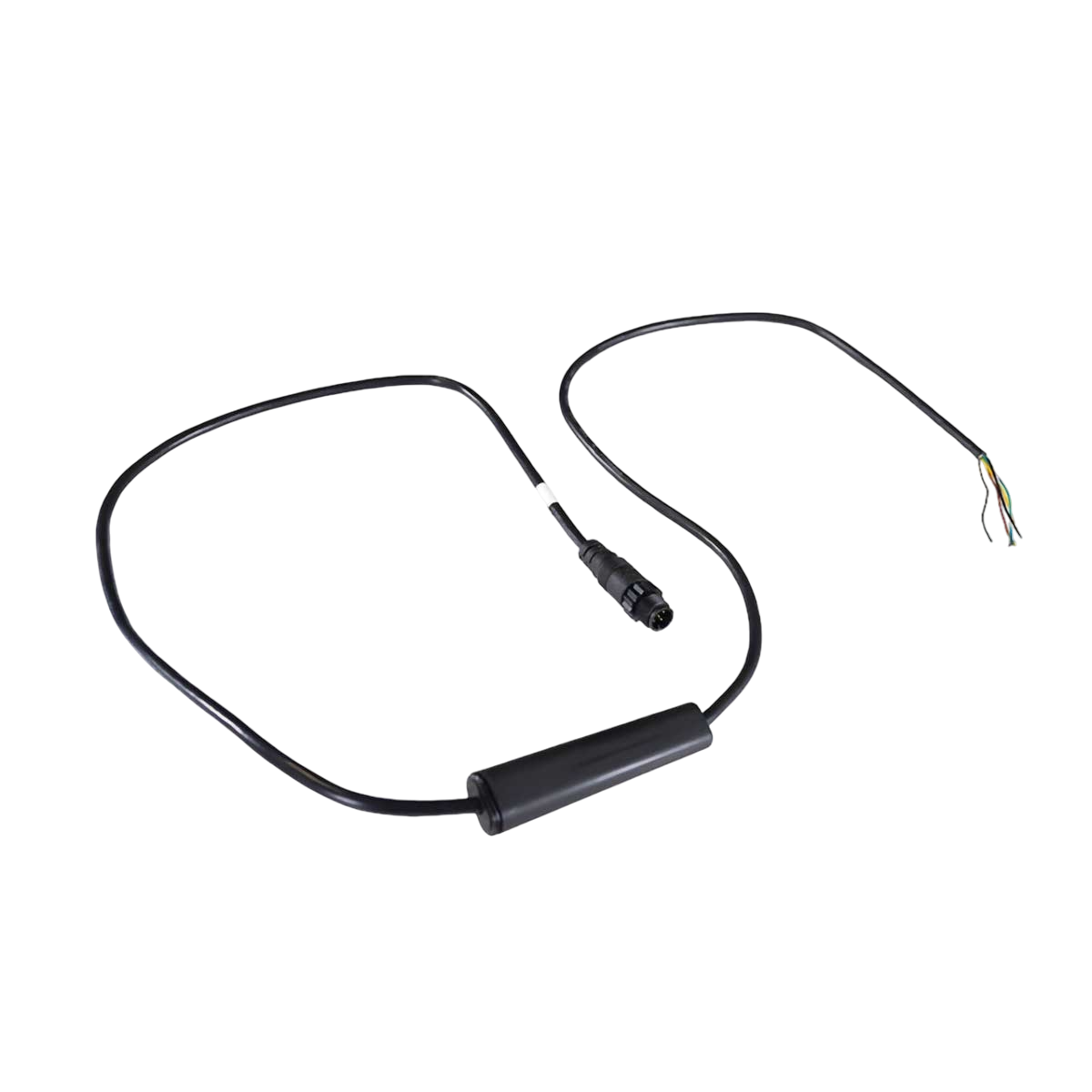

This cable is an NMEA0183 interface for establishing a bidirectional gateway between a network or NMEA2000 and NMEA0183 devices.

It is designed for installation of NMEA2000 devices on existing NMEA0183 networks. It allows mariners to easily upgrade to newer technology, sensors and devices without replacing an entire system . For existing NMEA networks and systems, this interface also lets you add NMEA0183 devices to your network and instrument system, so you can select products better suited to your boat and navigation.

With its small footprint, this NMEA0183 interface is easy to install and connect to any boat.

Technical features :

Easy to install with plug 'n play setup
Supports NMEA0183 Version 4.1
NMEA0183 rx/tx phrase filtering and configurable transmission frequency
Compatible with MFDs and instrument displays Lowrance, Simrad and B&G.
Compatible with NMEA2000
Micro-C connectivity

€195.90 Tax included

Public price

€219.60

-10%

Price tax excl. / DOM TOM €163.25

Reference 000-15939-001

Description
Customer Reviews
Products also ordered

Description

NMEA0183 interface features

CONNECTIVITY
NMEA 2000 connectivity	1x NMEA 20000 Micro-C port, 2 LEN
PGN N2K	127237, 127245, 127250, 127251, 127257, 127258, 128259, 128267, 128275, 129025, 129026, 129033, 129283, 129284, 129539, 129540, 130306, 130310, 130312, 130314, 130577
Supported NMEA 0183 sentences	AAM, APB, BOD, BWC, DBT, DPT, GGA, GLL, GSA, GSV, HDG, HDT, MTW, MWD, MWV, RMA, RMB, RMC, ROT, THS, VBW, VDR, VHW, VLW, VTG, XDR, XTE, ZDA
ELECTRICAL
Power consumption, max.	0.66W
Supply voltage	12V DC (9-18V DC)
ENVIRONMENT
Operating temperature range	-15°C to +55°C (5°F to 131°F)
Water resistance	IP67
PHYSICAL
Dimensions (W x H x D)	87 x 20 x 12 mm (3.4 x 0.8 x 0.5")
Weight	0.1 kg (0.2 lbs)
