Italwinch

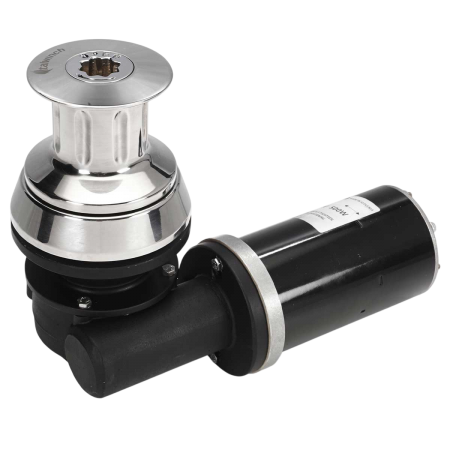

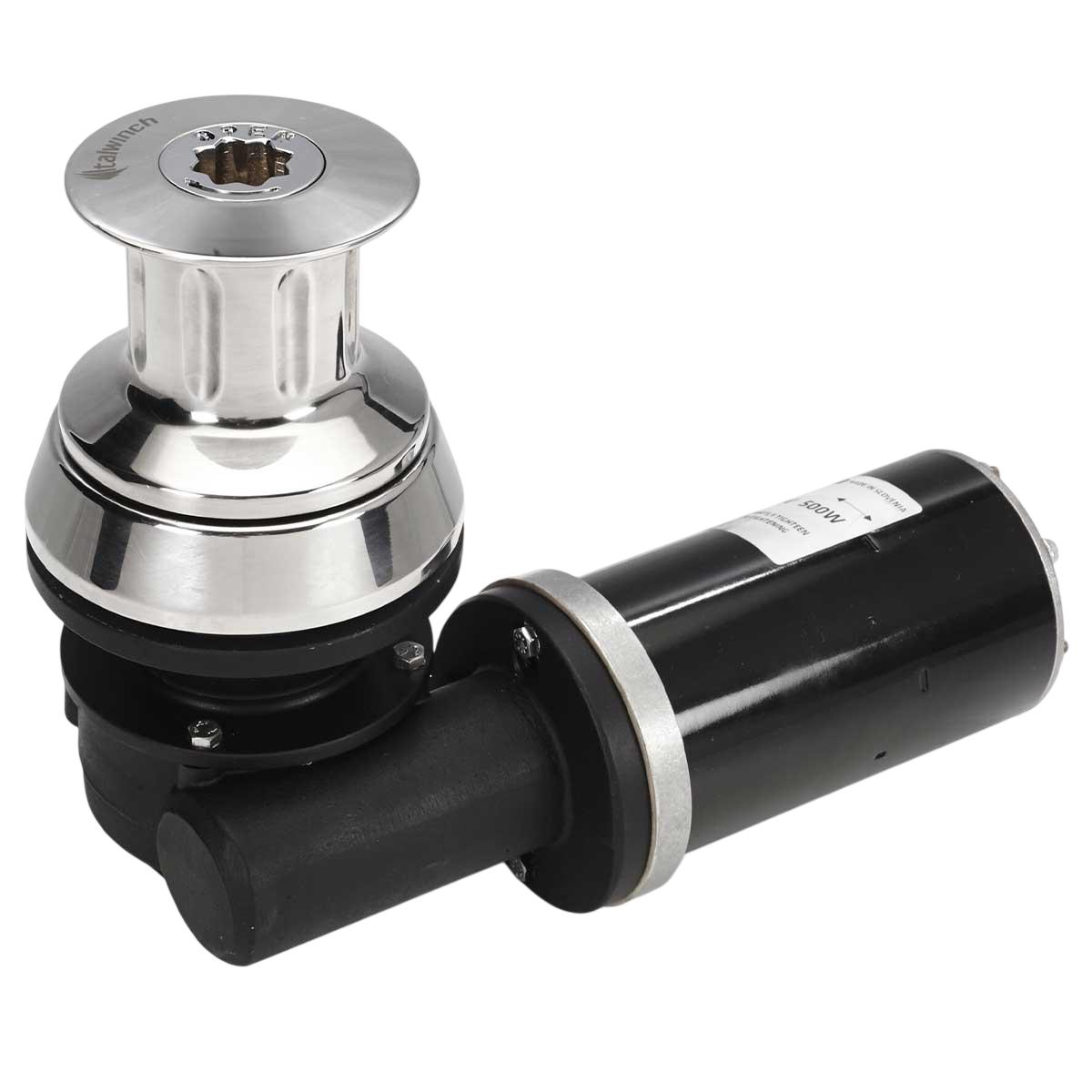

Paros Lux 12 V capstan

Ref. OSC-02.411.11

The Italwinch Paros Lux 12 V 500 W capstan is designed to simplify mooring and towing operations. Its stainless steel construction and spray-protected motor make it a reliable piece of equipment on deck, ideal for keeping control of line tension.
A real gain in comfort and safety for more serene docking, even with a reduced crew.

from
€556.31 Tax included
-12%
€637.96
Pay in installments
3x 4x 10x 12x 24x 60x
or pay in
24x 60x
Quantity
Choose a version
In stock in 8 to 10 days
Fast delivery learn more
556 loyalty points Earn €5.56 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
  • In the same family
    • Article
    Motor - V Motor - W Average consumption A Max. towing capacity kg Working load kg Recovery speed m / min peso
    In stock in 8 to 10 days
    12 500 60 270 90 23 8
    €556.31
    In stock in 8 to 10 days
    12 700 90 300 100 25 8
    €580.75
    OSC-02.411.11

    Data sheet

    Voltage
    12V
    Power
    500 W
    Description

    Italwinch - Paros Lux 12 V capstan

    The Italwinch Paros Lux capstan winch is designed to simplify your mooring and towing maneuvers. Equipped with an AISI 316 stainless steel headstock and a 12 V 500 W motor, it is suitable for boats up to 13 m long.

    It offers a retrieval speed of 23 m/min with an average consumption of 60 A. Its IP67 waterproof motor guarantees reliable operation, even in damp or sprayy conditions.

    On a narrow pontoon, in the presence of current or with a small crew, this capstan allows you to keep control of your rope with ease: you set, you furl, you control the tension. The result is clean, even and much more comfortable.
    Cabestan Italwinch Paros Lux 12 V 500 W

    Rugged design for marine use

    Built to last, the Paros Lux combines AISI 316 stainless steel construction with an IP67 waterproof motor. It effectively resists corrosion, water splashes and the demanding conditions of the marine environment.

    • Structure in polished AISI 316 stainless steel
    • IP67 waterproof motor
    • 12 V power supply - 500 W
    • Ideal for mooring and towing

    Reliable equipment for repeated operations, with simple maintenance: rinse with fresh water, check connections and light greasing.

    PAROS LUX CAPSTAN TECHNICAL SPECIFICATIONS

    Paros Lux 500 W

    Paros Lux 700 W
    Motor power 500 W 700 W
    Voltage 12 V / 60 A 12 V / 90 A
    Max. pulling capacity 650 kg 750 kg
    Working load 90 kg 100 kg
    Lifting speed 23 m/min 25 m/min

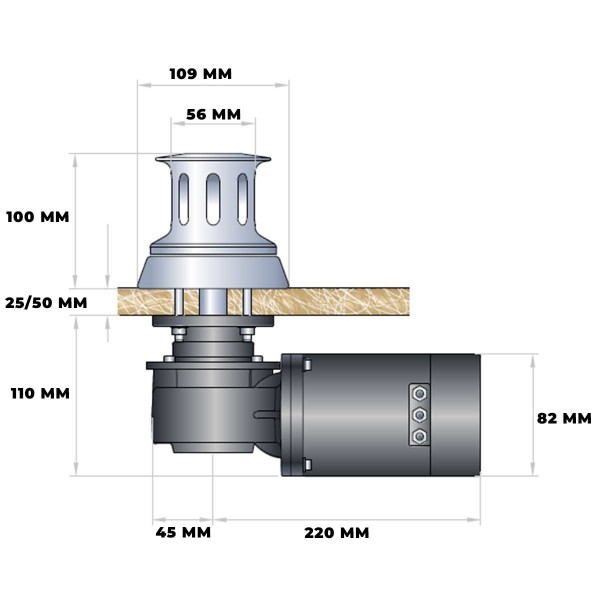

    Bridge thickness
    		25-50 mm
    Weight 8.6 kg 9.7 kg

    MAIN POINTS :

    • 12 V - 500 W
    • AISI 316 stainless steel
    • IP67 waterproof motor
    • For boats up to 13 m
    • Recommended circuit breaker 60 A

    BOX CONTENTS :

    • 1 - Cabestan with 12V 500W geared motor
    • 1 - Remote control switch and relay box
    • 1 - Drilling template
    • 1 - Screw kit
    • 1 - PDF documentation

    Download

    Manual capstans Italwinch

    Manual capstan Italwinch Paros-Lux-Nestor-Heron-Idhra-Aran-Samos (IT-EN-FR-DE-ES)

    Download (987.58k)
