Heron 24 V capstan
Ref.
OSC-02.412.04
The Italwinch Heron 1700 W 24 V capstan makes mooring and hauling easy, even when the going gets tough. Designed in AISI 316 stainless steel, it combines power and consistency, with 1700 kg max pull and 26 m/min.
Recommended for boats up to 23 m in length, it is simply controlled by UP-DOWN from the control station.
| Article |
|
|
|||||||
|---|---|---|---|---|---|---|---|---|---|
OSC-02.412.04
In stock in 8 to 10 days
|
|
€1,525.09
|
|||||||
OSC-02.412.06
OUT OF STOCK
|
|
€1,589.27
|
OSC-02.412.04
Data sheet
- Voltage
- 24V
- Power
- 1700 W
Italwinch - Heron 24 V capstan
The Italwinch Heron 1700 W 24 V capstan winch is designed to facilitate your mooring and towing operations. Robust and reliable, it brings you greater comfort and precision on a daily basis. Its AISI 316 stainless steel construction guarantees excellent resistance to sea air, salt and spray.
With a maximum traction of 1700 kg and a lifting speed of 26 m/min, it makes it easy to take up a hawser, assist docking or manage a maneuver at the quay in complete control. Recommended for boats up to 23 m.
 |
Reliable capstan for your maneuversThe 1700 W 24 V version of the Heron capstan is designed for demanding maneuvers. It delivers a maximum pull of 1700 kg at a fast, steady speed, for optimum control in all situations.
Maintenance is simple: just rinse with fresh water after use, check connections and lightly lubricate to ensure long life. |

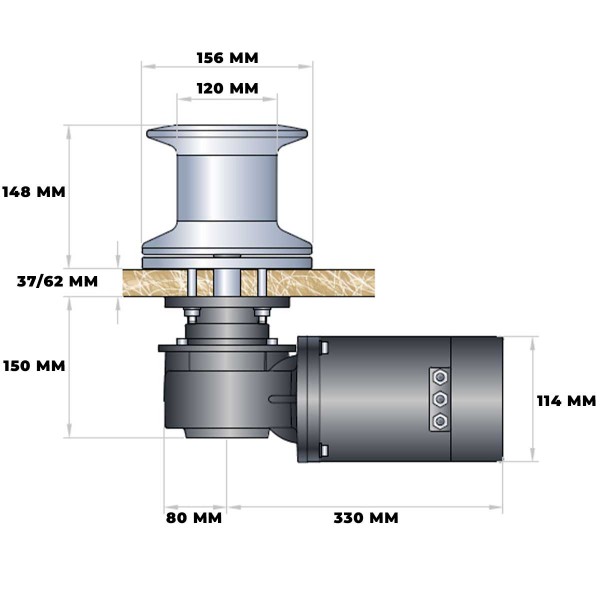

HERON CAPSTAN TECHNICAL SPECIFICATIONS
|
Heron 1700 W |
Heron 2000 W | |
|---|---|---|
| Motor power | 1700 W | 2000 W |
| Voltage |
24 V / 90 A |
12 V / 100 A |
| Max. pulling capacity | 1700 kg | 1750 kg |
| Working load | 240 kg | 270 kg |
| Lifting speed | 26 m/min | 12 m/min |
| Bridge thickness |
37-62 mm | |
| Weight | 23.1 kg | 24 kg |
MAIN FEATURES :
|
BOX CONTENTS :
|
