Italwinch

Nestor VX capstan

Ref. OSC-02.412.22

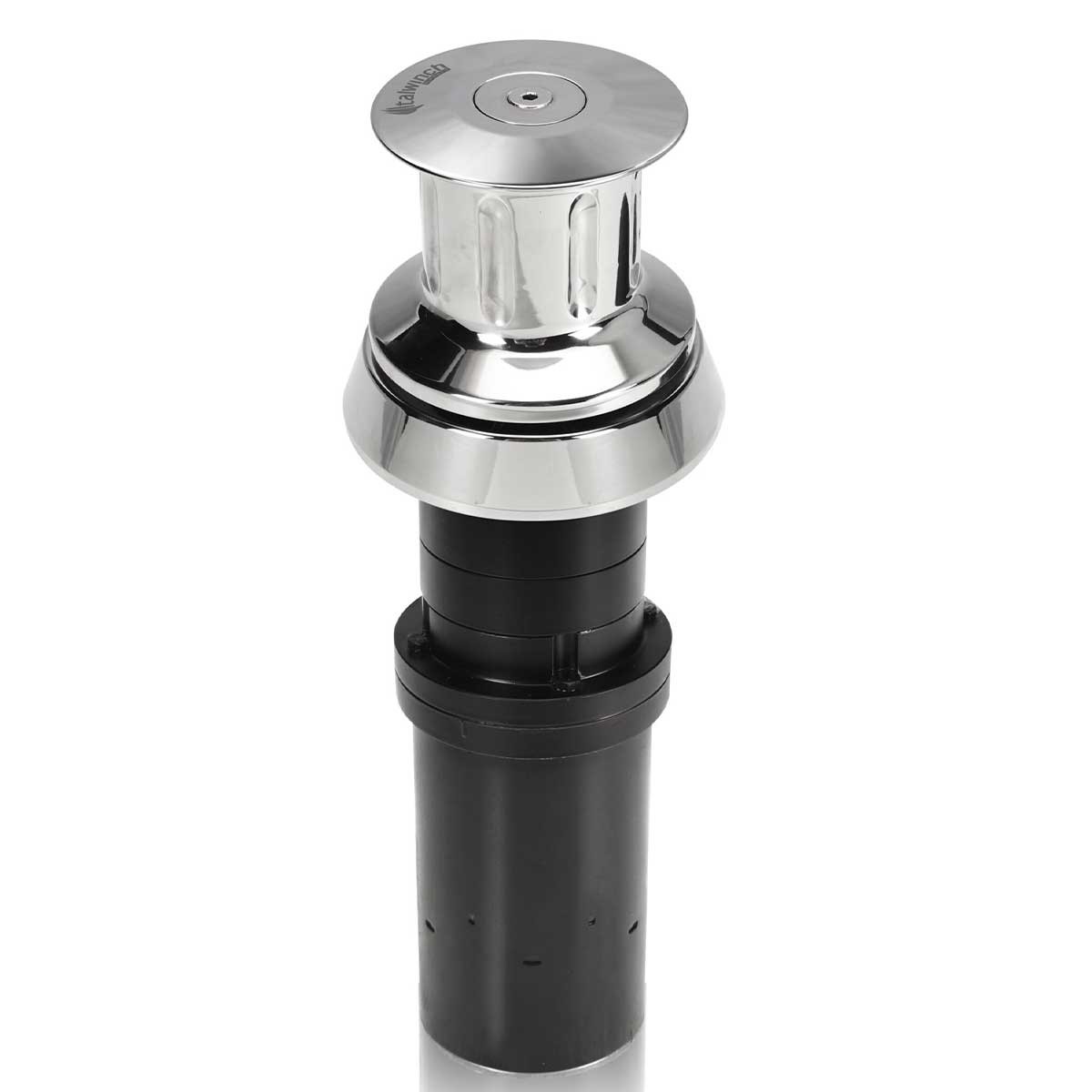

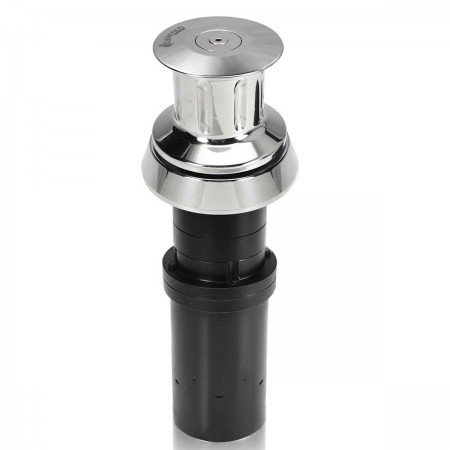

The Italwinch Nestor VX 800 W 12 V capstan winch, made from AISI 316 stainless steel, facilitates mooring and hauling operations on board. Designed to provide fast, reliable assistance, it delivers a pulling force of up to 800 kg, with a retrieval speed of 25 m/min, for simpler maneuversing on arrival in port.

Deck-mounted, it is suitable for boats up to 13 meters.

from
€915.90 Tax included
-12%
€1,050.00
Pay in installments
3x 4x 10x 12x 24x 60x
or pay in
24x 60x
Quantity
Choose a version
In stock in 8 to 10 days
Fast delivery learn more
915 loyalty points Earn €9.15 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
  • In the same family
    • Article
    Motor - V Motor - W Average consumption A Max. towing capacity kg Working load kg Maximum recovery speed m / min peso
    In stock in 8 to 10 days
    12 800 90 300 100 25 10,5
    €915.90
    In stock in 8 to 10 days
    24 800 50 300 100 25 10,5
    €932.20
    OSC-02.412.22

    Data sheet

    Voltage
    12V
    Power
    800 W
    Description

    Italwinch - Nestor VX capstan

    Designed for pleasure boating, the Nestor VX is an electric capstan winch with headstock designed to simplify mooring maneuvers and rope tensioning. Compact, powerful and easy to install, it offers invaluable assistance on board, while requiring little maintenance.

    Equipped with an 800 W motor, the Nestor VX delivers maximum traction of up to 800 kg, with a working load of 100 kg. Its lifting speed can reach 25 m/min for fast, efficient maneuvering. For safe operation, we recommend the use of a 70 A circuit breaker and wiring adapted to the distance between the battery and the motor.
    Cabestan Italwinch Nestor VX 12V 800W

    Easier mooring maneuvers

    The Nestor VX capstan operates with a rope wrapped around the headstock. It allows you to tack, take up slack and maintain control during mooring maneuvers. It's easy to use: wind at least three turns of rope clockwise, maintain tension, then operate the UP control.

    • Motor: 800 W
    • 12 V power supply
    • Maximum pull up to 800 kg
    • Lifting speed up to 25 m/min
    • Average power consumption: 90 A at 12 V

    Once the maneuver is complete, remove the rope from the headstock and secure-on a bitt. The capstan must not be used as a permanent mooring point.

    NESTOR VX CAPSTAN TECHNICAL SPECIFICATIONS

    Nestor VX 12V / 800 W

    Nestor VX 24V / 800 W
    Motor power 800 W 800 W
    Voltage 12 V / 90 A 24 V / 45 A
    Max. pulling capacity 800 kg 810 kg
    Working load 100 kg
    Lifting speed 25 m/min

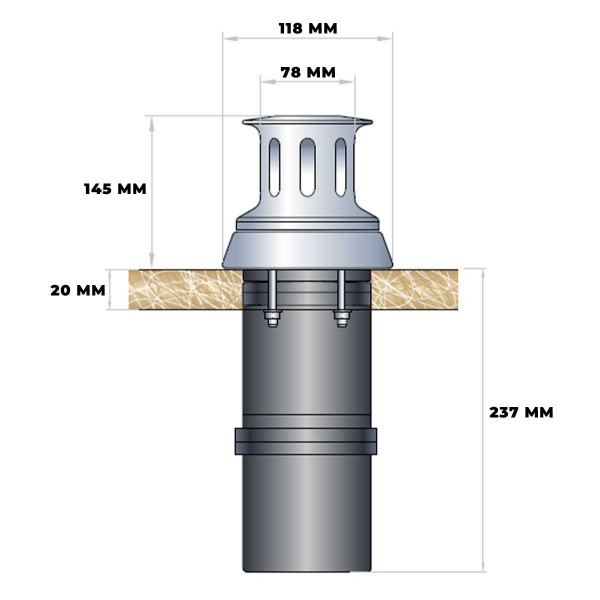

    Bridge thickness
    		20 mm
    Weight 10.5 kg

    MAIN FEATURES :

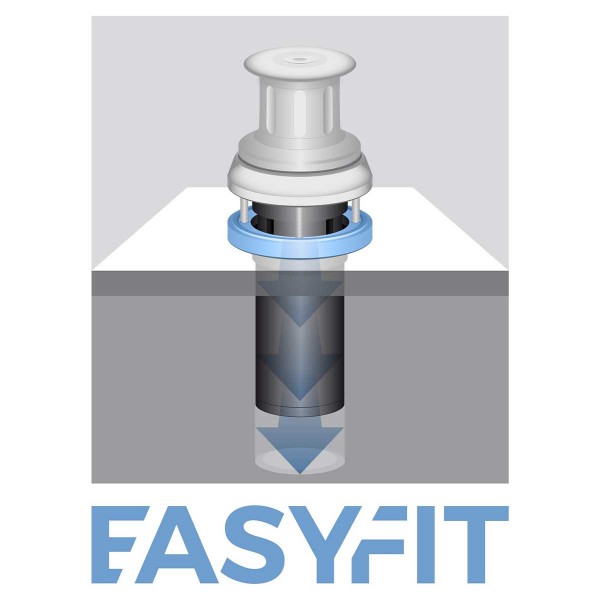

    • EasyFit system
    • Max. pull 800 kg
    • Quick and easy to install
    • Turning speed up to 25 m/min
    • Recommended protection by 70 A circuit breaker

    BOX CONTENTS :

    • 1 - Cabestan Nestor VX 12V 800W with geared motor
    • 1 - Remote control switch with relay box
    • 1 - Drilling template
    • 1 - Screw kit
    • 1 - PDF documentation

    Download

    Manual capstan Nestor VX

    Nestor VX capstan manual Italwinch (IT-EN-FR-DE-ES)

    Download (489.06k)
