Master single-lever box for multi-station cable controls

Name: Master single-lever box for multi-station cable controls
Brand: Kobelt

With the Kobelt mechanical system, you benefit from a unique solution for multi-station control : it guarantees incomparable flexibility and precision , as well as perfect synchronization of the stations without the need for a differential .

You can switch from a master to an auxiliary station without having to put a lever in neutral mode. The Kobelt housings are both reliable and robust .

It is made of chrome-plated bronze , with stainless steel screws. The Kobelt single-lever box is bi-functional , controlling both clutch and acceleration (throttle) on one engine .

You can access the preheat position by unlocking the lever.

Kobelt control units are compatible with 33C (AK033) or 43C (AK043) cables , depending on the connection kit chosen.

Read more Features

€1,798.90 Tax included

Public price

€2,009.20

-10%

🔥 Black Friday

Public price

€2,009.20

€1,619.10

with the code BLACK24

-19%

Offre valable encore

or pay in

Price tax excl. / DOM TOM €1,499.08

Quantity

IN SUPPLIER STOCK

Delivery times and costs

By buying this product you can collect up to 1798 loyalty points. Your cart will total 1798 points that can be converted into a voucher of €17.98.

Reference KB291

Data sheet

Length: 501 mm
Range / Model: 2091-KYZ
Motor control cable type: 33C, 43C
Number of levers: 1
Motor control box type: Multi-station controls
Width: 108 mm
Number of motor control cables: 4
Number of motors: 1
Enclosure type: Control

Description
Attachments
Accessories
Customer Reviews
Questions / Answers
Products also ordered

Description

KOBELT - Single-lever master box for multi-station cable controls

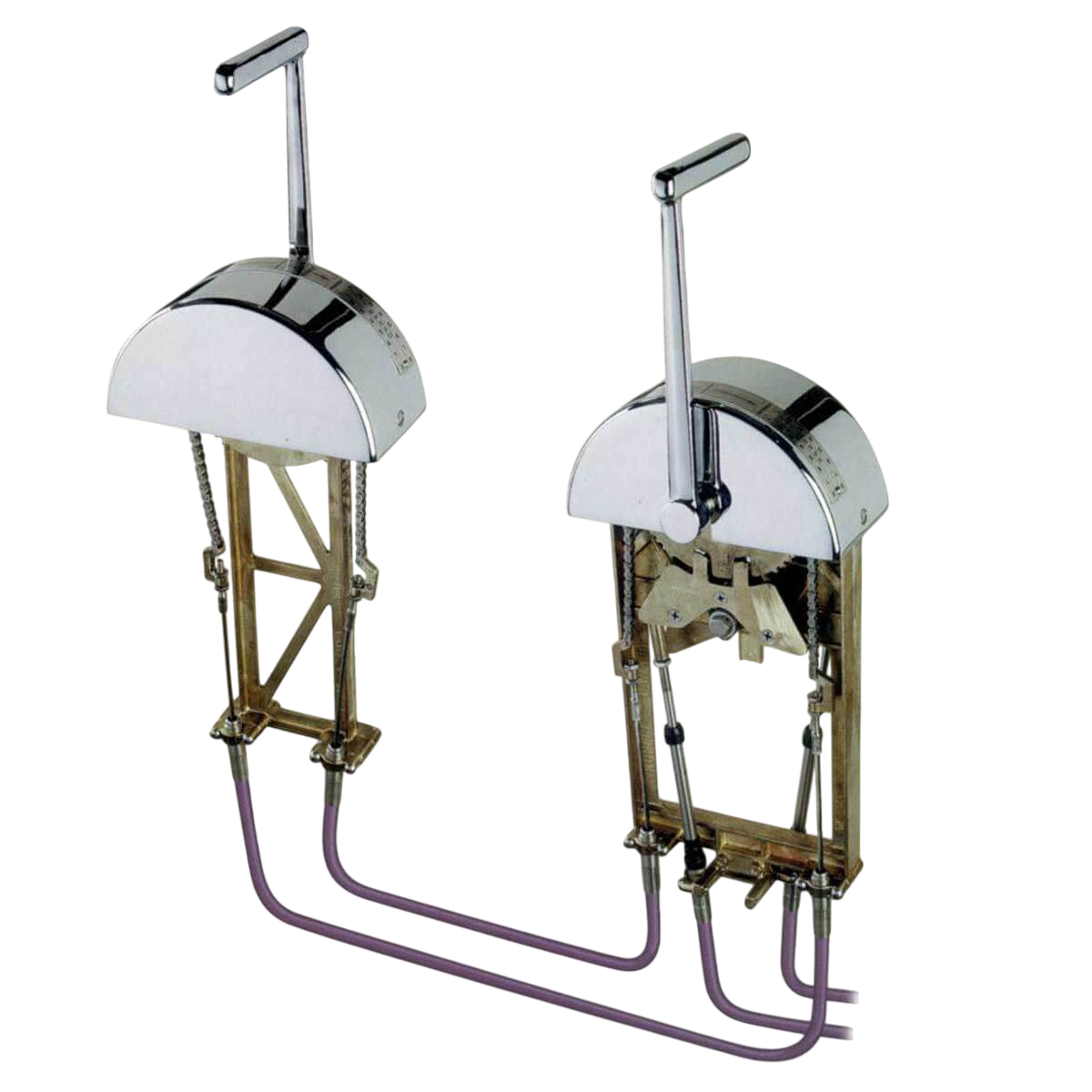

The master unit acts as a main control and the auxiliary unit as a remote control . The two boxes operate simultaneously to synchronize commands on several stations.

For the system to work, it must consist of a single-lever box (KB291) and a single-lever auxiliary box (KB293). Two "47" cables are also required to interconnect the boxes. Different cable lengths are available, from 3 m to 15 m.

Please consult us for installations involving more than two control stations, as these depend on various criteria, including cable length and routing.
