Single lever control-Dual lever-function B301
Ref.
OSC-45.100.01

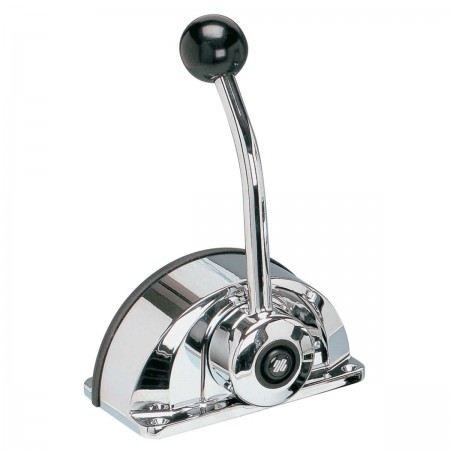

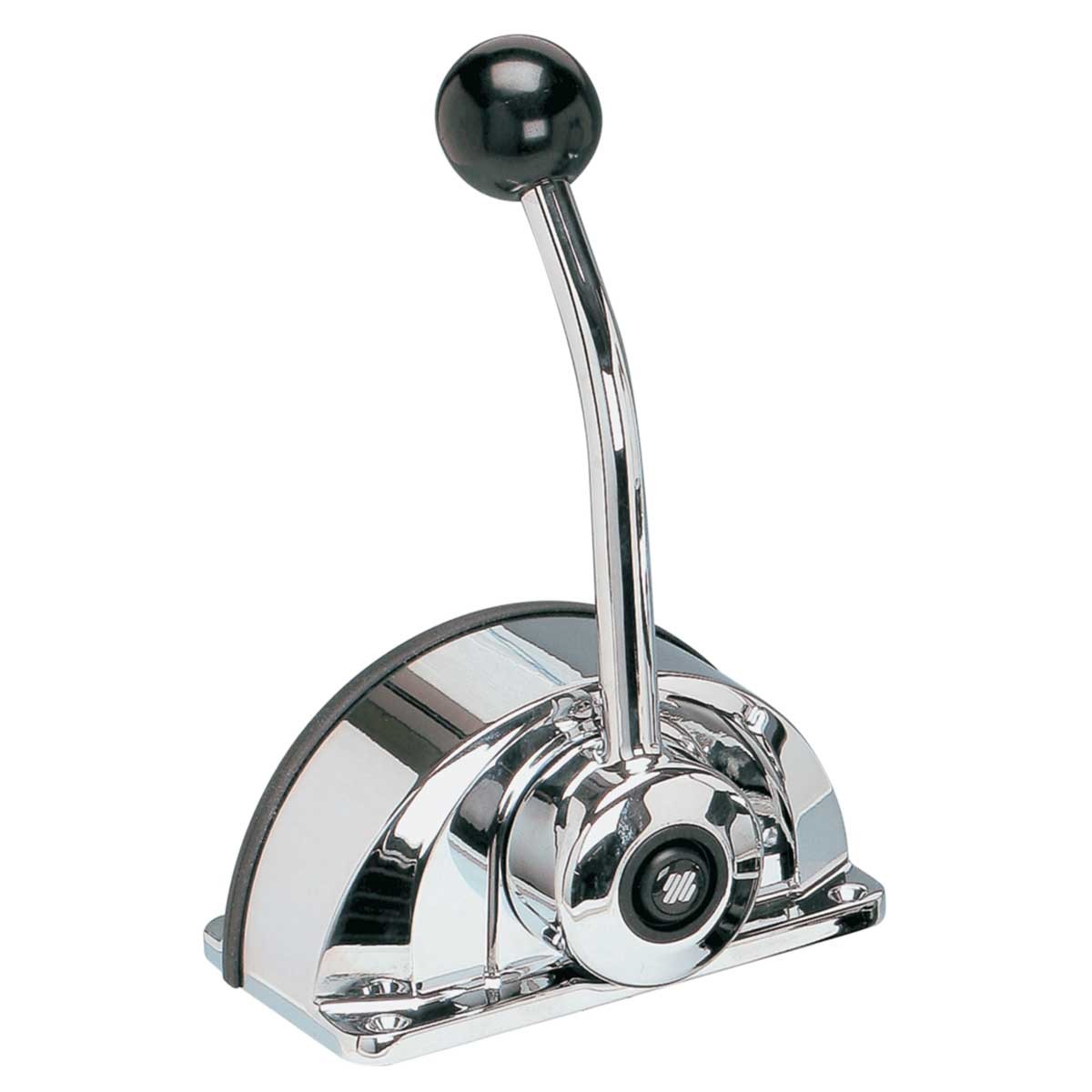

The B301 dual-function-control box is suitable for all boats with inboard engines-. The lever is bi-function, made of marine aluminum, and controls the shuttle and throttle.
You can change engine direction only when the throttle lever is at minimum, thanks to a safety device to prevent accidental engagement of the shuttle.
| Article |
|
|
|||
|---|---|---|---|---|---|
OSC-45.100.01
In stock in 8 to 10 days
|
|
€364.92
|
|||
OSC-45.100.02
In stock in 8 to 10 days
|
|
€610.75
|
|||
OSC-45.100.04
In stock in 8 to 10 days
|
|
€589.92
|
OSC-45.100.01

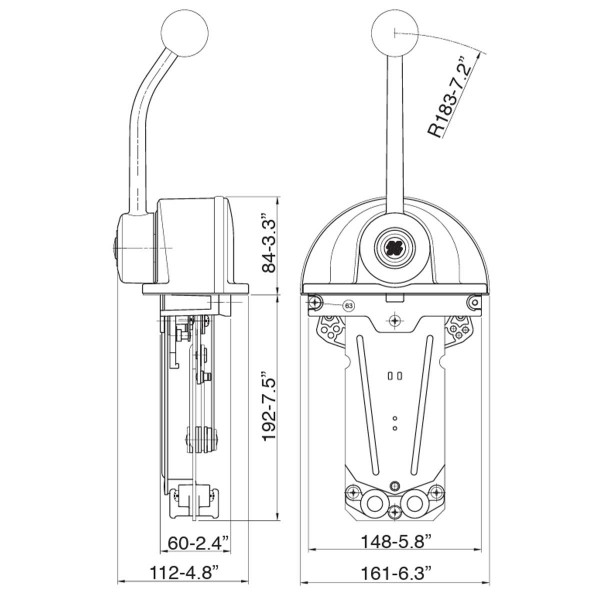

Data sheet
- Motor control cable type
- 40C
- Height
- 161 mm
- Number of levers
- 1
- Width
- 112 mm
- Number of motors
- 1
- Enclosure type
- Control
Ultraflex - Single lever control-Dual lever-function B301
You can adjust the throttle without engaging the clutch by pulling the hub in neutral. To preheat the engine, you can pull the handle to deactivate the shuttle.
A neutral safety switch x12 is available as an option.
The control box works with Ultraflex C14 and MACH14 cables and does not require a kit to operate.
MAIN POINTS :
|
BOX CONTENTS :
|
