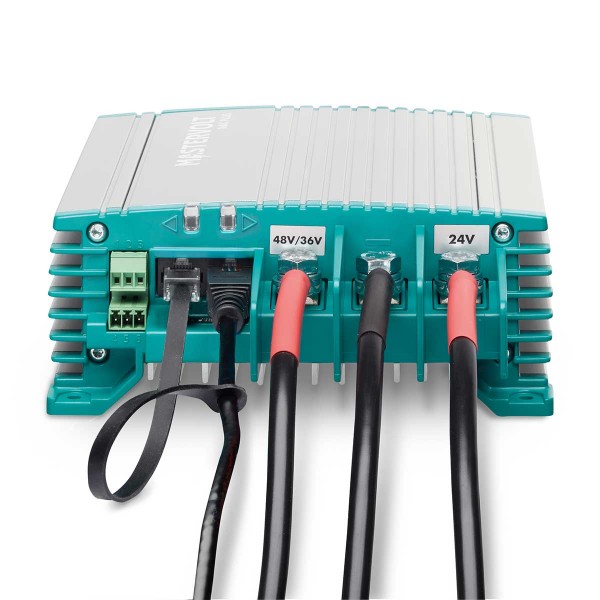

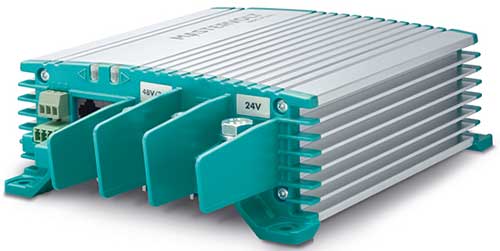

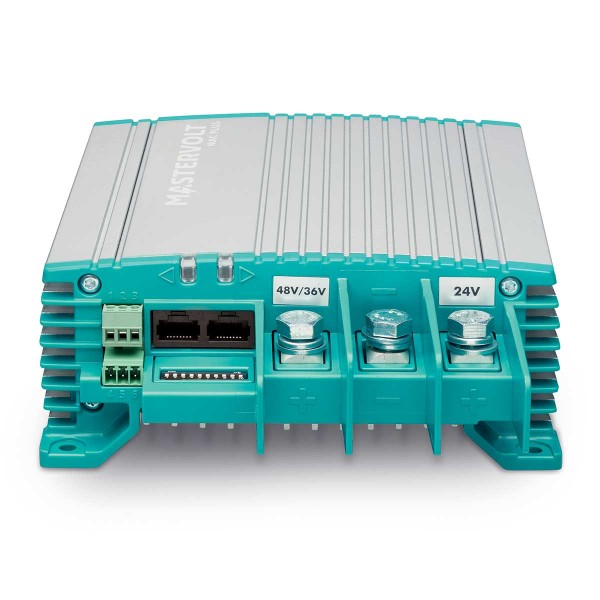

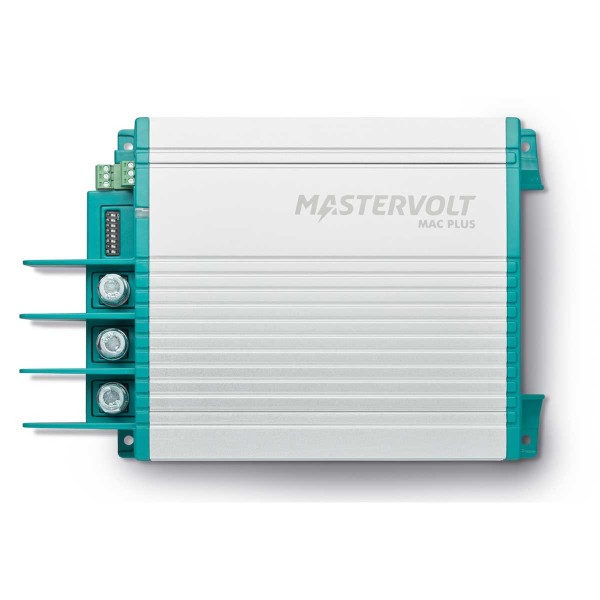

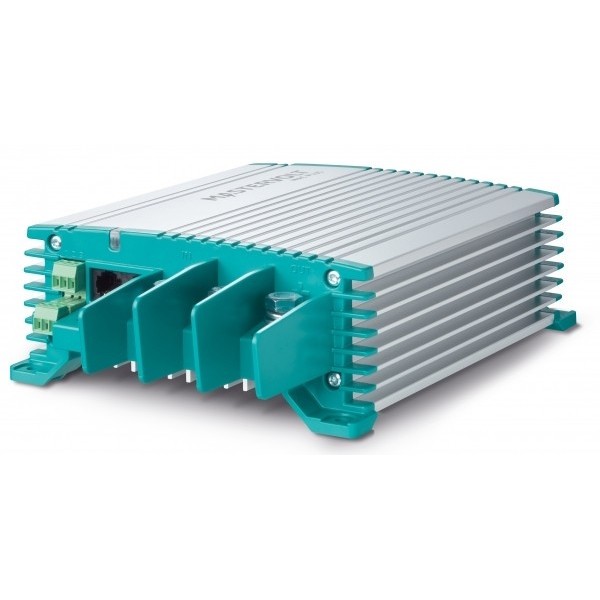

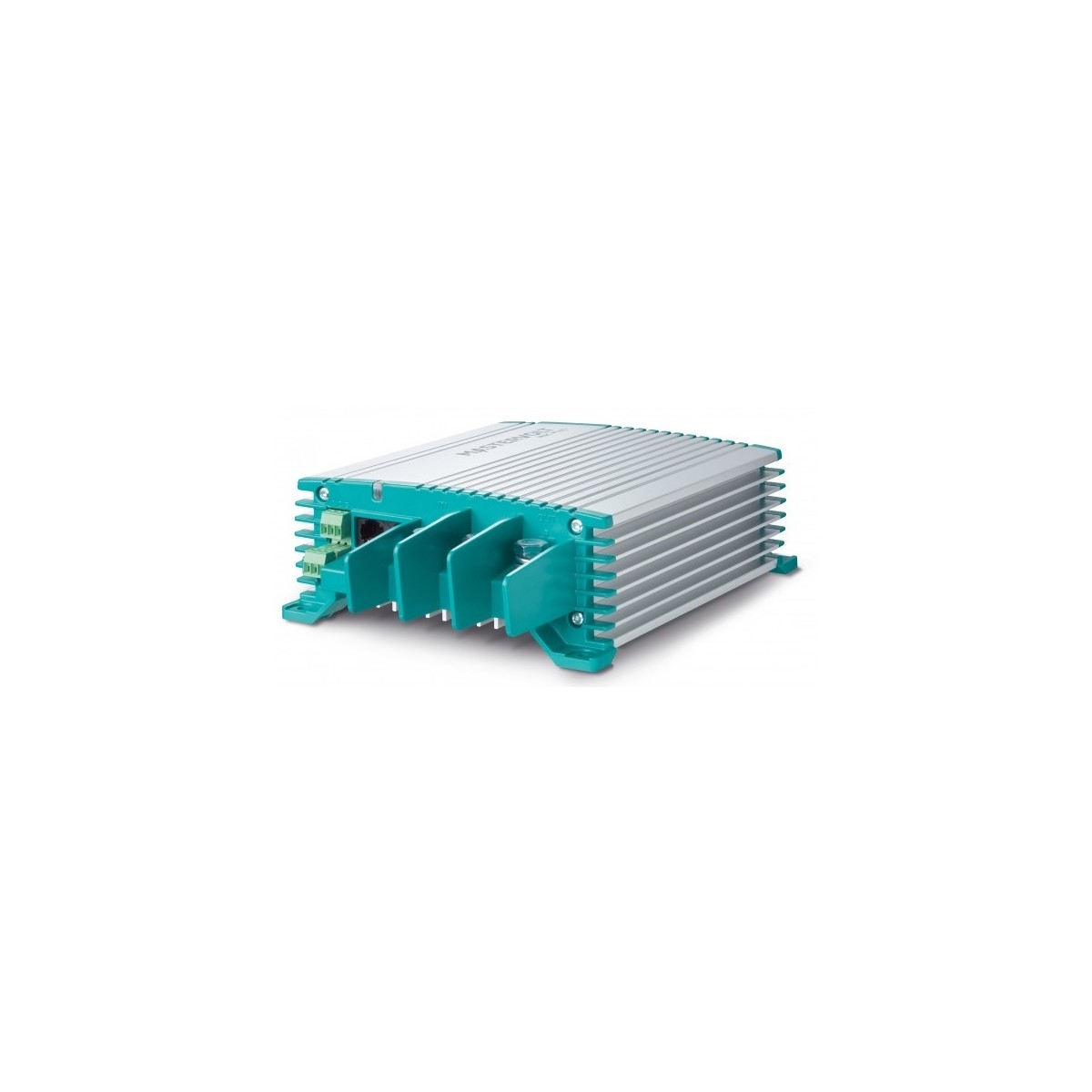

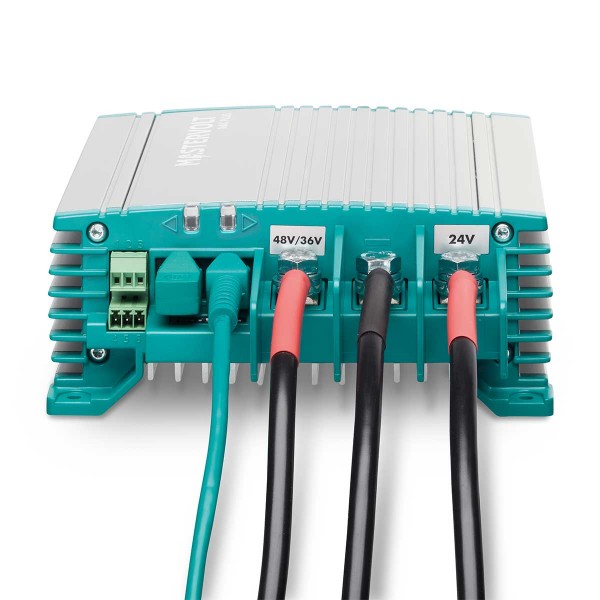

Mac Plus 24V/48-15A converter

True service battery charging

The Mac Plus converts a variable DC voltage into a stabilized DC voltage. In practical terms, this means it can correctly recharge the service battery when the alternator is "smart", or when the voltage varies with on-board consumers. Its Mastervolt 3-step algorithm ensures efficient charging, even on very discharged batteries.

• DC charger-DC and stabilized DC power supply
• 3-step charging algorithm Mastervolt
• Output current up to 15 A at 48 V
• Compatible with wet, gel, AGM and lithium batteries-ion

Temperature compensation and battery voltage measurement refine charging. Avoid repeated under-charging, and extend the life of your service equipment.

CZonenMEA 2000 and MasterBus

The version with CZone can be easily integrated into a modern installation. You can monitor status, receive alerts, and control the converter from a compatible display or configuration tool CZone. You can also configure the inverter via DIP switches, which is practical on a construction site or during a refit.

• MasterBus, CZone and NMEA 2000 communication
• Remote input to activate or deactivate the charger
• Detection of motor operation to conserve battery power
• Parallel connection of up to 10 units possible

For a clean installation, the Mac Plus features robust connectors and included sensors for a charge setting consistent with your battery.

MAIN POINTS :

• 15 A for servitude
• 48 V stable load
• Fanless silent operation
• Battery sensors included for accurate charging
• On-board control CZone, NMEA 2000 and MasterBus

BOX CONTENTS :

• 1 - Mac Plus 24V/48-15A + CZone

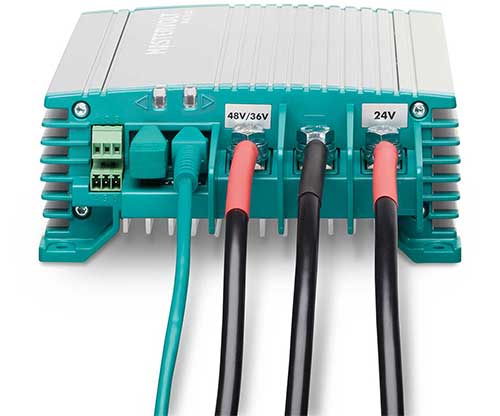

• 1 - Battery temperature sensor
• 1 - Connection cable Mastervolt- CZone 1 m
• 1 - MasterBus terminator
• 1 - PDF documentation
