- -€51.75

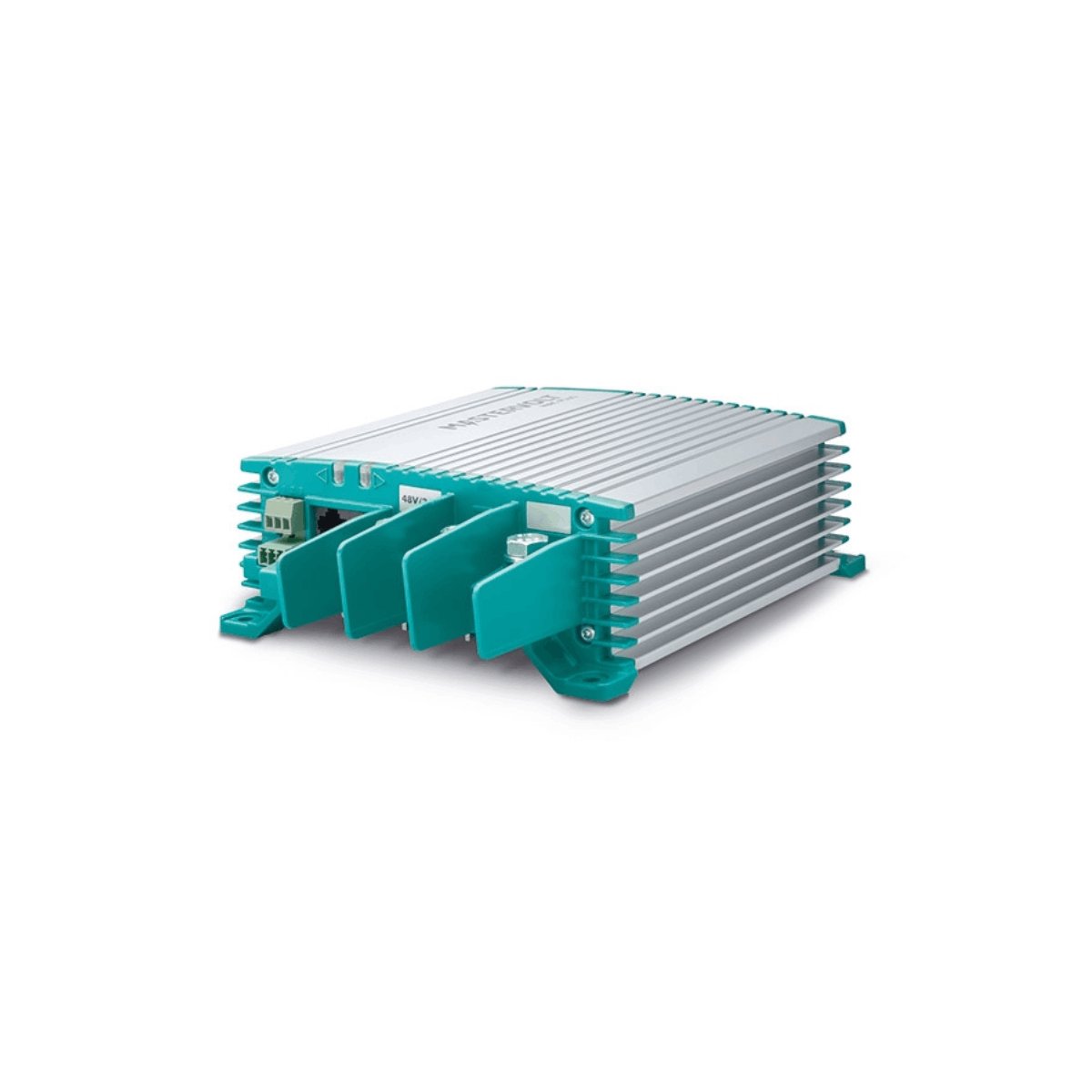

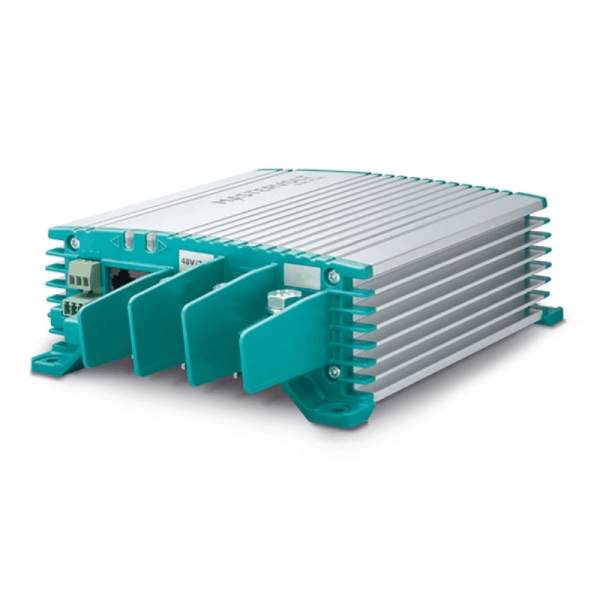

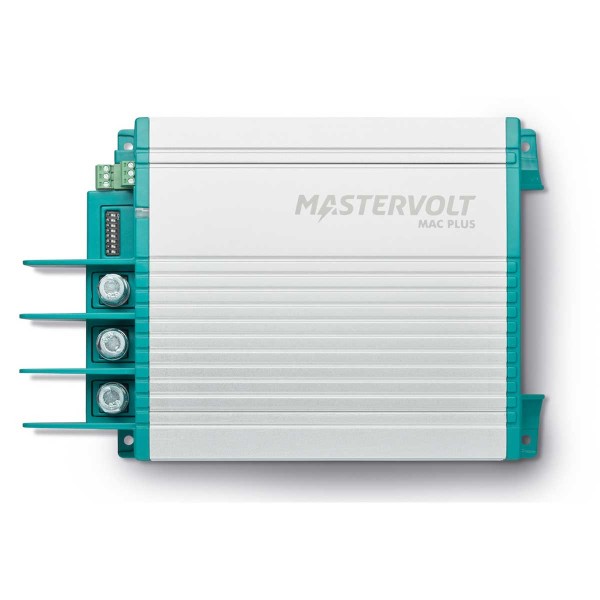

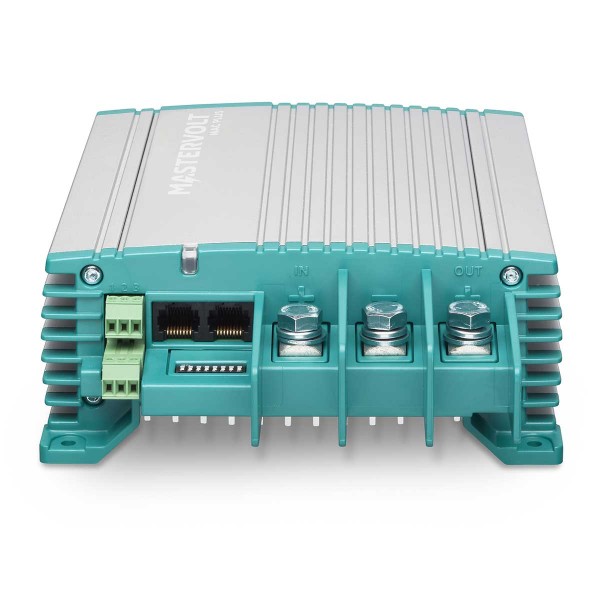

Mac Plus 24V/12-50A converter
Ref.
81205205
The Mastervolt Mac Plus 24V/12-50A converter with CZone ensures stable charging of your service battery, even with a smart alternator.
It transforms variable 24V voltage into regulated 12V and recharges in 3 stages, with temperature compensation. Controllable via CZone, NMEA 2000 and MasterBus, it remains discreet at anchor.
Read more Features
€443.25
Public price
€495.00
Price tax excl. / DOM TOM
€443.25
81205205
Data sheet
- Amperage
- 50A
- Input voltage
- 24V
- Rated power
- 710W
- Output voltage
- 12V
MASTERVOLT - Converter Mac Plus 24V/12-50A + CZone
On many boats, the service battery charges poorly as soon as the alternator reduces its voltage. The Mac Plus converter corrects this problem by providing fast, safe and constant charging.
Designed for on-board power, it protects the starter battery, adapts to modern batteries including lithium, and is easily controlled via CZone, NMEA 2000 or MasterBus.
 |
True service battery chargingThe Mac Plus converts a variable DC voltage into a stabilized DC voltage. In practical terms, this means it can correctly recharge the service battery when the alternator is "smart", or when the voltage varies with on-board consumers. Its Mastervolt 3-step algorithm ensures efficient charging, even on very discharged batteries.
Temperature compensation and battery voltage measurement refine charging. Avoid repeated under-charging, and extend the life of your service equipment. |
CZonenMEA 2000 and MasterBusThe version with CZone can be easily integrated into a modern installation. You can monitor status, receive alerts, and control the converter from a compatible display or configuration tool CZone. Configuration is also possible via DIP switches, practical on a construction site or during a refit.

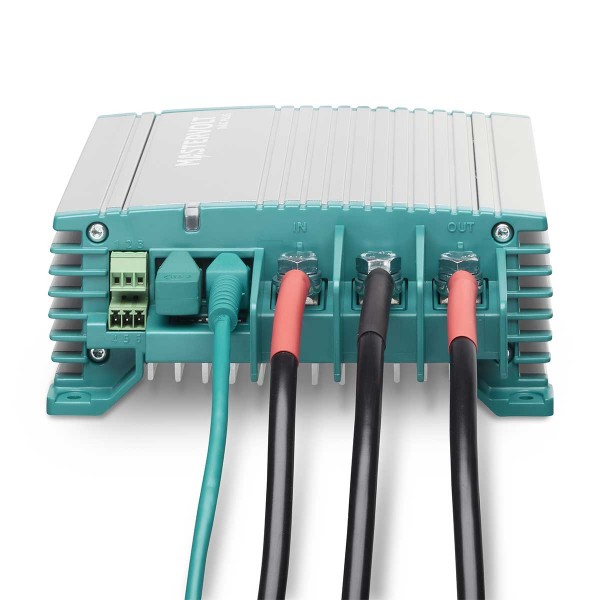

For a clean installation, the Mac Plus features robust connectors and sensors for battery-friendly charging. |
 |
FEATURES CONVERTER MAC PLUS 24/12-50
|
Mac Plus 24/12-50 | |
|---|---|
| Dimensions | 255 x 165 x 66 mm |
| Nominal output voltage | 12 V |
| Output voltage | 10-15 V |
| Nominal input voltage | 24 V |
| Input voltage range | 19-30 V |
| Maximum input current | 50 A |
| Maximum output current | 50 A |
| Protection class | IP23 |
| Weight | 2 kg |
| Battery types | Wet, Gel, AGM, Lithium-ion |
| Communication protocol | MasterBus, CZone, NMEA 2000 |
MAIN POINTS :
|
BOX CONTENTS :
|
