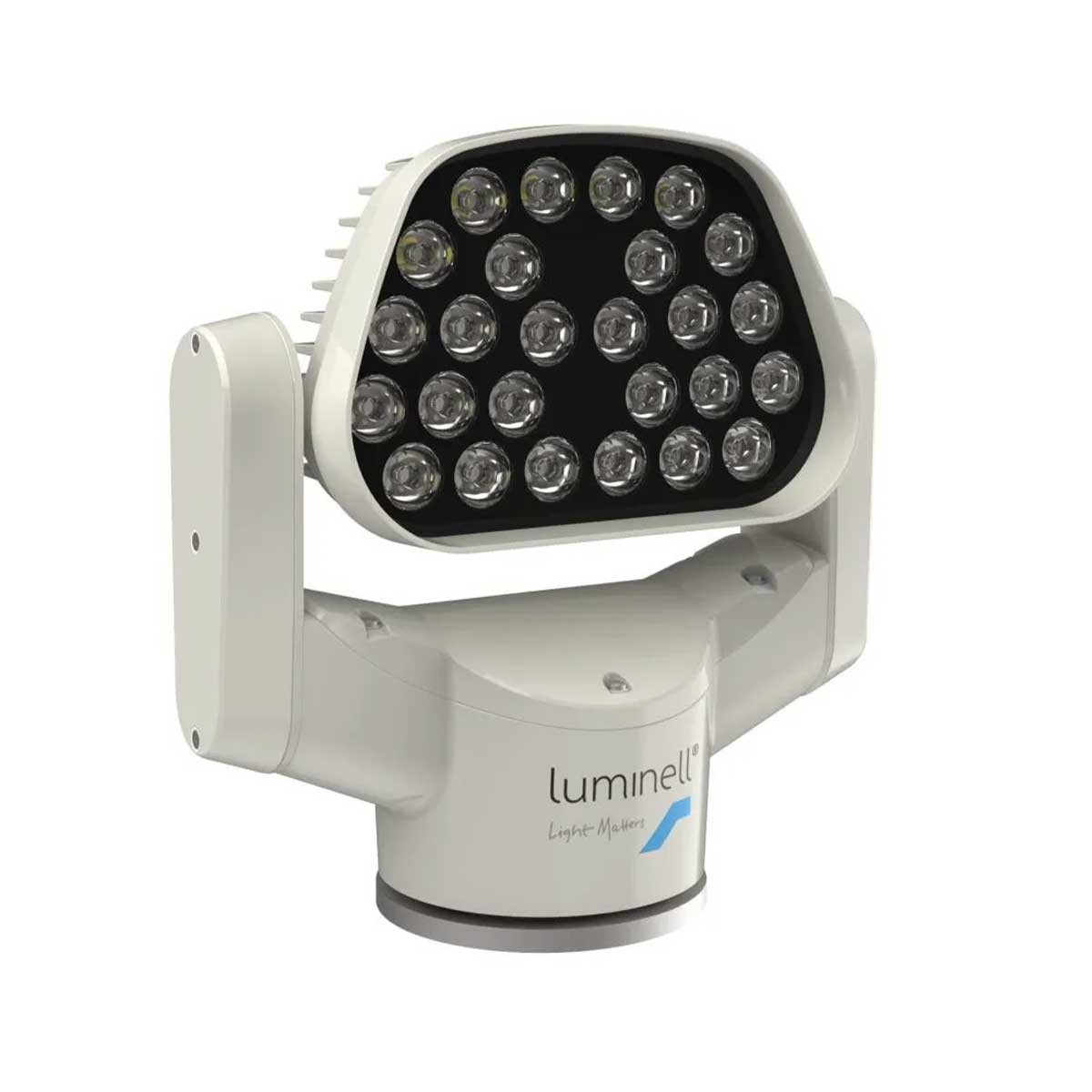

SL1 White LED Searchlight

POWERFUL LIGHTING FOR NAVIGATION

The SL1 searchlight delivers a luminous flux of 20,000 lumens. Its beam reaches 1 lux at 1,300 meters, effectively illuminating a distant area during maneuvers, search operations, or nighttime navigation.

• Luminous flux: 20,000 lm
• Range of 1 lux at 1,300 m
• Color temperature: 6,000 K
• Adjustable beam angle from 3.5° to 15°

The transition between a concentrated beam and a wider beam is digitally controlled. The light intensity can also be adjusted to tailor the lighting to the crew’s needs.

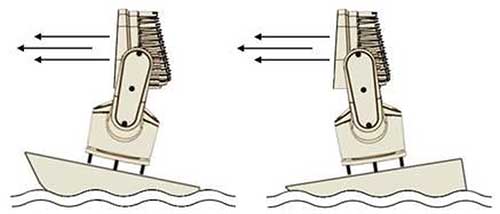

WAVE COMPENSATION

The SL1 comes standard with a wave compensation system. This feature helps keep the beam focused on the target area despite the boat’s movement—a significant advantage during operations in rough seas.

• Integrated swell compensation
• 360° horizontal rotation
• Unlimited horizontal movement
• Next-generation control system

The control system also offers a language selection option on the screen. The projector can be integrated with Unity HUB for compatible installations.

DESIGNED FOR DEMANDING CONDITIONS

Developed for professional use, the SL1 combines a compact design with a rugged build. Its anodized aluminum housing and IP66/67 rating meet the demands of outdoor onboard installation.

• Anodized aluminum construction
• IP66/67 protection rating
• Power supply: 24 V DC
• Power: 500 W

The floodlight can be installed in a standing or suspended position. Its LED technology provides a minimum of 30,000 hours of illumination, and its design is intended to minimize maintenance requirements.

KEY FEATURES:

• Weight: 21 kg
• 24 V DC power supply
• IP66/67 marine-grade protection
• Luminous flux of 20,000 lumens
• Range from 1 lux up to 1,300 meters
• Adjustable beam angle from 3.5 to 15° with built-in swell compensation

BOX CONTENTS:

• 1 - SL1 White LED Searchlight
• 1 - SL1 Control Panel
• 1 - Power cable for control panel
• 3 - Circular-to-RJ45 LAN cables
• 2 - RJ45 to RJ45 Keystone Adapters
• 1 - PDF documentation
