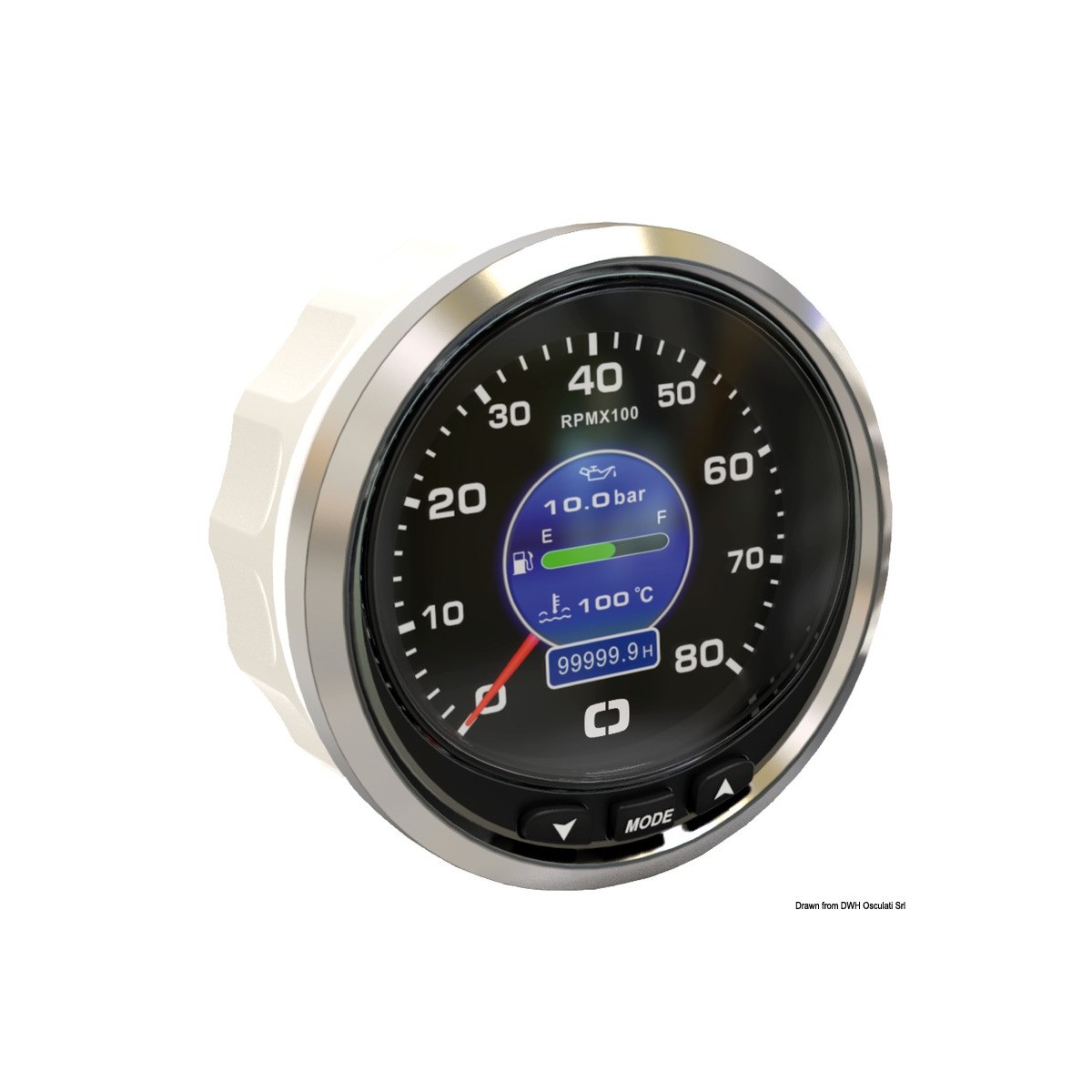

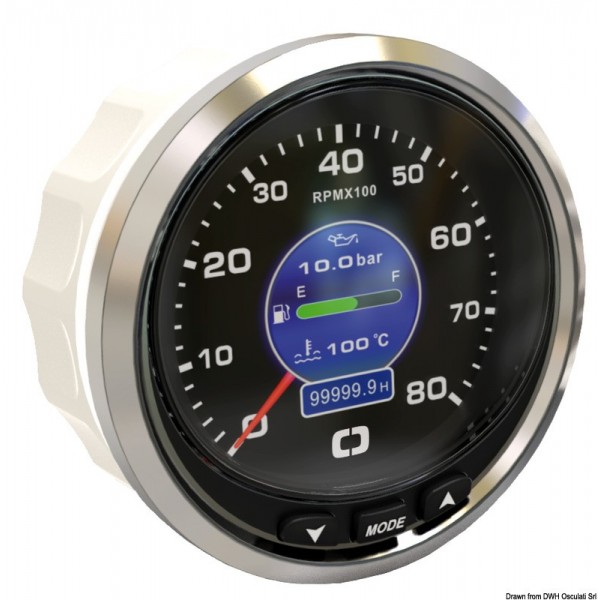

Multifunction LCD instrument
Ref.
OSC-27.328.01
OSCULATI's multifunction instrument is waterproof and easy to install on the boat's cockpit. The instrument allows you to benefit from the following functions: speedometer,-rpm counter, hour meter, fuel level & much more, thanks to connection to the NMEA 2000, JO39 or analog network.
Read more Features
Read more Features
€447.90
Tax included
Public price
€499.44
Price tax excl. / DOM TOM
€373.25
OSC-27.328.01
Data sheet
Osculati - Multifunction LCD instrument
Compatible with NMEA2000 / J1939 / analog protocols.
Can be used on any outboard / inboard motor, except Mercury with SMARTCRAFT protocol.
Functions :
- speedometer via GPS signal (knots, km/h, MPH);
- tachometer with freely selectable scale from 3000 to 8000 rpm;
- hour counter;
- built-in GPS antenna;
- fuel level alarm 10%. Freely selectable 0-190 / 240-33 ohm;
- oil pressure alarm at 0.7 bar (preferred scale bar/psi freely selectable);
- water temperature alarm 95° (scale Celsius / Fahrenheit) freely selectable.
Backlit dial (easy to read, even in bright sunlight) with adjustable illumination. Backlit dial in red and yellow. 9/32 V power supply. Dial resolution 432x432 pixels.
Accessories included: 1 m 5-pin NMEA cable with standard end plug, 1 m 6-pin analog cable.
Can be used on any outboard / inboard motor, except Mercury with SMARTCRAFT protocol.
Functions :
- speedometer via GPS signal (knots, km/h, MPH);
- tachometer with freely selectable scale from 3000 to 8000 rpm;
- hour counter;
- built-in GPS antenna;
- fuel level alarm 10%. Freely selectable 0-190 / 240-33 ohm;
- oil pressure alarm at 0.7 bar (preferred scale bar/psi freely selectable);
- water temperature alarm 95° (scale Celsius / Fahrenheit) freely selectable.
Backlit dial (easy to read, even in bright sunlight) with adjustable illumination. Backlit dial in red and yellow. 9/32 V power supply. Dial resolution 432x432 pixels.
Accessories included: 1 m 5-pin NMEA cable with standard end plug, 1 m 6-pin analog cable.
