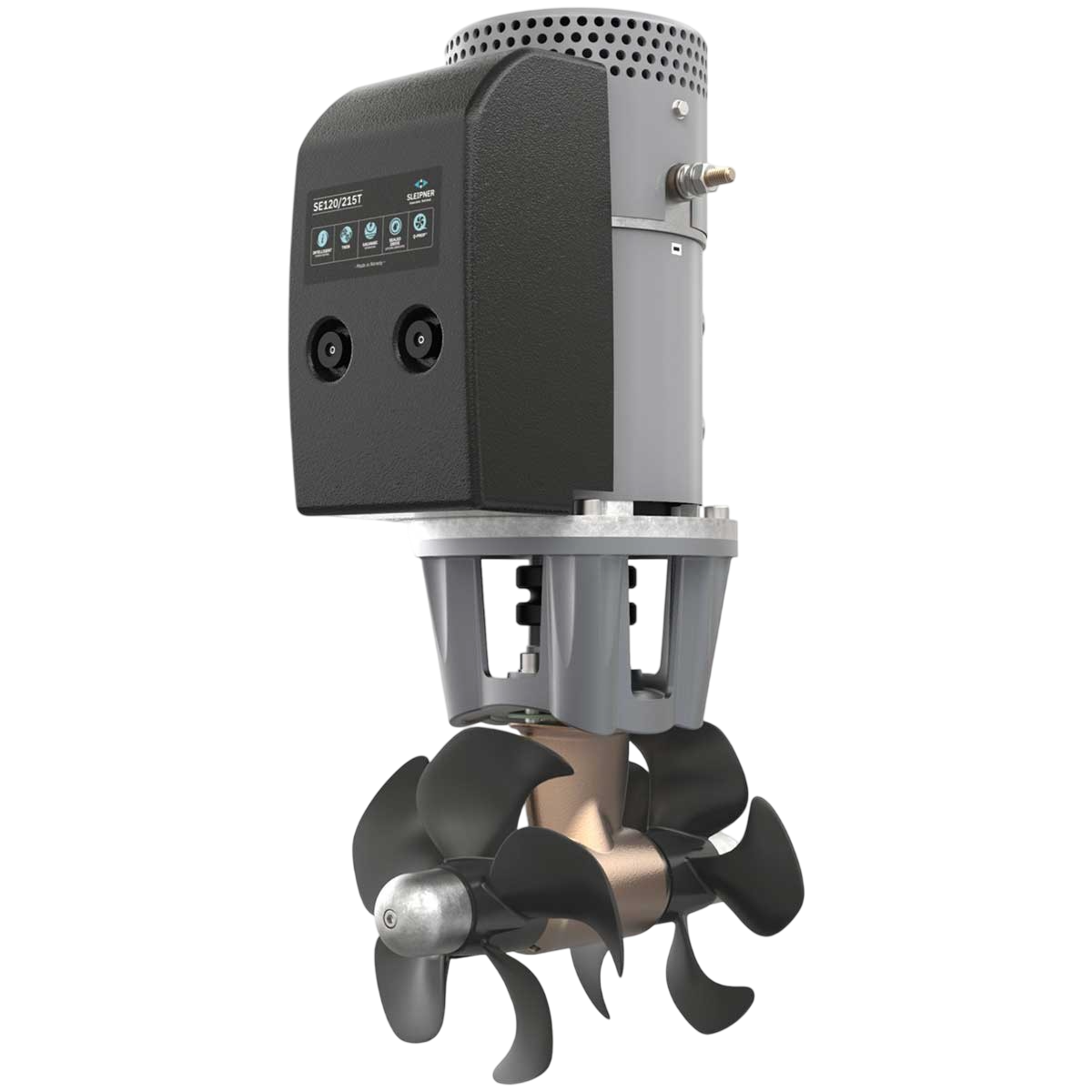

SE120 electric bow thruster / Ø 215 mm 24V
Ref.
PR121
The Sleipner Side-Power SE120 24V electric bow thruster meets the demands of modern boats, thanks to its high power output and compact 215 mm-diameter tunnel , typically used on 13-18 m boats . With its 120-139 kg thrust, you get a reliable thruster when you need it most.
Technical information:
- Design and manufacture focused on performance, reliability, ease of use and safety
- Easy assembly
- Pre-wired harnesses, ready to connect
- Childproof lock
- Automatic switch-off after use
- Reverse thrust timer protection
- Thermal protection integrated into motor
- IPC power relay protection system
- Protection against prolonged operation: max. operating time 3 min, on/off control.
- Available in 24V
€3,139.90
Tax included
Public price
€3,521.41
Price tax excl. / DOM TOM
€2,616.58
PR121
Data sheet
- Voltage
- 24V
- Boat size
- From 10 to 20 m
- Max. thrust (in kg)
- 139 kg
- Tunnel diameter
- Ø 215 mm
- Power (kW)
- 6.4 kW
Waterproof electric thruster for boats from 13 to 18 m.
- Model: SE120
- Voltage : 24V
- Power output : 6.4 kW / 8.55 Hp
- Thrust at 12/24V : 139 kg
- Thrust at 10.5/21V : 120 kg
- A Ø tunnel : 215 mm
- B : 389 mm
- C min : 215 mm
- D min : 280 mm
- E min : 6 mm
- E max : 8 mm
- Motor at 10.5/21V: 6.5Kw
- Weight: 34 kg
- Min. battery capacity in CCA: In 24V (DIN - SAE): 450 - 855
IPC control system (Intelligent Power Control)
- Improves thruster reliability and safety. If the relay is blocked during operation, the thruster is automatically stopped.
Sealed gearleg
- The assembled gearleg is supplied pre-filled with oil. The propeller shaft is sealed with a ceramic/graphite mechanical seal for maximum reliability.
Twin Propeller
- The twin propeller system offers more thrust than a single propeller system with the same tunnel diameter. Sleipner has chosen this configuration for mid-range models where high thrust is required in a reduced tunnel diameter.
Q-PROP propellers
- 5-blade propellers with asymmetrical (skew) profile. These new propellers deliver a thrust gain of around 5%, while reducing noise levels.
Accessories
- -€26.49
- -€20.08
- -€55.06
- -€50.37
Customer Reviews (0)
Questions / Answers (1)
Bonjour est ce que les câbles de commande et le panneau de commande sont inclus avec le propulseur ?
Étienne R, the 12/09/2024
Bonjour, non le propulseur est vendu seul. Il vous faut choisir les bons accessoires compatibles (câbles, tunnel et panneau de commande) dans les accessoires associés en bas de page de chaque propulseur. Vous pouvez également opter pour un pack pré-fait par nos soins dans le rayon "Pack propulseur".
N'hésitez pas à nous contacter pour toute demande en fonction de la configuration de votre bateau.
Comptoir Nautique Team
