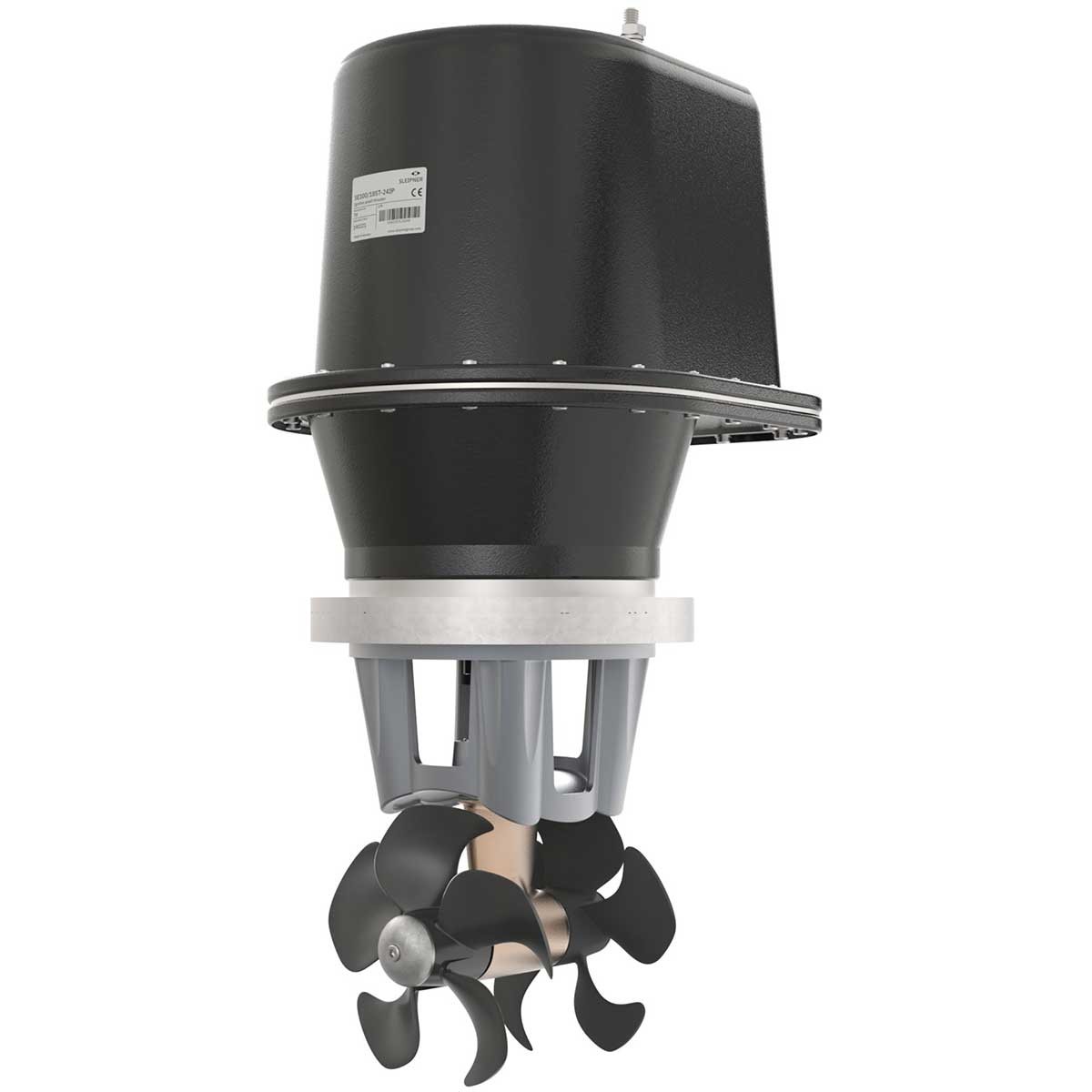

SE100 ignition-protected electric bow thruster / Ø 185 mm 24V

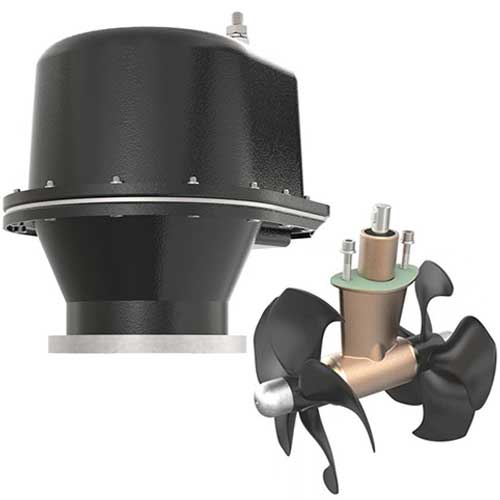

Thruster design

IPC control system (Intelligent Power Control) : Improves thruster reliability and safety. If the relay becomes stuck in the operating position, the thruster is automatically stopped.

Sealed gearleg: sealed gearleg supplied pre-filled with oil. The propeller shaft is sealed using a ceramic/graphite mechanical seal for maximum reliability.

Ignition Protection : ignition protection ensures a reliable and safe installation in areas where the thruster motor may be exposed to water or petrol vapours.

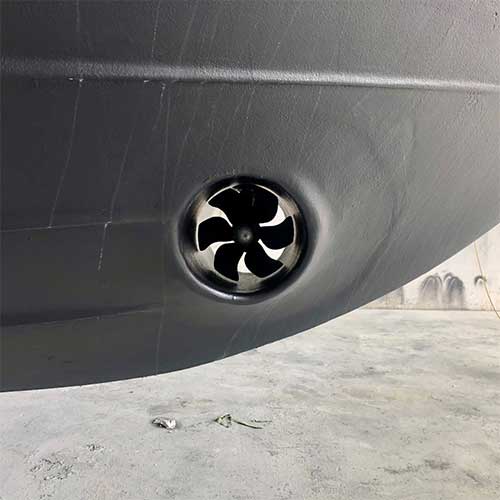

Twin Propeller : twin-propeller system providing greater thrust than a single-propeller system with the same tunnel diameter.

Q-PROP : 5-blade propeller with an asymmetric skewed profile. Provides approximately 5% more thrust while reducing noise levels.

Flexible Installation : adapts to the available space. This allows installation at any angle around the tunnel, according to the space available in your vessel.

Analogue : analogue signal cables with colour-coded Plug & Play connectors matching the wiring diagrams to ensure correct installation.

Splash protection : designed for installation in environments that may be exposed to moisture or occasional splashing.

Thruster specifications

• Voltage: 24V (SE100/185T-24V)
• Output power: 6.3 kW / 8.4 hp
• Thrust at 12/24V: 116 kg
• Thrust at 10.5/21V: 100 kg
• A Ø tunnel: 185 mm
• Motor at 10.5/21V: 6.3 kW
• Weight: 31 kg
• Minimum battery capacity in CCA: At 24V (DIN - SAE): 400 - 760

However, Comptoir Nautique recommends selecting a thruster with a higher power rating than that required solely by the size of your vessel.

The data is provided for guidance only and must take into account the specific characteristics of the boat (weight, construction materials, hull type, windage, current and wind conditions in your navigation area).

Should you have any questions, please do not hesitate to contact us by email (contact@comptoirnautique.com).

For the installation of a thruster, we recommend using a professional installer!

KEY FEATURES:

• 24V
• Ø tunnel: 185 mm
• For boats up to 17 m
• 100 to 116 kg of thrust
• For motorboats or sailing boats

BOX CONTENTS:

• 1 - Sleipner SE80/185T-IP 24V thruster
• 1 - PDF documentation
