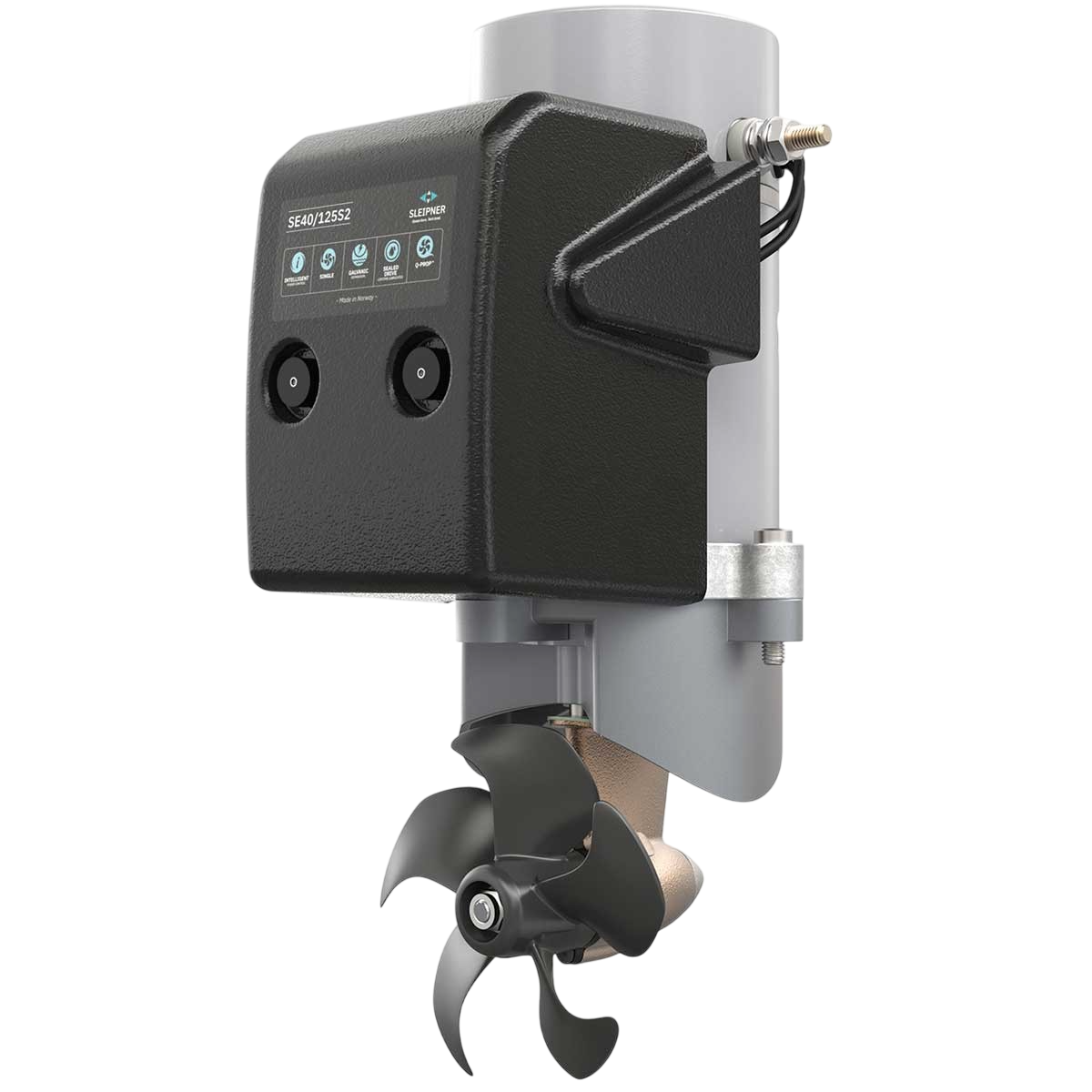

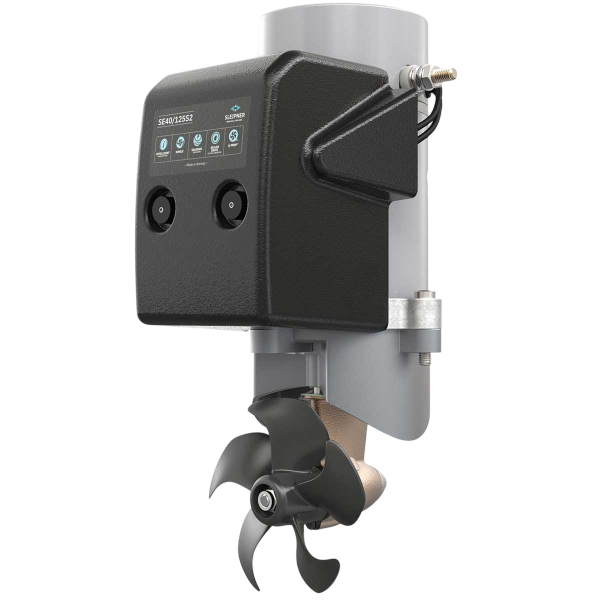

SE40 electric bow thruster / Ø 125 mm 12V
Ref.
PR1040
The Sleipner Side-Power SE40/125S electric bow thruster is a compact thruster designed to fit a tunnel only 125 mm in diameter . The SE40 thruster is suitable for 8-10 m vessels and features 40-48 kg of thrust .
Technical information
- Design and manufacture focused on performance, reliability, ease of use and safety
- Simple assembly
- Pre-wired, ready-to-connect harnesses
- Child safety lock
- Automatic switch-off after use
- Reverse thrust timer protection
- Thermal protection integrated into motor
- IPC power relay protection system
- Protection against prolonged operation: max. operating time 3 min, on/off control.
€1,109.90
Tax included
Public price
€1,246.08
Price tax excl. / DOM TOM
€924.92
PR1040
Data sheet
- Voltage
- 12V
- Boat size
- From 1 to 10 m
- Max. thrust (in kg)
- 48 kg
- Tunnel diameter
- Ø 125 mm
- Power (kW)
- 2.2 kW
Compact electric thruster for 8 to 10-meter vessels, with 40 to 48 kg thrust.
- Model: SE40/125S2
- Voltage : 12V
- Power output : 2.2 kW / 3 Hp
- Thrust at 12/24V : 48 kg
- Thrust at 10.5/21V : 40 kg
- A Ø tunnel : 125 mm
- B : 258 mm
- C min : 125 mm
- D min : 92 mm
- E min : 4 mm
- E max: 5 mm
- Motor: 2.2 kW
- Weight: 10 kg
- In 12V (DIN - SAE): 300 - 570
IPC control system (Intelligent Power Control)
- Improves thruster reliability and safety. If the relay is blocked during operation, the thruster is automatically stopped.
Sealed gearleg
- The assembled gearleg is supplied pre-filled with oil. The propeller shaft is sealed with a ceramic/graphite mechanical seal for maximum reliability.
S Single: Single propeller
- A properly designed single-propeller system is the most efficient in terms of output. Its compact shape adapts easily to a narrow bow.
Q-PROP: 5-blade propeller
- 5-blade propeller with asymmetrical (skew) profile. These new propellers deliver a thrust gain of around 5%, while reducing noise levels.
