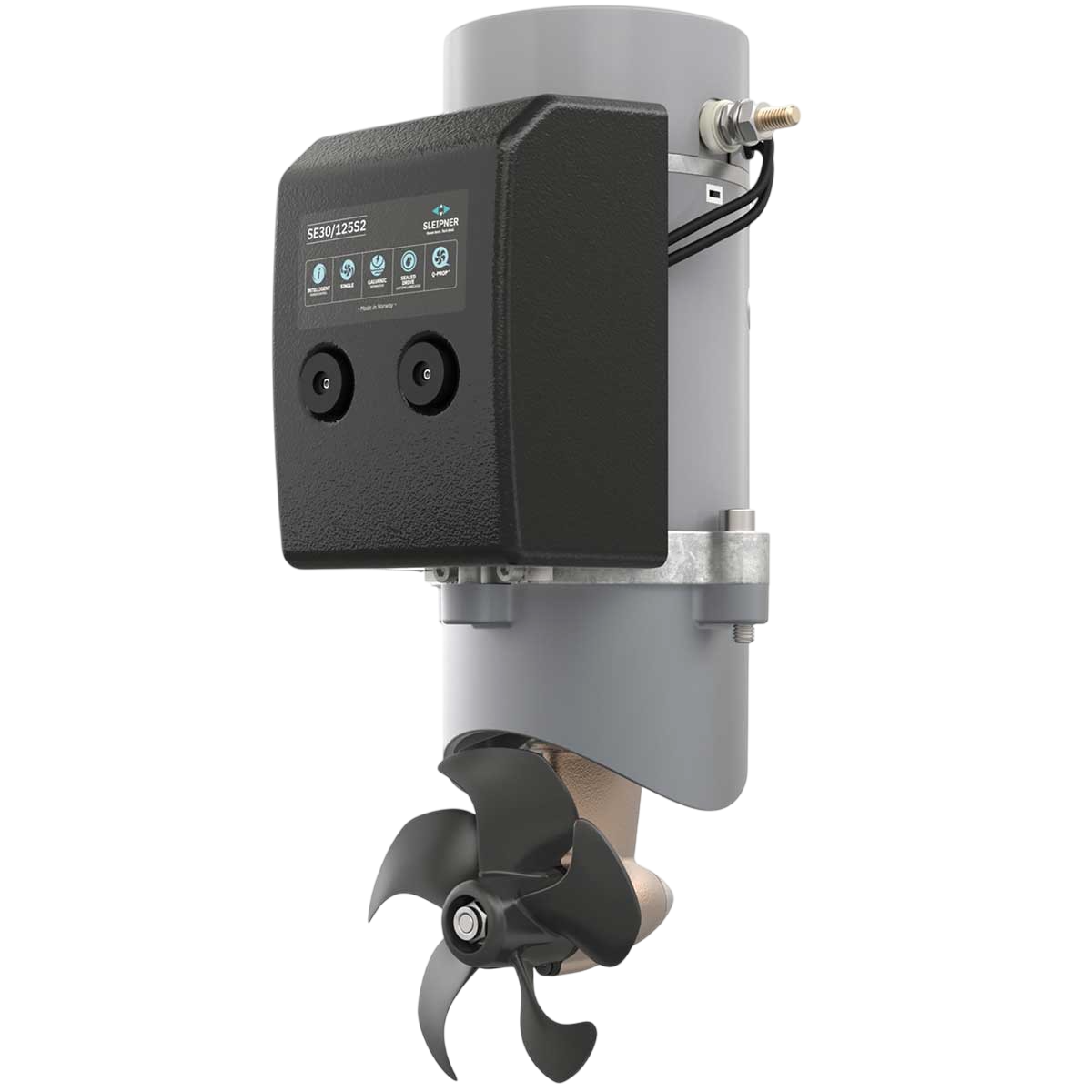

SE30 electric bow thruster / Ø 125 mm 12V

Ref. PR1030

The Sleipner Side-Power SE30/125S2 electric bow thruster is a compact thruster designed to fit a tunnel only 125 mm in diameter. The SE30 thruster is suitable for vessels from 6 to 8 m and features 30 to 40 kg of thrust.

Technical information

  • Design and manufacture focused on performance, reliability, ease of use and safety
  • Easy installation
  • Pre-wired, ready-to-connect harnesses
  • Child safety lock
  • Automatic switch-off after use
  • Reverse thrust timer protection
  • Thermal protection integrated into motor
  • IPC power relay protection system
  • Protection against prolonged operation: max. operating time 3 min, on/off control.
Read more Features
€1,005.90 Tax included
Public price
€1,130.03
-10%
or pay in
10x 60x
Price tax excl. / DOM TOM €838.25
Quantity
IN SUPPLIER STOCK
Delivery times and costs
By buying this product you can collect up to 1005 loyalty points. Your cart will total 1005 points that can be converted into a voucher of €10.05.
PR1030

Data sheet

Voltage
12V
Boat size
From 1 to 10 m
Max. thrust (in kg)
40 kg
Tunnel diameter
Ø 125 mm
Power (kW)
1.5 kW
Description

Compact electric thruster for vessels from 6 to 8 meters, with 30 to 40 kg thrust.

  • Voltage: 12V
  • Power output: 1.5 kW / 2 Hp
  • Thrust at 12/24V : 40 kg
  • Thrust at 10.5/21V : 30 kg
  • A Ø tunnel : 125 mm
  • B : 258 mm
  • C min : 125 mm
  • D min : 92 mm
  • E min : 4 mm
  • E max : 5 mm
  • Motor: 1.5 kW
  • Weight: 9.5 kg
  • Min. battery capacity in CCA: In 12V (DIN - SAE): 200 - 380

IPC control system (Intelligent Power Control)

  • Improves thruster reliability and safety. If the relay is blocked during operation, the thruster is automatically stopped.

Sealed gearleg

  • The assembled gearleg is supplied pre-filled with oil. The propeller shaft is sealed with a ceramic/graphite mechanical seal for maximum reliability.

S Single: Single propeller

  • A properly designed single-propeller system is the most efficient in terms of output. Its compact shape adapts easily to a narrow bow.

Q-PROP: 5-blade propeller

  • 5-blade propeller with asymmetrical (skew) profile. These new propellers deliver a thrust gain of around 5%, while reducing noise levels.

Download

SE & SE-IP thrusters manual

SE and SE-IP Sleipner explosion-proof electric bow thruster owner's manual

Download (933.76k)

Notice propul. SE30-40 D.125mm

SE30 and SE40 diam 125mm Sleipner electric bow thruster owner's manual

Download (970.61k)
