Electric bow thruster SE30 OST / Ø 140 mm 12V
Ref.
PR1033

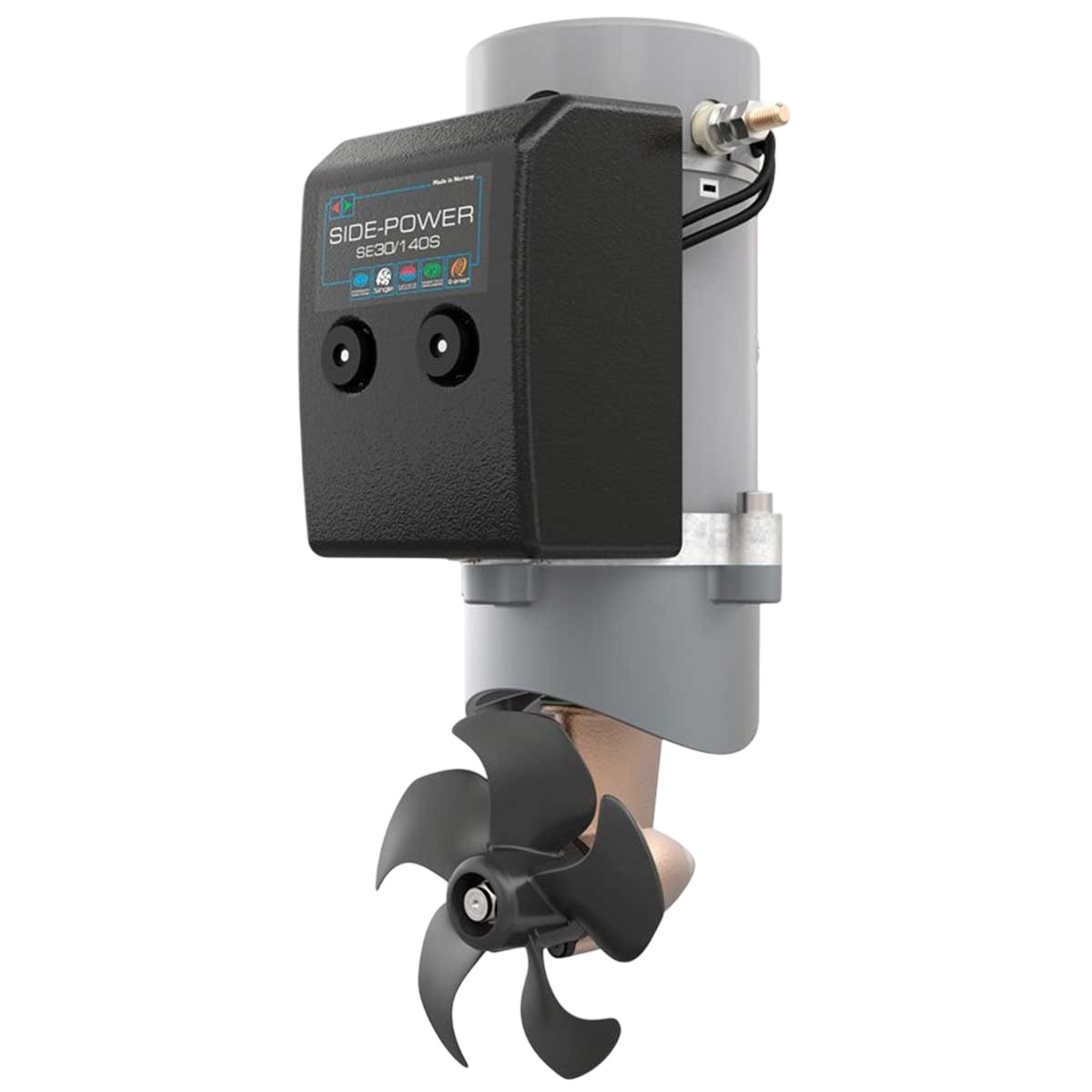

The Sleipner Side-Power SE30/140-OST electric bow thruster is a compact thruster designed to fit a tunnel only 140 mm in diameter. The SE30 thruster is suitable for vessels from 6 to 8 m and features 30 to 40 kg of thrust.
Technical information
- Design and manufacture focused on performance, reliability, ease of use and safety
- Easy installation
- Pre-wired, ready-to-connect harnesses
- Child safety lock
- Automatic switch-off after use
- Reverse thrust timer protection
- Thermal protection integrated into motor
- IPC power relay protection system
- Protection against prolonged operation: max. operating time 3 min, on/off control.
€1,225.90
Tax included
Public price
€1,377.25
Price tax excl. / DOM TOM
€1,021.58
PR1033
Data sheet
- Voltage
- 12V
- Boat size
- From 1 to 10 m
- Max. thrust (in kg)
- 40 kg
- Tunnel diameter
- Ø 140 mm
- Power (kW)
- 1.5 kW
Compact electric thruster for vessels from 6 to 8 meters, 30 to 40 kg thrust.
- Model: SE30 / 140OST
- Power output: 1.5 kW / 2 Hp
- Voltage : 12V
- Thrust at 12V : 40 kg
- Thrust at 10.5V : 30 kg
- A Ø tunnel : 140 mm
- B : 257 mm
- C min : 140 mm
- D : 125 mm
- E min : 4 mm
- E max : 12 mm
- Motor: 1.5 kW
- Weight: 9.5 kg
- Minimum battery capacity: In 12V CCA (DIN - SAE): 200 - 380
IPC control system (Intelligent Power Control)
- Improves thruster reliability and safety. If the relay is blocked during operation, the thruster is automatically stopped.
Sealed gearleg
- The assembled gearleg is supplied pre-filled with oil. The propeller shaft is sealed with a ceramic/graphite mechanical seal for maximum reliability.
S Single: Single propeller
- A properly designed single-propeller system is the most efficient in terms of output. Its compact shape adapts easily to a narrow bow.
Q-PROP: 5-blade propeller
- 5-blade propeller with asymmetrical (skew) profile. These new propellers deliver a thrust gain of around 5%, while reducing noise levels.
