Compass electric toilet

Ref. OSC-50.229.03

Compact and silent, the Tecma Compass Short 12V electric marine toilet is a natural choice for boats where space is at a premium.

With easy installation and the ability to operate in both fresh and seawater, it adapts to every sailing requirement.

Read more Features
from
€599.92
Public price
€670.18
-10%
Price tax excl. / DOM TOM €599.92
Quantity
Choose a version
In stock in 8 to 10 days
599 loyalty points.
Article
Model V misure mm - height misure mm - width misure mm - depth peso
In stock in 8 to 10 days
Compass High 12 445 365 485 21,5
€663.25
In stock in 8 to 10 days
Compass High 24 445 365 485 21,5
€663.25
In stock in 8 to 10 days
Compass Short 12 365 365 485 19,5
€599.92
In stock in 8 to 10 days
Compass Short 24 365 365 485 19,5
€599.92
OSC-50.229.03

Data sheet

new
📦 Bulky parcel
Voltage
12V
Product type
WC
Description

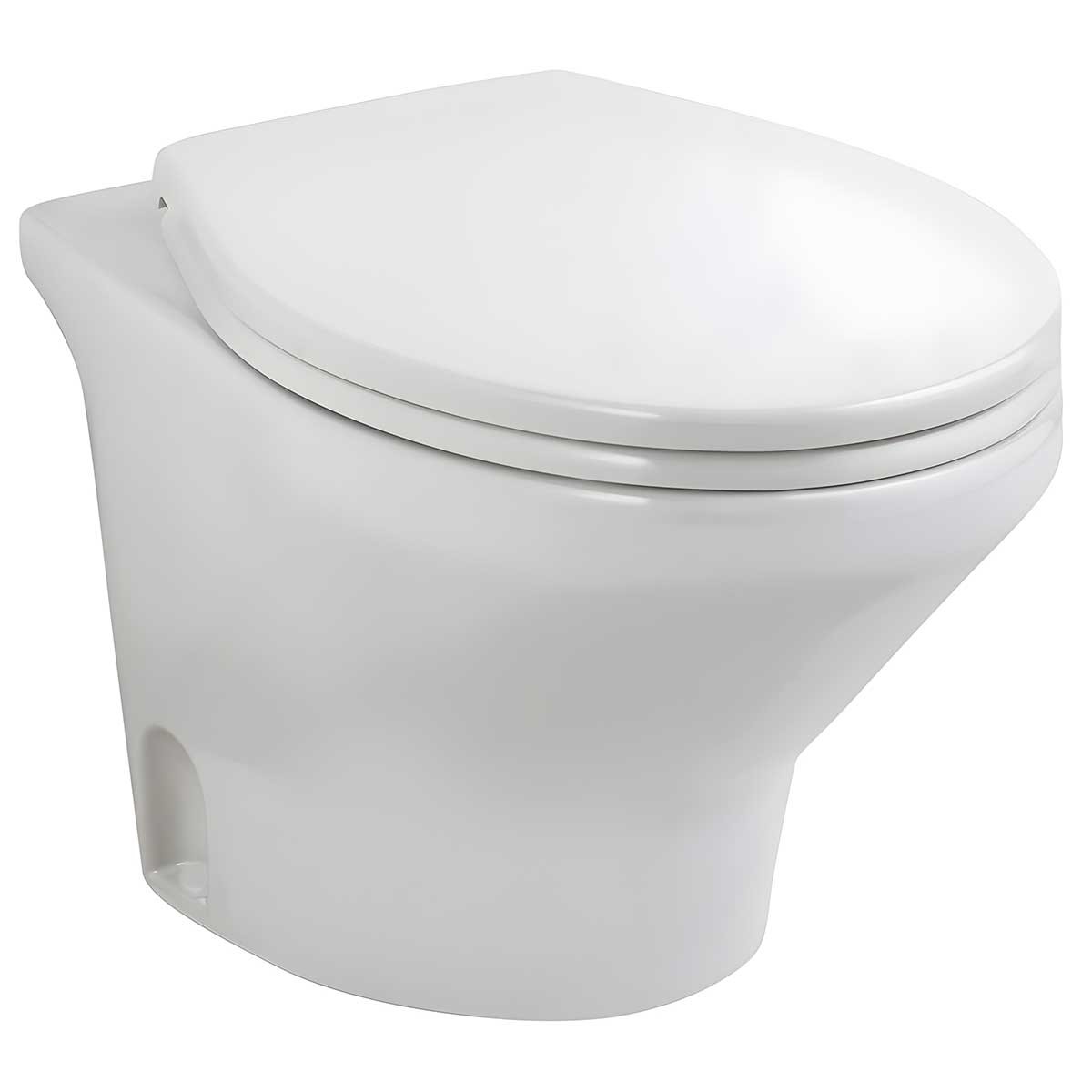

Tecma - Compass electric toilet

The Tecma Compass Short 12V electric toilet combines compactness and performance for all boats, from sailboats to yachts from 6 to 15 meters. Designed to fit easily into tight spaces, it offers powerful evacuation thanks to its integrated MAC 4 12V macerator pump, while ensuring high reliability and simplified maintenance. Perfect for demanding boaters looking for hygiene, safety and ease of daily use.

Its robust design, adapted to intensive marine use, guarantees a long service life, even in the toughest conditions. Whether you choose freshwater or seawater supply, the Compass Short adapts to all configurations.

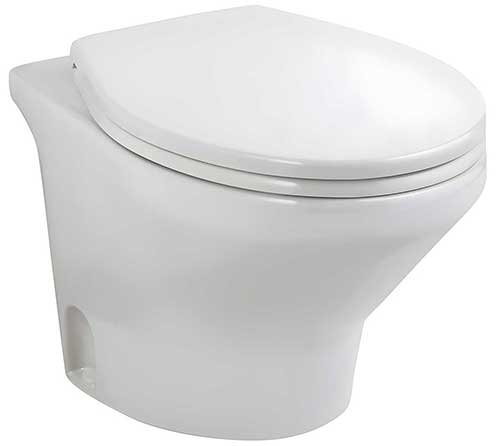

WC électrique Tecma Compass Short

COMPACT AND VERSATILE

Thanks to its compact dimensions, Compass Short is ideal for use on small boats and larger craft alike. It is designed for rapid installation, and adapts to both fresh and salt water, depending on the constraints of your configuration. Its MAC4 12V macerator pump offers 4 m vertical discharge and 40 m horizontal discharge

  • Water consumption: 0.5 to 2.7 liters per flush

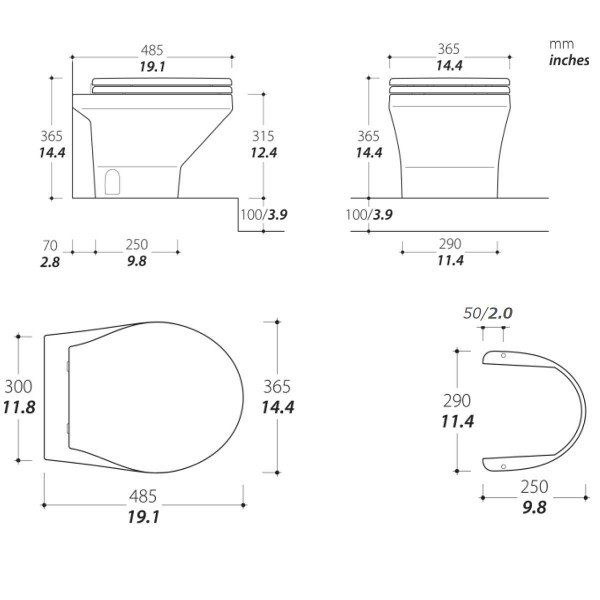

  • Dimensions HxWxD: 365 x 365 x 485 mm
  • Thermoset plastic seat with soft close
  • Suitable for all types of cisterns and feeders

A reference choice for optimizing every square centimeter without compromising on comfort or safety.


EVERYDAY PERFORMANCE AND COMFORT

Compass Short is equipped with a powerful, silent shredding pump. Its dual "Add Water" and "Flush" controls enable precise management of water supply and discharge, limiting consumption and ensuring optimum hygiene.

  • Intuitive operation, dual-function control
  • Integrated maceration pump for efficient grinding
  • Low water consumption (0.5 to 2 liters)
  • Anti-backflow system and-siphoning safety device

Reliable operation, even under prolonged use or demanding on-board conditions.

Tecma Compass Short 12V

PRESENTATION WC COMPASS TECMA

KEY FEATURES

  • Weight: 19.5 kg
  • Ceramic Made in Italy
  • Simple, safe installation
  • Resistant materials and easy cleaning
  • Integrated macerator and powerful drain
  • Dual-function "Add Water" and "Flush" controls

CONTENTS OF BOX :

  • 1 - Electric WC Tecma Compass Short 12V

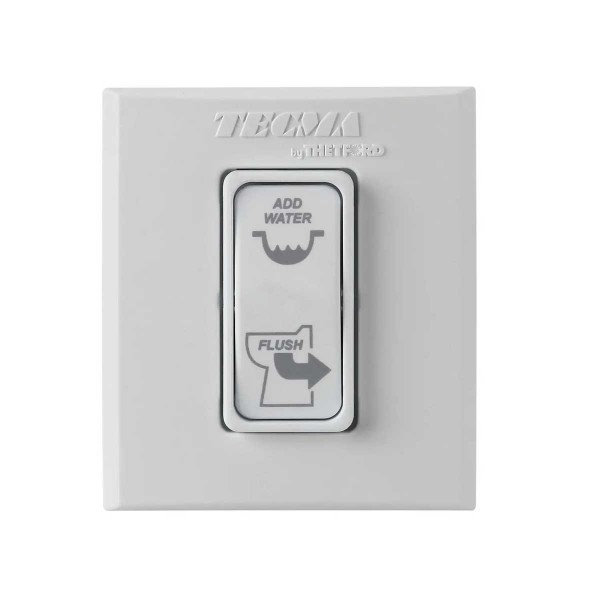

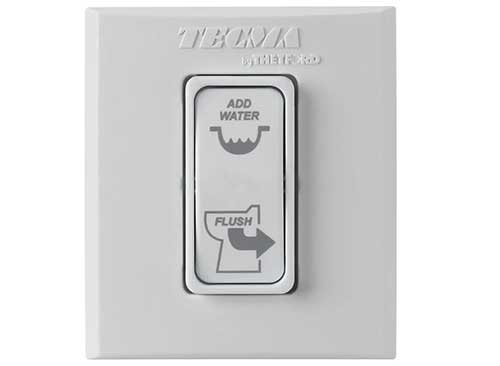

  • 1 - Dual-function Eco Rocker Switch control

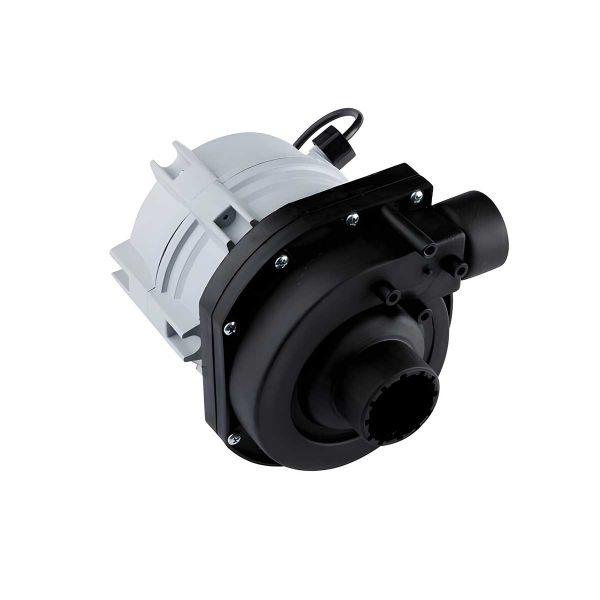

  • 1 - MAC 4 12V macerator pump

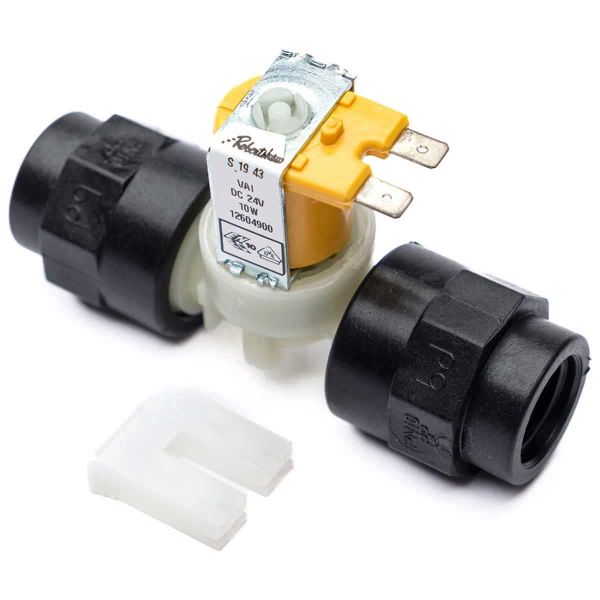

  • 1 - Solenoid valve 12V
  • 1 - Fixing kit
  • 1 - PDF documentation

Download

WC Compass manual Tecma

Installation and Operating Manual WC Compass Tecma (FR-ES-DE-ES-IT)

Download (1.16M)
