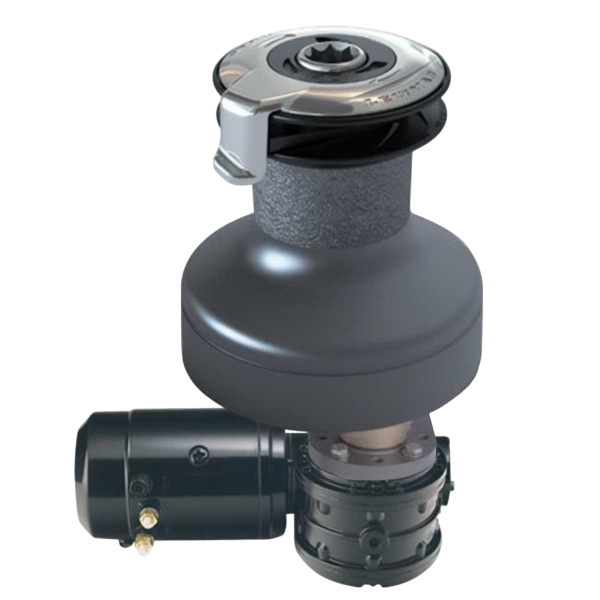

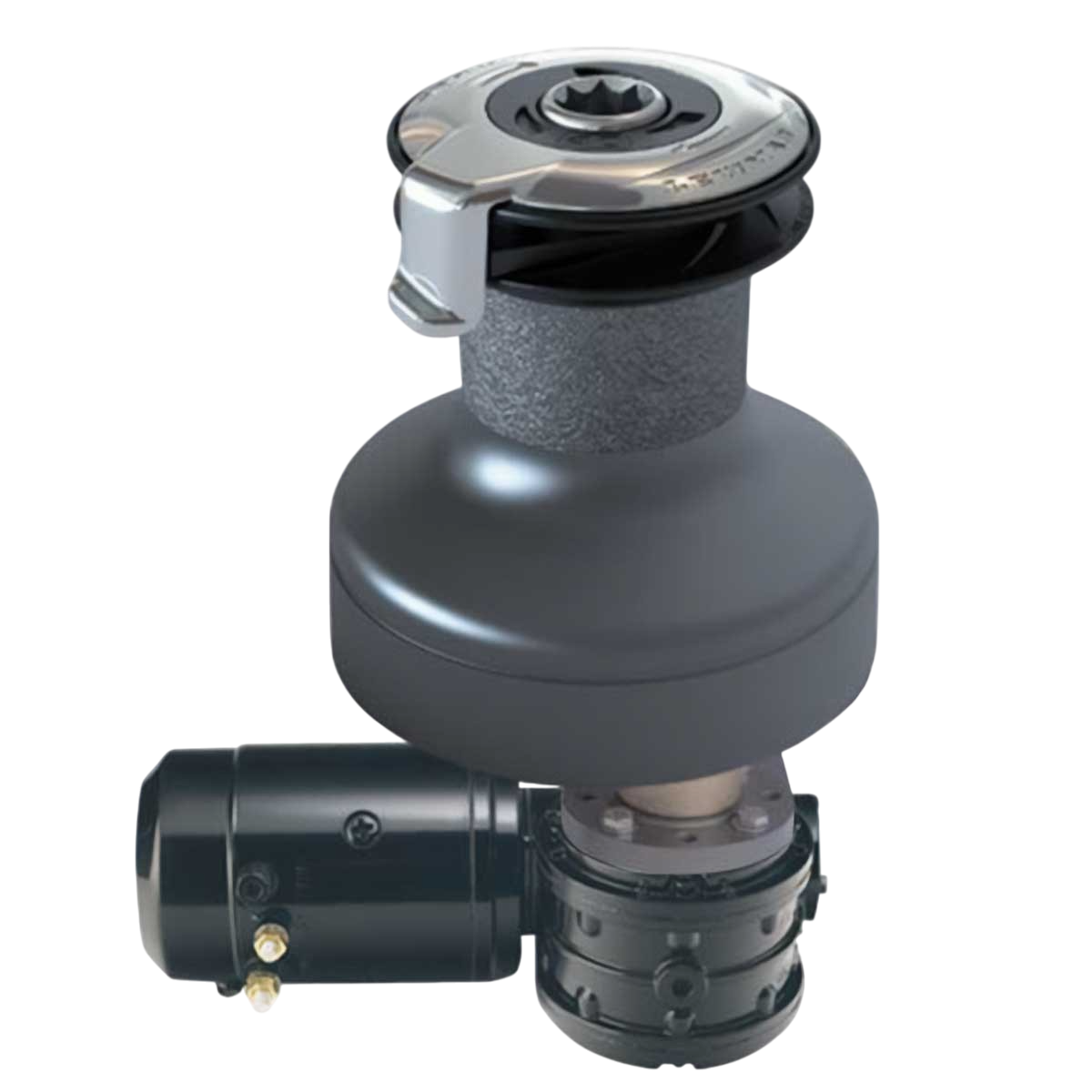

Electric winch kit EVO 40 Self Tailing - 12V - Grey
Ref.
49540200
The Lewmar EVO 40 Self Tailing 12V electric winch kit revolutionizes sail handling , making it simpler and more efficient than ever. Featuring one-button power , it offers silent motorization for a smoother sailing experience. What's more, it can be used in manual mode with two manual speeds in addition to its electric speed. Easy installation makes it a practical addition to any boat.
The winch has a working load of 795 kg .
This self-tailing model enables a single crew member to maneuver the rope efficiently, whereas on a conventional winch it often takes several people to maintain tension and wind the rope correctly. It offers greater control over rope tension , which is essential for fine-tuning sails to suit wind conditions .
Read more Features
€4,515.90
Tax included
Public price
€4,753.55
Price tax excl. / DOM TOM
€3,763.25
49540200
Data sheet
- Range
- Evo, Self-tailling
- Voltage
- 12V
- Maximum load
- 795 kg
- Colors
- Grey
- Rope Ø
- 8-12 mm
- Number of speeds
- 1 electric, 2 manual
Lewmar - Electric winch kit EVO 40 Self Tailing - 12V - Grey
This model is supplied with the relay pre-mounted on the gearmotor, eliminating the need for complicated wiring for cleaner, easier installation . Simply connect the battery and the switch supplied.
Kit contents :
- Winch Lewmar Evo 40 ST
- 12V motor
- Relay
- Circuit breaker
- Switch
Winch technical features :
- Easy maintenance, no tools required
- User-assistance arrow
- 7-year warranty
- For rope Ø: 8-12 mm
- Transmission ratio: 1.9:1 / 5.8:1
- Power ratio: 13.2:1 / 40.2:1
- Working load limit: 795 kg
- Winch weight: 4.9 kg
- Mounting info: 5 x M6 - circumference 121 mm
Motor specifications
- 12V motor
- Power rating: 700W
- E Series relay: Motor temperature control
- Circuit breaker : 90 A
Dimensions :
- H : 175 mm
- L : 95.4 mm
- M : 238.5 mm
- P : 50 mm
- T : 34.4 mm
- U : 120.7 mm
- V : 72.5 mm
- B : 154 mm
- Total weight: 17.8 kg
