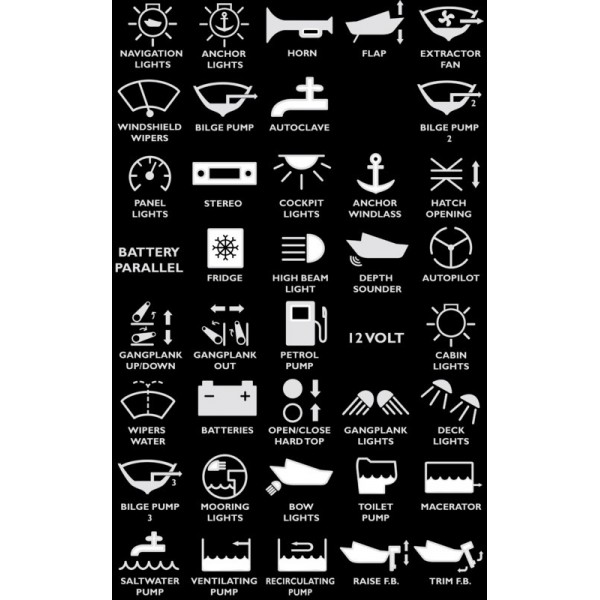

Card with 48 stickers for 14.691.xx

Modular glass touch panel with backlit symbols. Supplied with a card containing 48 stickers of the various functions to be applied under the glass.
Leaves the smooth surface and effect of a printed panel.

Each switch is programmable in three modes:

- ON-OFF classic: pressing activates the function, pressing again deactivates it.
Ex.: COCKPIT LIGHTS
-----------------------------------------------
- (ON) OFF temporary: the function is active only as long as the button is pressed Ex. 1 : switch - WARNING Ex. 2 : switches - REMOVE/REMOVE ANCHOR ON OFF ALTERNATE: two keys can be programmed to activate one function so that another is switched off simultaneously, and vice versa.Ex.: SHIMMING PUMP MANUAL/AUTOMATIC xml- buttons are backlit yellow in standard mode, blue when the function is active and red when the connected circuit is short circuit.The panels are designed to be modular: when juxtaposed vertically and/or horizontally, they create the effect of a single integrated control panel with 4, 6, 8 (4+4), 10 (6+4), 12 (6+6) switches, and so on. The connection between the control unit and the panel is pre wired with a quick connector. The cable is 1.5m long, with the option of adding an extra 1.5m extension cable. Operation is protected against overload and reverse voltage (MOSFET module). The control unit is fitted with 4 or 6 thermal fuses, which intervene in the event of a short circuit (function button illuminated in red). The fuse resets automatically once the short circuit has been removed, and the button reverts to yellow. CE-certified panels, IP67 protection rating.-


-----------------------------------------------
--
------------


------------------------------------

-

-
-
