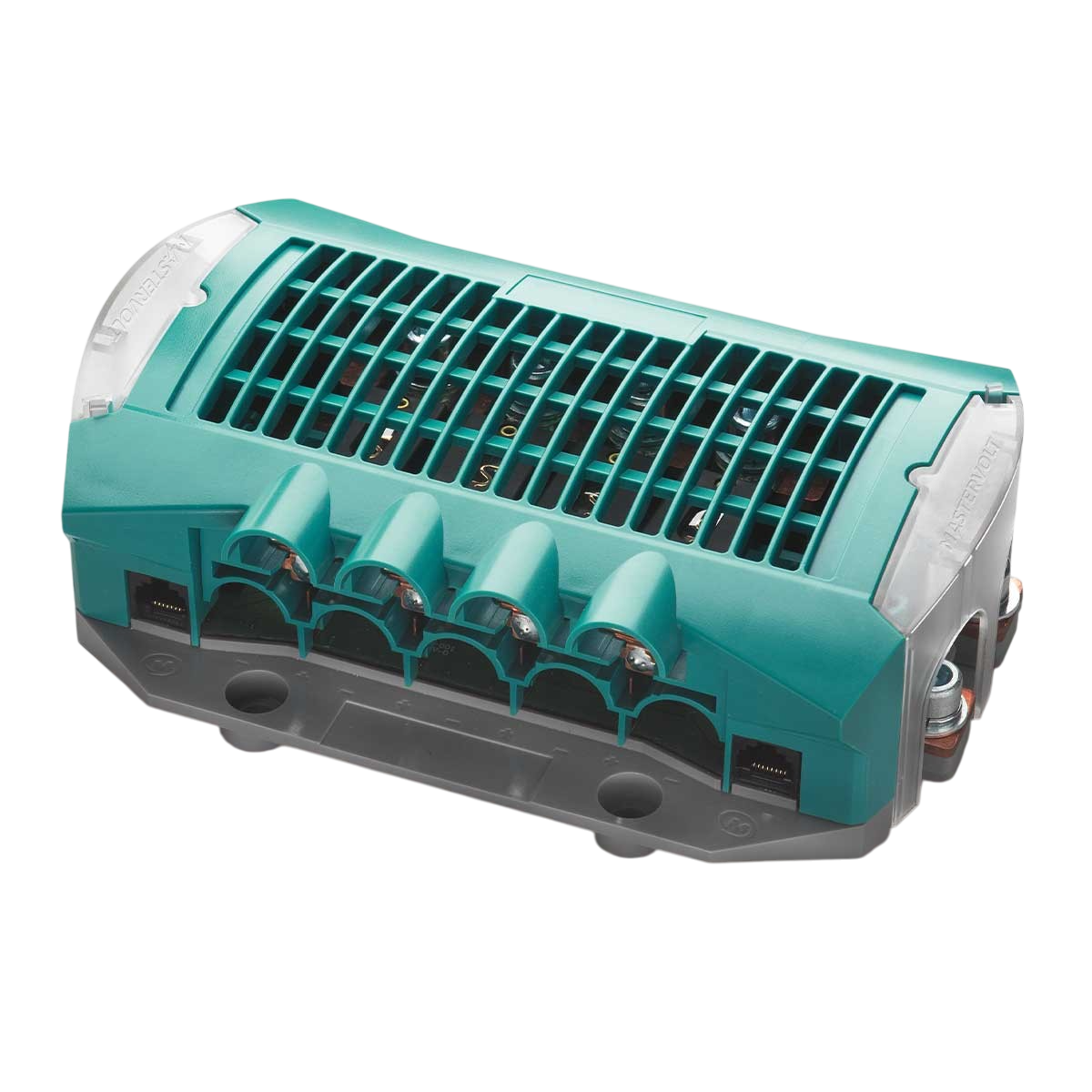

Distribution box 500
Ref.
77020200
The 500 distribution box Mastervolt is the most compact DC distribution model on the market.
It allows the connection of up to four DC devices, such as battery chargers, inverters, alternators or solar panels. Thanks to the integrated plug & play cable, it can be easily connected to the MasterBus network.
Read more
€365.90
Tax included
Public price
€408.00
Price tax excl. / DOM TOM
€304.92
77020200
MASTERVOLT - DISTRIBUTION BOX 500
The EasyView display assigns each fuse a logical name, linked to the connected equipment, to ensure clear error messages.
The DC Distribution is supplied with four ANL fuses : 80 (2x), 125 and 160 A and an additional 125 A fuse.
DC DISTRIBUTION 500 SPECIFICATIONS
| Power supply via MasterBus | no |
| Language display | ENG, NL, DE, ES, IT, FRA, FIN, SWE, DEN, NOR |
| Battery voltage | 12, 24 or 48V DC |
| Current | 300 A cont. / 500 A for 5 minutes |
| Standard fuses | 80 A (2x), 160 A and 125 A (other fuses can be ordered separately) |
| Additional fuses | 125 A - Type ANL |
| Alarms | monitoring fuse |
| Dimensions, HxWxD | 150 x 216 x 65 mm |
| Weight | 1.2 kg |
| Supplied with | four standard fuses and one spare, hexagonal key, MasterBus cable, MasterBus terminator, cable protectors for DC connection |
| Protection class | IP21 |
