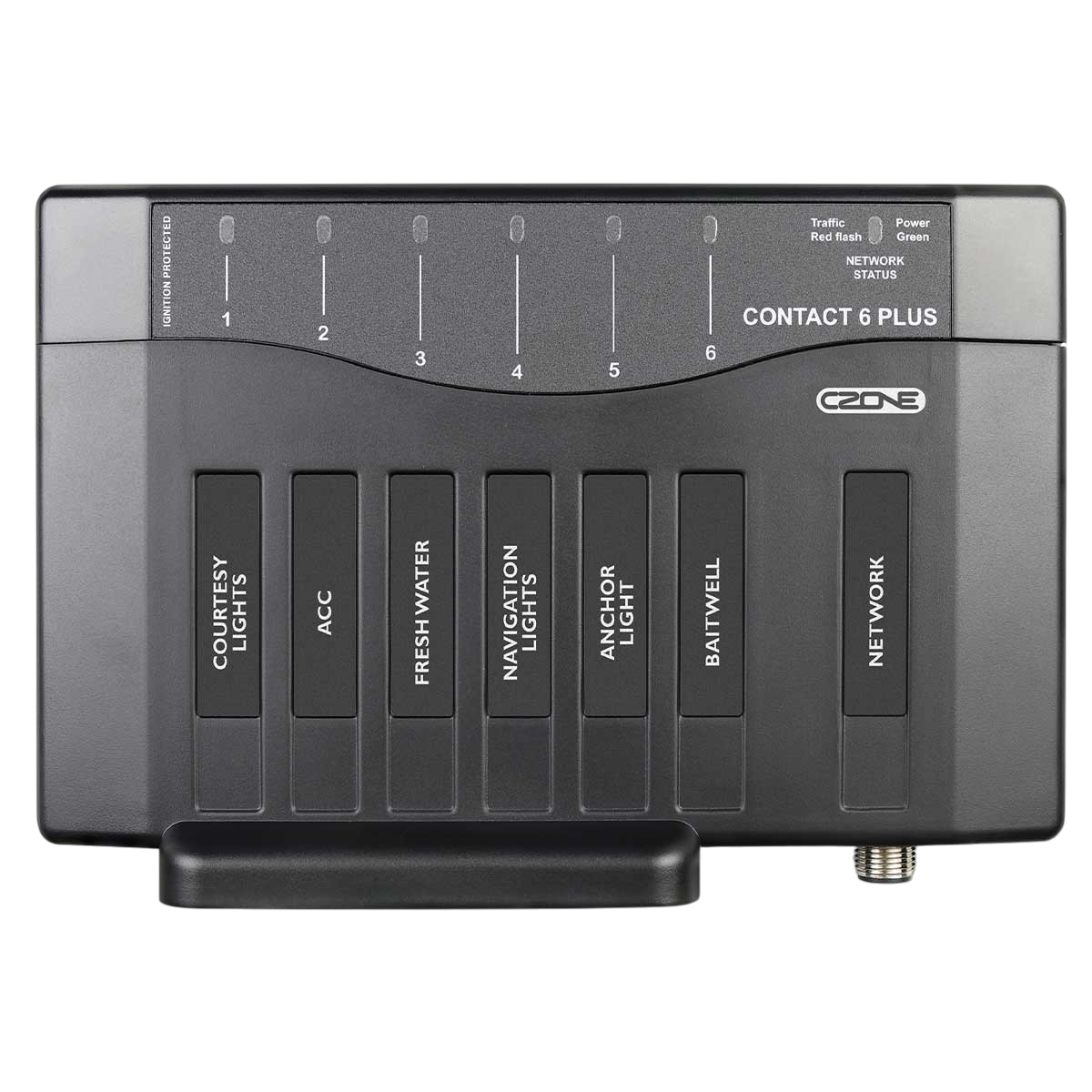

CZone - Contact 6 Plus
Ref.
80-911-0160-00
With well-established Digital Switching CZone technology, the Contact 6 PLUS system offers a robust, cost-effective solution. It features 6 static outputs with 15 A flameproof fuses, with circuit bypass for system redundancy.
Contact 6 PLUS can be integrated into an existing CZone system or installed as a stand-alone unit, in conjunction with CZone waterproof Keypads or compatible multifunction displays (such as Simrad, Lowrance or Garmin).
It also works with leading chartplotter manufacturers, enabling direct control of electrical systems via your display. This includes receiving notifications of error messages and displaying circuit status.
Read more Features
€601.90
Tax included
Public price
€672.00
Price tax excl. / DOM TOM
€501.58
80-911-0160-00
Data sheet
- Number of outputs
- 6
CZone - Contact 6 Plus
Thanks to proven CZone technology, the Contact 6 Plus system is a robust, affordable digital switching solution. It lets you control every configured element (lighting, navigation lights, bilge pumps, mooring, etc.) directly from the multi-function display.
Contact 6 Plus can be networked into an existing CZone system, or installed as a stand-alone unit using CZone waterproof keypads (see remote control) or a compatible multifunction display (Simrad, Lowrance, Garmin...).
Simple installation
High reliability and few connections
6 independent output channels
Ultra-low power consumption
Possibility of adding CZone modules for even greater functionality.
Technical specifications:
Dimensions H x W x D: 1128.5 x 202.5 x 45 mm
Weight: 600 g
NMEA2000 connection: 1 x CAN Micro-C port
Power supply: M6 1/4
Protection rating: IPx5
Power consumption: max. 75 mA
Output cable: 0.5 - 6 mm ( 24 AWG - 8 AWG)
