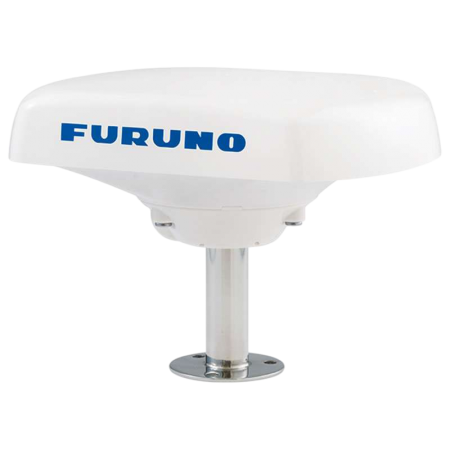

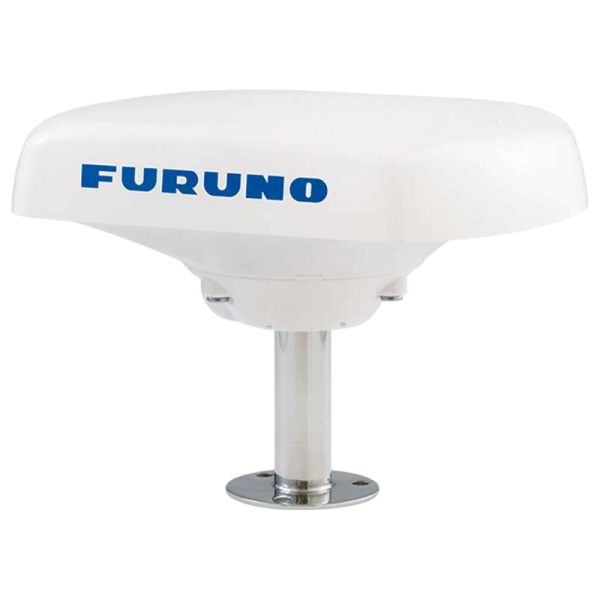

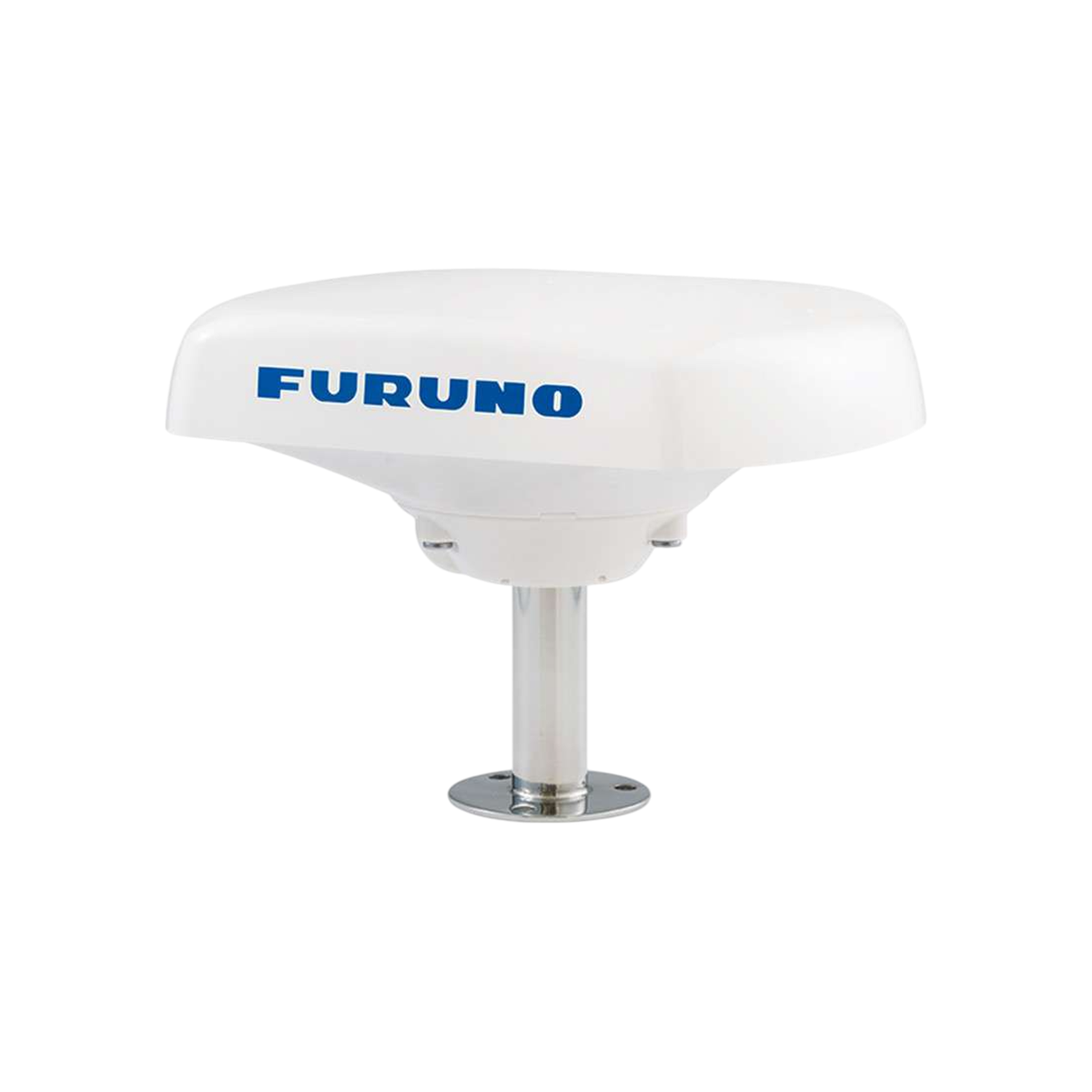

Compass SCX21

4 ANTENNA DESIGN

Traditionally, a Satellite Compass calculates heading using a baseline between two antennas; the four SCX21 antennas can calculate heading information using one of six baselines drawn between the 4 antennas.

The unprecedented design of its 4 antennas makes the SCX21 capable of calculating extremely accurate heading, pitch, roll and swell information.

It's the perfect heading solution for complex ship installations where the view of satellites can sometimes be obstructed.

RELAY CRITICAL DATA

Connect the SCX21 to your existing Furuno devices to learn more about your own vessel and its surroundings. Display critical information on multiple products, including MFD NavNet TZtouch, NAVpilot300, FI70 and GP39.

• 3-axis speed
• Pitch, Roll, Heave
• Rate of turn (RoT)
• Heading (HDG)

+ PRECISION FOR ALL YOUR SENSORS

The SCX21 enhances the performance of onboard equipment such as radar, depth sounder, sonar and autopilot.

Accurate heading information enables your NAVpilot to keep a better course, saving time, fuel and money on every trip.

Meanwhile, accurate pitch, roll and swell information stabilizes the display of numerous echo sounders, enabling precise echo display even in the roughest seas.

RELAY CRITICAL DATA

Improved accuracy when the SCX21 is connected to your Furuno radar, helping to determine your own vessel's movement as well as the movement of others.

Accurate speed and heading data ensure that targets are displayed smoothly and accurately, without the jagged, zigzag appearance common to compasses with a higher degree of deviation.

MORE ACCURATE SOUNDER

Accurate pitch and roll information enables Furuno fishfinders to display a stable image on screen, even in bad weather.

MAIN POINTS :

• Weight: 1kg
• Tracking: 45°/sec
• Water resistance: IP56
• Power supply: 12V
• Relays critical data
• Connection: 1 NMEA0183 port
• Superior accuracy for all your sensors
• Uses four Multi GNSS antennas (GPS, QZSS, GLONASS, Galileo)

BOX CONTENTS :

• 1 - Compass SCX21
• 1 - NMEA cable 12m
• 1 - PDF documentation
