NKE

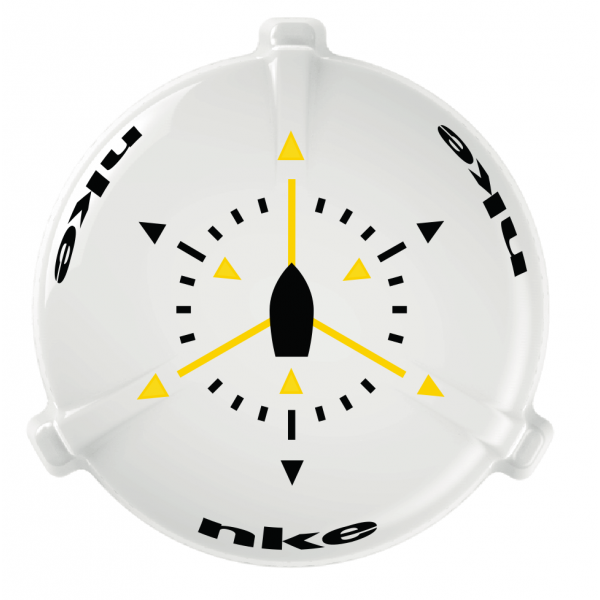

9X compass

Ref. PF000167

The Compas 9X is a precision sensor comparable to an inertial unit, fusing data from accelerometers, gyrometers and magnetometers in real time. It delivers true orientation in 3D space: heading, heel and pitch. Movement and orientation are available at a frequency of 25 Hz.

€1,058.25 Tax included
-10%
€1,180.00
Pay in installments
3x 4x 10x 12x 24x 60x
or pay in
24x 60x
Quantity
Last items in stock
Fast delivery learn more
1058 loyalty points Earn €10.58 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
PF000167

Data sheet

Product type
Compass
Sensor
Compass
Description

NKE - COMPAS 9X - THE ALL-IN-ONE COMPASS

The 9X compass replaces the Regatta compass: more powerful, less expensive and easier to install. The 9X compass connects directly to the BUS. It operates over a wider range of heights, with greater responsiveness. On the other hand, calibration is more demanding, but for better results. Update Multigraphic to at least V2.5 to start calibration.


9-AXIS COMPASS

In pilot mode, compass heading is instantly corrected for boat acceleration. If the installation includes a Gyropilot, combining the pilot (already equipped with a gyrometer) with the 9X Compass improves steering precision.

In regattas, integrated into the Topline bus, it improves the accuracy of true wind angle and speed by correcting wind measurements for the boat's heel. The heel calculation is used to correct the apparent wind speed and therefore all calculations for true wind.

For more information, click on the following link: 9X Compass

MAIN POINTS :

  • Weight: 200g
  • Water resistance: IP67
  • Power consumption: 25mA
  • Dimensions: 78 x 60mm
  • 2-year manufacturer's warranty
  • Vertical bulkhead installation

BOX CONTENTS :

  • 1 - 9X compass
  • 1 - 6m cable
  • 1 - Fixing bracket
  • 1 - PDF documentation

Download

Manuel Compas 9X NKE

Compas 9X installation and operating instructions NKE (FR-EN)

Download (844.22k)
