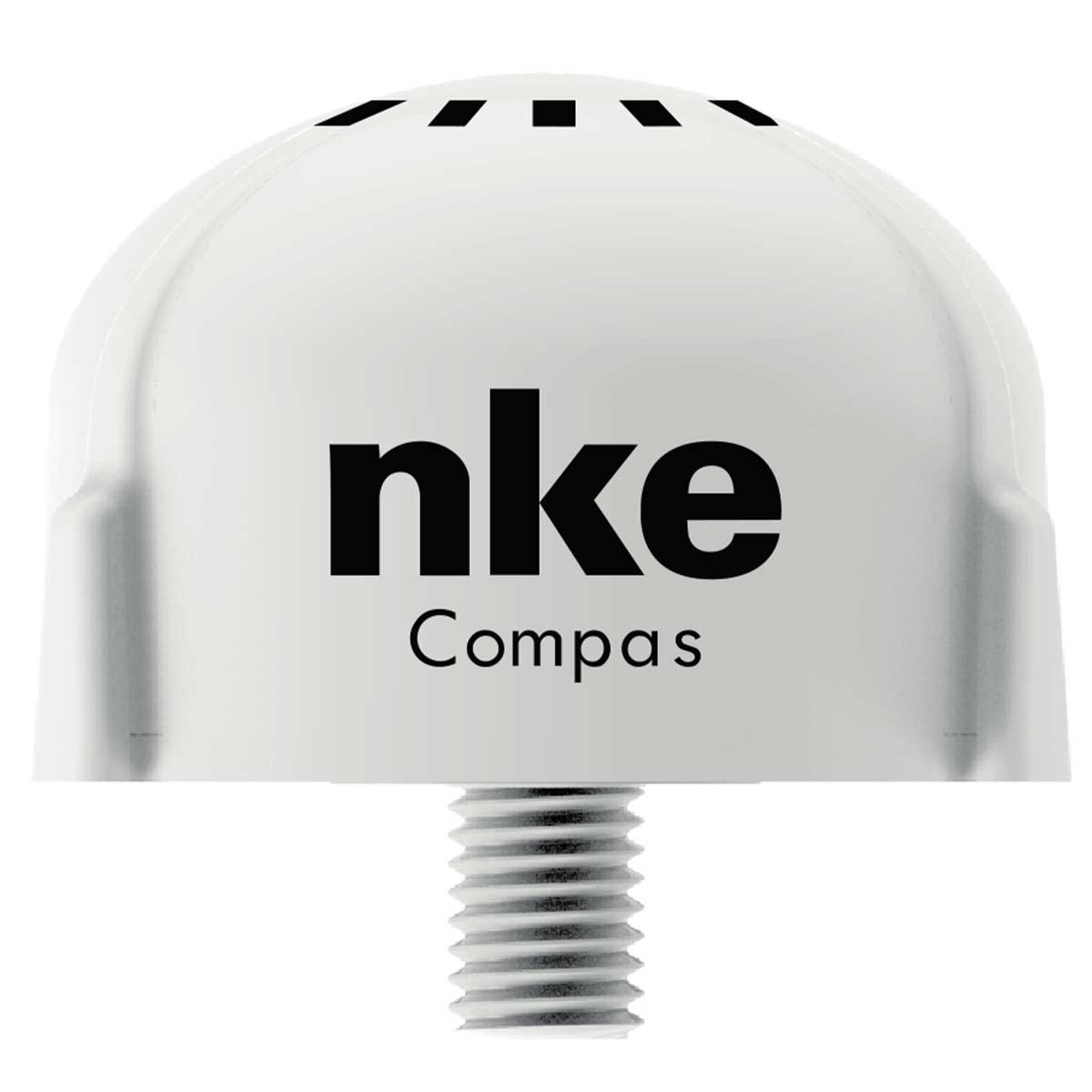

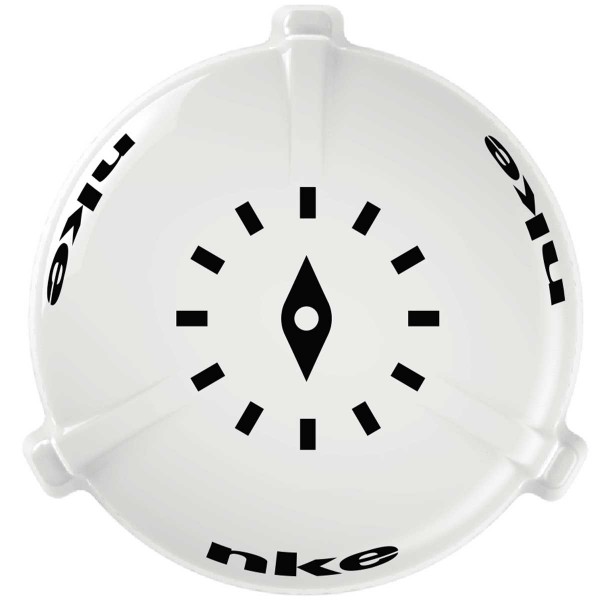

Fluxgate compass

Ref. PF000143

The fluxgate compass from NKE is a sensor for measuring your boat's magnetic heading.

Read more Features
€509.90 Tax included
Public price
€570.00
-10%
🤩 Sales
Public price
€570.00
€474.90
with the code SOLDES25
-16%
Offre valable encore
or pay in
10x 60x
Price tax excl. / DOM TOM €424.92
Quantity
By buying this product you can collect up to 509 loyalty points. Your cart will total 509 points that can be converted into a voucher of €5.09.
PF000143

Data sheet

Product type
Compass
Sensor
Compass
Description

NKE - FLUXGATE COMPASS - THE MAGNETIC HEADING SENSOR NKE

Thanks to a self-compensating curve in 10° steps, you'll get a precise heading. This compass provides the essential basis for calculating true wind direction. It connects to your system's Topline bus.

FLUXGATE COMPASS

If the speedometer and anemometer are connected, they can be used to calculate and display :

  • true wind direction
  • gain on chosen route
  • surface estimate maintenance
  • course and distance to man overboard

Please note

The 90-60-389 interface is required if you don't have a processor.

KEY POINTS

  • Waterproofing: IP67
  • Power supply: 10 to 16VDC
  • Power consumption: 25mA - Resolution: 1°
  • Storage temperature: -20°C to +60°C
  • Operating temperature : -10°C to +50°C

CONTENTS FLUXGATE COMPASS

  • 1 - Fluxgate compass NKE
  • 1 - TOPLINE BUS cable (6m)
  • 1 - Hull grommet
  • 1 - Fixing kit
  • 1 - PDF documentation

Download

Manual NKE Fluxgate Compass

Installation and operating instructions for Fluxgate Compass NKE (FR-EN)

Download (843.8k)
