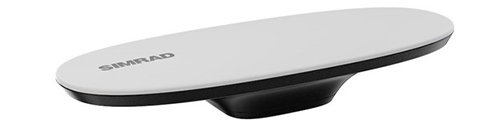

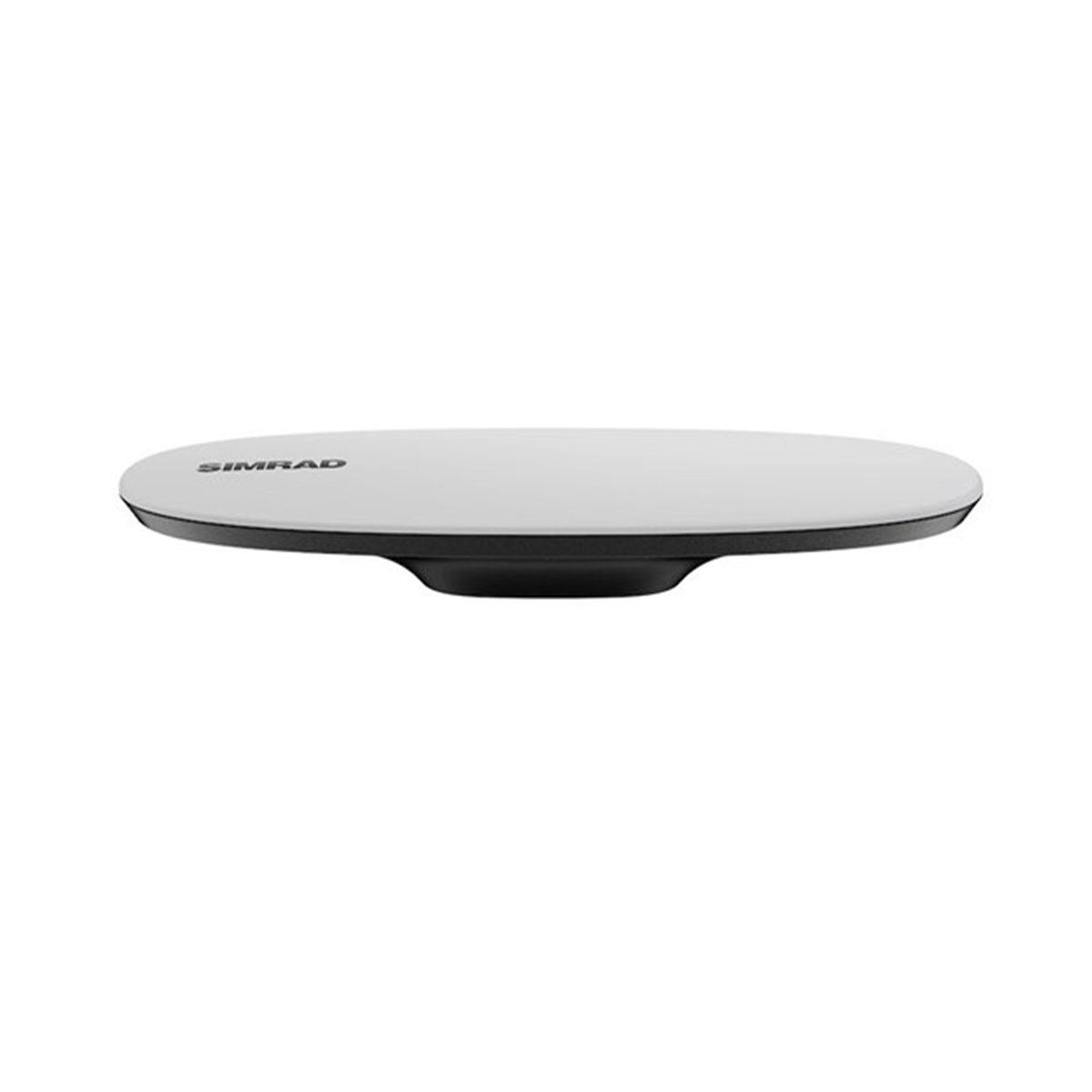

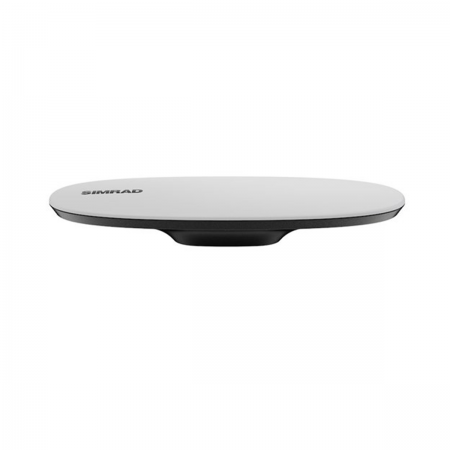

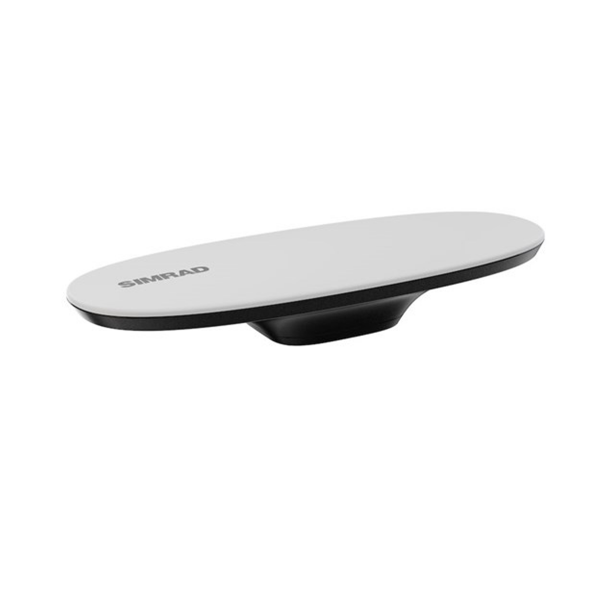

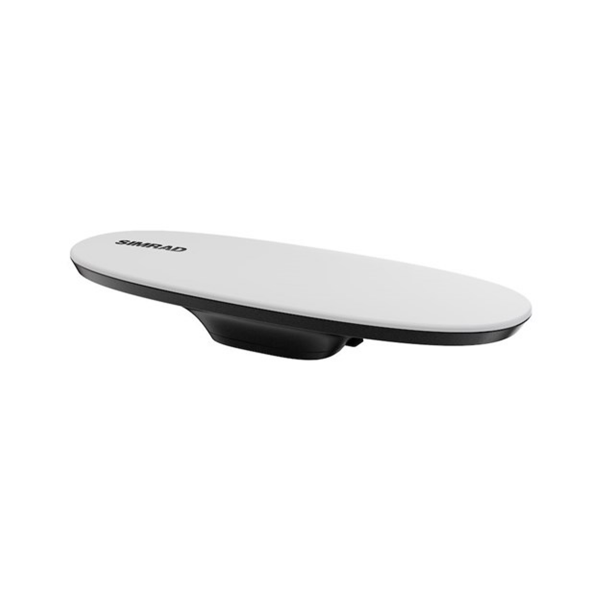

SIMRAD HS65 GNSS COMPASS - - : RELIABLE HEADING FOR UNCOMPROMISED NAVIGATION
The HS65 Simrad is a GNSS compass designed to provide reliable heading information to onboard electronic equipment. It integrates easily into an NMEA 2000 network and enhances the performance of a autopilot, radar overlays, and compatible navigation systems.
Its GNSS technology makes it immune to magnetic interference generated by the boat’s environment. In the event of a temporary signal loss, its backup functions ensure that usable heading data is maintained for connected devices.
|
 |
ACCURATE HEADING EVEN WHEN AT A STANDSTILL
The HS65 provides accurate heading data whether the boat is underway or at rest. Unlike a conventional magnetic compass, it is not affected by metal objects or electromagnetic interference on board.
- Accuracy within 2°
- Stable data whether at a standstill or underway
- Low sensitivity to magnetic disturbances
- Position updated up to 20 times per second
This information helps improve radar overlay, chart display, and course tracking on the autopilot by providing a consistent and responsive data source.
|
|
NAVIGATION SAFETY
The HS65 Simrad features two backup systems to maintain heading information when the GNSS signal becomes unavailable. Dead reckoning initially takes over during temporary outages. If the outage persists, a magnetic backup ensures the continuity of data sent to the network.
- Integrated dead reckoning
- Automatic fallback in case of GNSS signal loss
- Magnetic backup
- Data continuity for connected devices
The HS65 also transmits yaw rate, ground speed, ground track, pitch, and roll to provide a more comprehensive view of real-time navigation.
|
|
|
 |
INTEGRATION WITH THE NMEA 2000 NETWORK

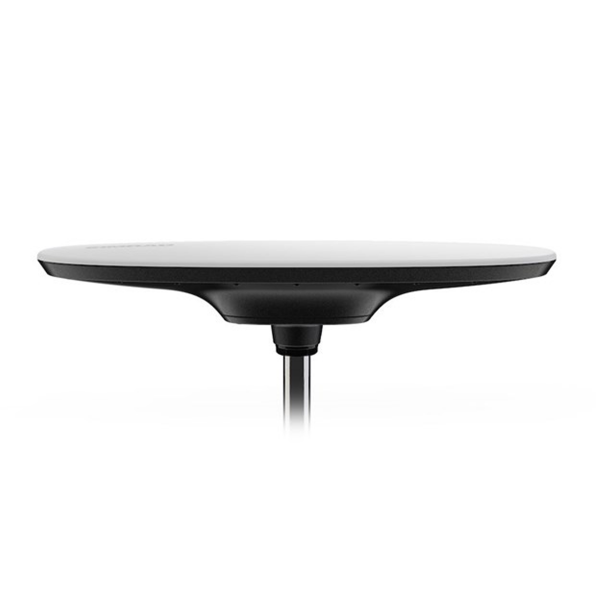

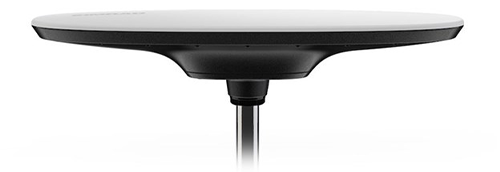

The HS65 can be mounted on a flat surface or on a pole. Its elongated design makes it easy to integrate onto many boats, even when space is limited. Once connected to the NMEA 2000 network, it automatically shares its data with compatible devices.
- NMEA 2000 Network Connection
- Compatible with autopilots Simrad
- Suitable for radar and integrated navigation systems
- Weight: 0.85 kg
With a power consumption of 1.6 W, a 12 V power supply, and IPX6/IPX7 protection, it meets the requirements for onboard electronic installations exposed to marine conditions.
|
|
KEY FEATURES:
- Accurate and stable GNSS positioning
- NMEA 2000 network compatible
- Dimensions: 447 x 165 x 56 mm
- Real-time navigation data
- Compact design and easy installation
- Unaffected by onboard magnetic interference
- Built-in backup system in case of GNSS signal loss
|
BOX CONTENTS:
- 1 - HS65 GNSS Compass Simrad
- 1 - Flat-mount bracket
- 1 -- HS65 GNSS Compass1 T--RD N2K Network T-Connector
- 1 - PDF documentation
|
