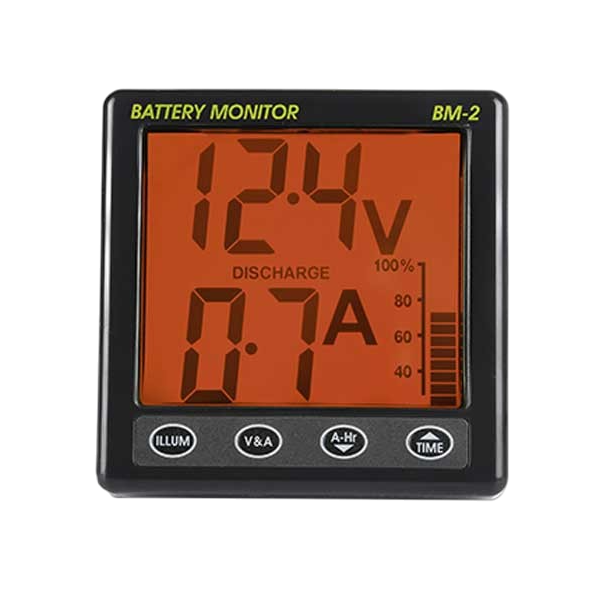

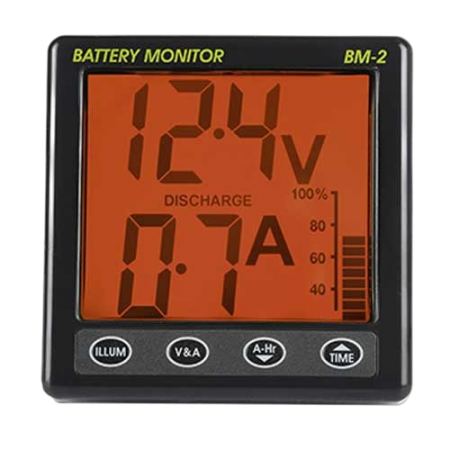

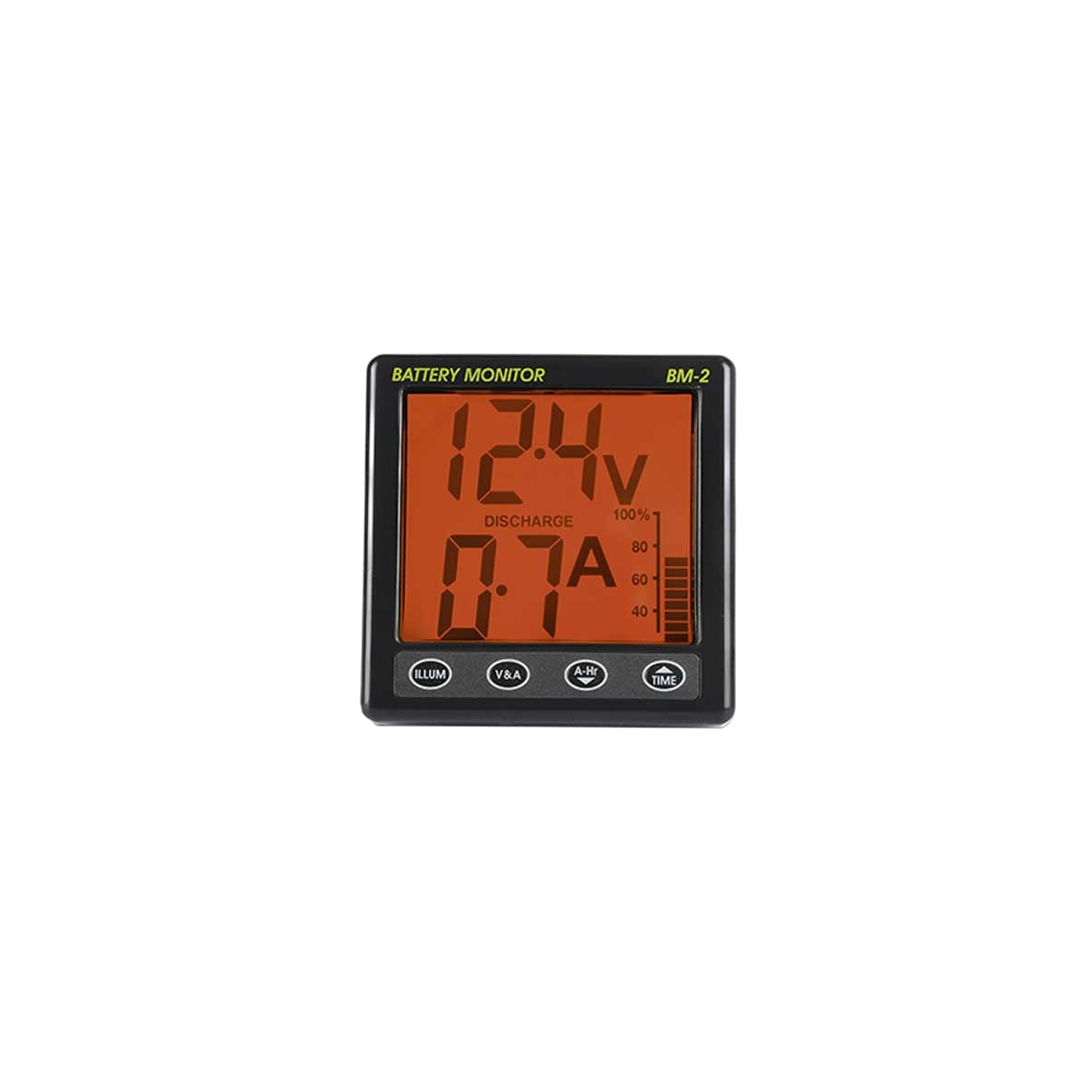

BM-2 Battery Manager

SHUNT BATTERY MANAGER

The battery manager is designed to monitor your battery fleet from 5 to 600 Amps hours. It displays on a large screen the voltage, instantaneous consumption, number of remaining amps, time required for charging or discharging, as well as the level of wear and tear on your batteries.

Connected to your battery or battery bank, it displays the following information directly on its screen:

• voltage
• instantaneous consumption
• remaining amps
• charging and discharging time
• battery wear level

MAIN POINTS

• Consumption 3 mA
• Power supply 8 to 16 volts
• High-contrast LCD display
• Backlight for night vision
• Standard shunt 50 milivolts at 200 Amp
• Charging current 200 Amps maximum
• Battery capacity from 5 to 600 Amps/hour

BOX CONTENTS

• 1 - Battery manager
• 1 - 200 Amps shunt
• 1 - Battery cable (5m)
• 1 - 12-volt power supply
• 1 - Gasket
• 1 - Protective cover
• 1 - Fixing bracket
• 1 - Installation kit
• 1 - Operating CD
